| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR210TRPBF-BE3MOSFET N-CH 200V 2.6A DPAK |
6,000 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 2.6A (Tc) | - | 1.5Ohm @ 1.6A, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR210TRLPBF-BE3MOSFET N-CH 200V 2.6A DPAK |
3,000 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 2.6A (Tc) | - | 1.5Ohm @ 1.6A, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI4151DY-T1-GE3P-CHANNEL 30-V (D-S) MOSFET SO-8 |
2,547 | 1.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 15.2A (Ta), 20.5A (Tc) | 4.5V, 10V | 7.5mOhm @ 10A, 10V | 2.5V @ 250µA | 87 nC @ 10 V | ±25V | 3250 pF @ 15 V | - | 3.1W (Ta), 5.6W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SQ4080EY-T1_BE3N-CHANNEL 150-V (D-S) 175C MOSFE |
2,500 | 1.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 18A (Tc) | 10V | 85mOhm @ 10A, 10V | 4V @ 250µA | 33 nC @ 10 V | ±20V | 1590 pF @ 75 V | - | 7.1W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SIRC16DP-T1-RE3N-CHANNEL 25-V (D-S) MOSFET W/SC |
5,900 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 57A (Ta), 60A (Tc) | 4.5V, 10V | 0.96mOhm @ 15A, 10V | 2.4V @ 250µA | 105 nC @ 10 V | +20V, -16V | 5150 pF @ 10 V | Schottky Diode (Body) | 5W (Ta), 54.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR110TRLPBF-BE3MOSFET N-CH 100V 4.3A DPAK |
3,000 | 1.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.3A (Tc) | - | 540mOhm @ 2.6A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
SIHFU310-GE3MOSFET N-CHANNEL 400V |
2,970 | 0.72 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 1.7A (Tc) | 10V | 3.6Ohm @ 1A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 170 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFR120TRRPBF-BE3MOSFET N-CH 100V 7.7A DPAK |
4,140 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.7A (Tc) | - | 270mOhm @ 4.6A, 10V | 4V @ 250µA | 16 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR120TRLPBF-BE3MOSFET N-CH 100V 7.7A DPAK |
3,000 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.7A (Tc) | - | 270mOhm @ 4.6A, 10V | 4V @ 250µA | 16 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR014TRLPBF-BE3MOSFET N-CH 60V 7.7A DPAK |
3,000 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.7A (Tc) | - | 200mOhm @ 4.6A, 10V | 4V @ 250µA | 11 nC @ 10 V | ±20V | 300 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SQD10N30-330H_4GE3N-CHANNEL 300-V (D-S) 175C MOSFE |
4,678 | 1.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 10A (Tc) | 10V | 330mOhm @ 14A, 10V | 4.4V @ 250µA | 47 nC @ 10 V | ±30V | 2190 pF @ 25 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFR110PBF-BE3MOSFET N-CH 100V 4.3A DPAK |
2,980 | 1.05 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.3A (Tc) | - | 540mOhm @ 2.6A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
SIHD5N80AE-GE3E SERIES POWER MOSFET DPAK (TO-2 |
2,893 | 1.14 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.4A (Tc) | 10V | 1.35Ohm @ 1.5A, 10V | 4V @ 250µA | 16.5 nC @ 10 V | ±30V | 321 pF @ 100 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRF710PBF-BE3MOSFET N-CH 400V 2A TO220AB |
2,498 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 2A (Tc) | - | 3.6Ohm @ 1.2A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 170 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIR510DP-T1-RE3N-CHANNEL 100 V (D-S) MOSFET POW |
5,994 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen V | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 31A (Ta), 126A (Tc) | 7.5V, 10V | 3.6mOhm @ 20A, 10V | 4V @ 250µA | 81 nC @ 10 V | ±20V | 4980 pF @ 50 V | - | 6.25W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFZ14PBF-BE3MOSFET N-CH 60V 10A TO220AB |
1,978 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Tc) | - | 200mOhm @ 6A, 10V | 4V @ 250µA | 11 nC @ 10 V | ±20V | 300 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

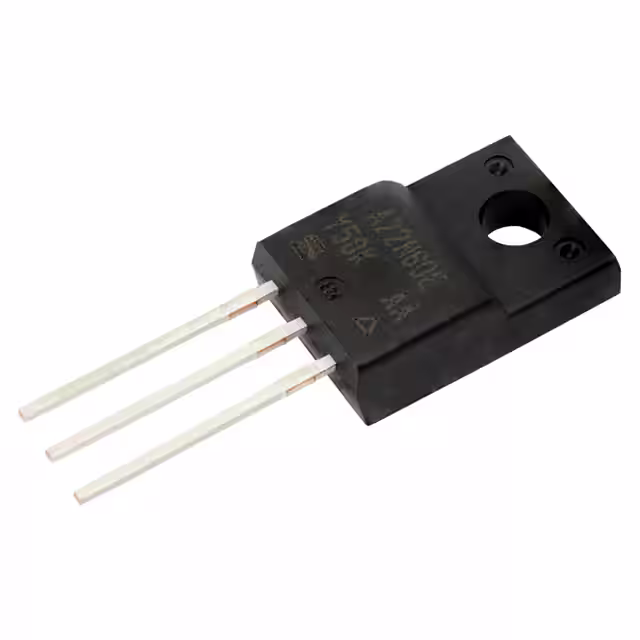

SIHA5N80AE-GE3E SERIES POWER MOSFET THIN-LEAD |
1,037 | 1.45 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 3A (Tc) | 10V | 1.35Ohm @ 1.5A, 10V | 4V @ 250µA | 16.5 nC @ 10 V | ±30V | 321 pF @ 100 V | - | 29W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFR214PBF-BE3MOSFET N-CH 250V 2.2A DPAK |
3,000 | 1.52 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 2.2A (Tc) | - | 2Ohm @ 1.3A, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRL520PBF-BE3MOSFET N-CH 100V 9.2A TO220AB |
1,359 | 1.53 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.2A (Tc) | - | 270mOhm @ 5.5A, 5V | 2V @ 250µA | 12 nC @ 5 V | ±10V | 490 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFR1N60APBF-BE3MOSFET N-CH 600V 1.4A DPAK |
3,000 | 1.62 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.4A (Tc) | - | 7Ohm @ 840mA, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 229 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
