| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

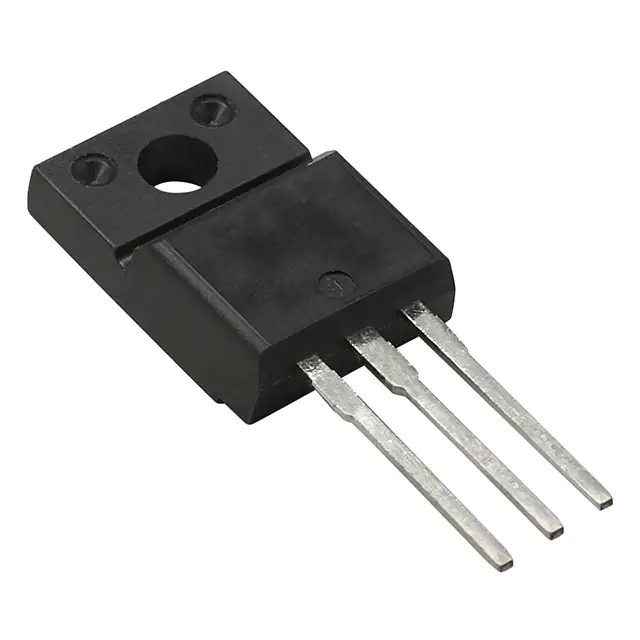

SIHF15N60E-GE3MOSFET N-CH 600V 15A TO220 |
818 | 3.24 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 280mOhm @ 8A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±30V | 1350 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFIB7N50APBFMOSFET N-CH 500V 6.6A TO220-3 |
953 | 3.29 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 6.6A (Tc) | 10V | 520mOhm @ 4A, 10V | 4V @ 250µA | 52 nC @ 10 V | ±30V | 1423 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHP25N50E-GE3MOSFET N-CH 500V 26A TO220AB |
104 | 3.36 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 145mOhm @ 12A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1980 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRL640SPBFMOSFET N-CH 200V 17A D2PAK |
3,413 | 2.41 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 17A (Tc) | 4V, 5V | 180mOhm @ 10A, 5V | 2V @ 250µA | 66 nC @ 5 V | ±10V | 1800 pF @ 25 V | - | 3.1W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFI9640GPBFMOSFET P-CH 200V 6.1A TO220-3 |
569 | 3.47 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 6.1A (Tc) | 10V | 500mOhm @ 3.7A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SUM90N03-2M2P-E3MOSFET N-CH 30V 90A TO263 |
2,950 | 3.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 2.2mOhm @ 32A, 10V | 2.5V @ 250µA | 257 nC @ 10 V | ±20V | 12065 pF @ 15 V | - | 3.75W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRLI640GPBFMOSFET N-CH 200V 9.9A TO220-3 |
912 | 3.50 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.9A (Tc) | 4V, 5V | 180mOhm @ 5.9A, 5V | 2V @ 250µA | 66 nC @ 10 V | ±10V | 1800 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SUP50010E-GE3MOSFET N-CH 60V 150A TO220AB |
495 | 3.52 |
RFQ |
Datasheet |
Tube | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 150A (Tc) | 7.5V, 10V | 2mOhm @ 30A, 10V | 4V @ 250µA | 212 nC @ 10 V | ±20V | 10895 pF @ 30 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHG186N60EF-GE3MOSFET N-CH 600V 8.4A TO247AC |
453 | 3.65 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 8.4A (Tc) | 10V | 193mOhm @ 9.5A, 10V | 5V @ 250µA | 32 nC @ 10 V | ±30V | 1081 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFB13N50APBFMOSFET N-CH 500V 14A TO220AB |
358 | 3.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 450mOhm @ 8.4A, 10V | 4V @ 250µA | 81 nC @ 10 V | ±30V | 1910 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFS9N60APBFMOSFET N-CH 600V 9.2A D2PAK |
1,000 | 3.67 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.2A (Tc) | 10V | 750mOhm @ 5.5A, 10V | 4V @ 250µA | 49 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHA11N80E-GE3MOSFET N-CH 800V 12A TO220 |
446 | 3.71 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 12A (Tc) | 10V | 440mOhm @ 5.5A, 10V | 4V @ 250µA | 88 nC @ 10 V | ±30V | 1670 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF644SPBFMOSFET N-CH 250V 14A D2PAK |
176 | 3.76 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 280mOhm @ 8.4A, 10V | 4V @ 250µA | 68 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.1W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFZ48RSPBFMOSFET N-CH 60V 50A TO263 |
992 | 3.79 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 18mOhm @ 43A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SIHG25N40D-GE3MOSFET N-CH 400V 25A TO247AC |
127 | 3.88 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 25A (Tc) | 10V | 170mOhm @ 13A, 10V | 5V @ 250µA | 88 nC @ 10 V | ±30V | 1707 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG180N60E-GE3MOSFET N-CH 600V 19A TO247AC |
339 | 3.93 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 19A (Tc) | 10V | 180mOhm @ 9.5A, 10V | 5V @ 250µA | 33 nC @ 10 V | ±30V | 1085 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHA105N60EF-GE3MOSFET N-CH 600V 29A TO220 |
1,096 | 3.94 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 102mOhm @ 13A, 10V | 5V @ 250µA | 53 nC @ 10 V | ±30V | 1804 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFIBC40GPBFMOSFET N-CH 600V 3.5A TO220-3 |
133 | 4.08 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.5A (Tc) | 10V | 1.2Ohm @ 2.1A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHB21N60EF-GE3MOSFET N-CH 600V 21A TO263AB |
366 | 4.38 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 176mOhm @ 11A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±30V | 2030 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFP150PBFMOSFET N-CH 100V 41A TO247-3 |
680 | 4.47 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 41A (Tc) | 10V | 55mOhm @ 25A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±20V | 2800 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
