| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

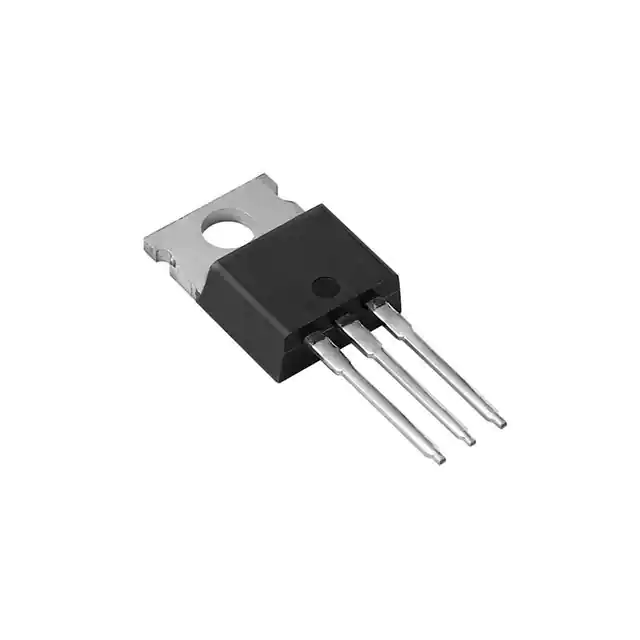

IRL530PBF-BE3MOSFET N-CH 100V 15A TO220AB |
1,305 | 1.77 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | - | 160mOhm @ 9A, 5V | 2V @ 250µA | 28 nC @ 5 V | ±10V | 930 pF @ 25 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRF730APBF-BE3MOSFET N-CH 400V 5.5A TO220AB |
1,672 | 2.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 5.5A (Tc) | - | 1Ohm @ 3.3A, 10V | 4.5V @ 250µA | 22 nC @ 10 V | ±30V | 600 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHP21N80AEF-GE3E SERIES POWER MOSFET WITH FAST |
1,015 | 3.00 |
RFQ |
Datasheet |
Bulk | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 16.3A (Tc) | 10V | 250mOhm @ 8.5A, 10V | 4V @ 250µA | 71 nC @ 10 V | ±30V | 1511 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFZ44PBF-BE3MOSFET N-CH 60V 50A TO220AB |
1,716 | 2.14 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | - | 28mOhm @ 31A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

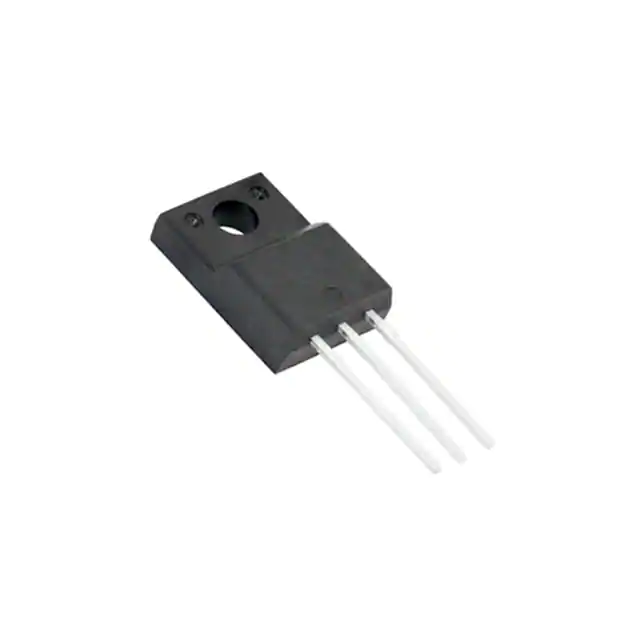

SIHA22N60AE-GE3N-CHANNEL 600V |
1,000 | 3.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 8A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 96 nC @ 10 V | ±30V | 1451 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF9540PBF-BE3MOSFET P-CH 100V 19A TO220AB |
3,908 | 2.25 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | - | 200mOhm @ 11A, 10V | 4V @ 250µA | 61 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

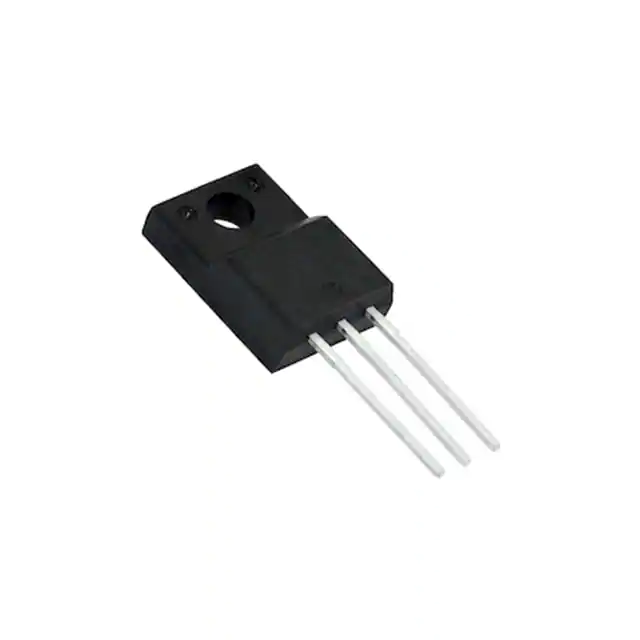

IRLI540GPBFMOSFET N-CH 100V 17A TO220-3 |
507 | 2.26 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 17A (Tc) | 4V, 5V | 77mOhm @ 10A, 5V | 2V @ 250µA | 64 nC @ 5 V | ±10V | 2200 pF @ 25 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHP15N50E-BE3N-CHANNEL 500V |
1,988 | 2.30 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14.5A (Tc) | 10V | 280mOhm @ 7.5A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±30V | 1162 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHA21N60EF-GE3N-CHANNEL 600V |
1,000 | 4.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 176mOhm @ 11A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±30V | 2030 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFBC40PBF-BE3MOSFET N-CH 600V 6.2A TO220AB |
1,029 | 2.52 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Tc) | - | 1.2Ohm @ 3.7A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHP15N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
2,999 | 2.72 |
RFQ |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 13A (Tc) | 10V | 350mOhm @ 6.5A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±30V | 1128 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
SIHA25N60EFL-GE3N-CHANNEL 600V |
1,000 | 4.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 146mOhm @ 12.5A, 10V | 5V @ 250µA | 75 nC @ 10 V | ±30V | 2274 pF @ 100 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHA17N80E-GE3N-CHANNEL 800V |
1,000 | 5.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 250µA | 122 nC @ 10 V | ±30V | 2408 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFB9N65APBF-BE3MOSFET N-CH 650V 8.5A TO220AB |
963 | 2.98 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.5A (Tc) | - | 930mOhm @ 5.1A, 10V | 4V @ 250µA | 48 nC @ 10 V | ±30V | 1417 pF @ 25 V | - | 167W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHP15N60E-BE3N-CHANNEL 600V |
1,000 | 3.09 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 280mOhm @ 8A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±30V | 1350 pF @ 100 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF740LCPBF-BE3MOSFET N-CH 400V 10A TO220AB |
987 | 3.17 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 10A (Tc) | - | 550mOhm @ 6A, 10V | 4V @ 250µA | 39 nC @ 10 V | ±30V | 1100 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHA21N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
975 | 3.22 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 250mOhm @ 8.5A, 10V | 4V @ 250µA | 71 nC @ 10 V | ±30V | 1511 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHD186N60EF-GE3MOSFET N-CH 600V 19A DPAK |
6,000 | 3.23 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 19A (Tc) | 10V | 201mOhm @ 9.5A, 10V | 5V @ 250µA | 32 nC @ 10 V | ±30V | 1118 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIHP23N60E-BE3N-CHANNEL 600V |
1,000 | 3.39 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 158mOhm @ 12A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±30V | 2418 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
SIHB120N60E-T1-GE3N-CHANNEL 600V |
800 | 5.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 120mOhm @ 12A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1562 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
