| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIHA22N60E-E3MOSFET N-CH 600V 21A TO220 |
3,011 | 4.08 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHG22N50D-E3MOSFET N-CH 500V 22A TO247AC |
2,654 | 4.16 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 230mOhm @ 11A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 1938 pF @ 100 V | - | 312W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHP21N60EF-GE3MOSFET N-CH 600V 21A TO220AB |
3,058 | 4.19 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 176mOhm @ 11A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±30V | 2030 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG22N60AE-GE3MOSFET N-CH 600V 20A TO247AC |
3,471 | 4.20 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 96 nC @ 10 V | ±30V | 1451 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHP22N60E-GE3MOSFET N-CH 600V 21A TO220AB |
2,432 | 4.23 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFIB6N60APBFMOSFET N-CH 600V 5.5A TO220-3 |
3,456 | 4.37 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.5A (Tc) | 10V | 750mOhm @ 3.3A, 10V | 4V @ 250µA | 49 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFBC40SPBFMOSFET N-CH 600V 6.2A D2PAK |
2,623 | 4.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Tc) | 10V | 1.2Ohm @ 3.7A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.1W (Ta), 130W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIHG22N60E-E3MOSFET N-CH 600V 21A TO247AC |
2,864 | 4.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG22N60E-GE3MOSFET N-CH 600V 21A TO247AC |
2,453 | 4.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG16N50C-E3MOSFET N-CH 500V 16A TO247AC |
2,193 | 4.81 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 380mOhm @ 8A, 10V | 5V @ 250µA | 68 nC @ 10 V | ±30V | 1900 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHP21N65EF-GE3MOSFET N-CH 650V 21A TO220AB |
3,319 | 4.88 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 106 nC @ 10 V | ±20V | 2322 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG23N60E-GE3MOSFET N-CH 600V 23A TO247AC |
2,601 | 4.89 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 158mOhm @ 12A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±30V | 2418 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TA) | Through Hole |
|
|
SIHP25N60EFL-GE3MOSFET N-CH 600V 25A TO220AB |
2,137 | 4.96 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 146mOhm @ 12.5A, 10V | 5V @ 250µA | 75 nC @ 10 V | ±30V | 2274 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SQM35N30-97_GE3MOSFET N-CH 300V 35A TO263 |
2,882 | 4.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 35A (Tc) | 10V | 97mOhm @ 10A, 10V | 3.5V @ 250µA | 130 nC @ 10 V | ±20V | 5650 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SIHW21N80AE-GE3MOSFET N-CH 800V 17.4A TO247AD |
3,002 | 5.01 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17.4A (Tc) | 10V | 235mOhm @ 11A, 10V | 4V @ 250µA | 72 nC @ 10 V | ±30V | 1388 pF @ 100 V | - | 32W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

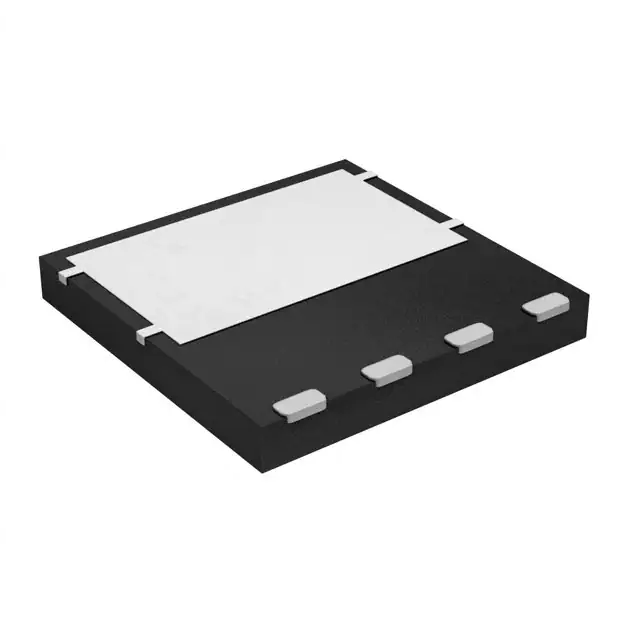

SIHH20N50E-T1-GE3MOSFET N-CH 500V 22A PPAK 8 X 8 |
3,026 | 5.08 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 147mOhm @ 10A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±30V | 2063 pF @ 100 V | - | 174W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIHA17N80E-E3MOSFET N-CHANNEL 800V 15A TO220 |
2,313 | 5.09 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 15A (Tc) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 250µA | 122 nC @ 10 V | ±30V | 2408 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFPF30PBFMOSFET N-CH 900V 3.6A TO247-3 |
3,410 | 5.13 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3.6A (Tc) | 10V | 3.7Ohm @ 2.2A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFP048RPBFMOSFET N-CH 60V 70A TO247-3 |
2,113 | 5.30 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 70A (Tc) | 10V | 18mOhm @ 44A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SIHG25N60EFL-GE3MOSFET N-CH 600V 25A TO247AC |
3,241 | 5.44 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 146mOhm @ 12.5A, 10V | 5V @ 250µA | 75 nC @ 10 V | ±30V | 2274 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
