| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFS11N50ATRRPMOSFET N-CH 500V 11A D2PAK |
3,119 | 3.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 520mOhm @ 6.6A, 10V | 4V @ 250µA | 52 nC @ 10 V | ±30V | 1423 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRF820ALPBFMOSFET N-CH 500V 2.5A I2PAK |
2,997 | 1.94 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.5A (Tc) | 10V | 3Ohm @ 1.5A, 10V | 4.5V @ 250µA | 17 nC @ 10 V | ±30V | 340 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFD420PBFMOSFET N-CH 500V 370MA 4DIP |
2,874 | 1.95 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 370mA (Ta) | 10V | 3Ohm @ 220mA, 10V | 4V @ 250µA | 24 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|

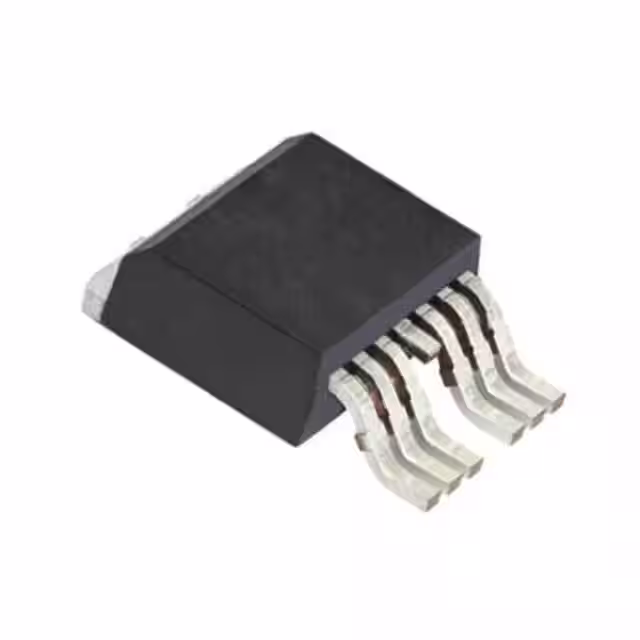

SQM40014EM_GE3MOSFET N-CH 40V 200A TO263-7 |
2,819 | 3.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 200A (Tc) | 10V | 1mOhm @ 35A, 10V | 3.5V @ 250µA | 250 nC @ 10 V | ±20V | 15525 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SQ4840EY-T1_GE3MOSFET N-CH 40V 20.7A 8SO |
3,191 | 3.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 20.7A (Tc) | 4.5V, 10V | 9mOhm @ 14A, 10V | 2.5V @ 250µA | 62 nC @ 10 V | ±20V | 2440 pF @ 20 V | - | 7.1W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SQ4840EY-T1_BE3MOSFET N-CH 40V 20.7A 8SOIC |
3,498 | 3.46 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 20.7A (Tc) | 4.5V, 10V | 9mOhm @ 14A, 10V | 2.5V @ 250µA | 62 nC @ 10 V | ±20V | 2440 pF @ 20 V | - | 7.1W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
IRFR430APBFMOSFET N-CH 500V 5A DPAK |
3,667 | 2.00 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 1.7Ohm @ 3A, 10V | 4.5V @ 250µA | 24 nC @ 10 V | ±30V | 490 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SUM70040M-GE3MOSFET N-CH 100V 120A TO263-7 |
3,087 | 3.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 7.5V, 10V | 3.8mOhm @ 20A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 5100 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRLIZ14GPBFMOSFET N-CH 60V 8A TO220-3 |
2,433 | 2.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Tc) | 4V, 5V | 200mOhm @ 4.8A, 5V | 2V @ 250µA | 8.4 nC @ 5 V | ±10V | 400 pF @ 25 V | - | 27W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SIHB6N65E-GE3MOSFET N-CH 650V 7A D2PAK |
2,903 | 2.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 600mOhm @ 3A, 10V | 4V @ 250µA | 48 nC @ 10 V | ±30V | 820 pF @ 100 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
SIDR610DP-T1-GE3MOSFET N-CH 200V 8.9A/39.6A PPAK |
3,244 | 3.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 8.9A (Ta), 39.6A (Tc) | 7.5V, 10V | 31.9mOhm @ 10A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 1380 pF @ 100 V | - | 6.25W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR9024PBFMOSFET P-CH 60V 8.8A DPAK |
1,800 | 2.03 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 8.8A (Tc) | 10V | 280mOhm @ 5.3A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHD9N60E-GE3MOSFET N-CH 600V 9A DPAK |
2,082 | 2.04 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 368mOhm @ 4.5A, 10V | 4.5V @ 250µA | 52 nC @ 10 V | ±30V | 778 pF @ 100 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF840ASTRRPBFMOSFET N-CH 500V 8A D2PAK |
2,678 | 3.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±30V | 1018 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIE810DF-T1-GE3MOSFET N-CH 20V 60A 10POLARPAK |
3,679 | 3.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 60A (Tc) | 2.5V, 10V | 1.4mOhm @ 25A, 10V | 2V @ 250µA | 300 nC @ 10 V | ±12V | 13000 pF @ 10 V | - | 5.2W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHA6N65E-E3MOSFET N-CHANNEL 650V 7A TO220 |
2,080 | 2.13 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 600mOhm @ 3A, 10V | 4V @ 250µA | 48 nC @ 10 V | ±30V | 1640 pF @ 100 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF9510SPBFMOSFET P-CH 100V 4A D2PAK |
3,705 | 2.14 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 4A (Tc) | 10V | 1.2Ohm @ 2.4A, 10V | 4V @ 250µA | 8.7 nC @ 10 V | ±20V | 200 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SIHB12N60E-GE3MOSFET N-CH 600V 12A D2PAK |
3,733 | 2.17 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 58 nC @ 10 V | ±30V | 937 pF @ 100 V | - | 147W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHP7N60E-GE3MOSFET N-CH 600V 7A TO220AB |
2,037 | 2.19 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±30V | 680 pF @ 100 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SQM200N04-1M7L_GE3MOSFET N-CH 40V 200A TO263-7 |
3,104 | 3.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 200A (Tc) | 4.5V, 10V | 1.7mOhm @ 30A, 10V | 2.5V @ 250µA | 291 nC @ 10 V | ±20V | 11168 pF @ 20 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
