| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC2E-HP-DC12V-FRELAY GEN PURPOSE DPDT 3A 12V |
2,273 | 0.00 |
RFQ |
Datasheet |
Bulk | HCE | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
HC2-H-AC200V-FRELAY GEN PURPOSE DPDT 7A 200V |
3,251 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Socketable | 200VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 6 mA | Non Latching | - | Plug In | - | - | 160 VAC | 60 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
HC2K-DC12V-FRELAY GEN PURPOSE DPDT 3A 12V |
3,439 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 100 mA | Latching, Dual Coil | - | Plug In | - | - | 9.6 VDC | - | 20 ms | 50 ms | -40°C ~ 50°C | Silver Alloy, Cadmium Free |
|
|
HC3-HL-AC115V-FRELAY GEN PURPOSE 3PDT 7A 115V |
3,440 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 11.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 92 VAC | 34.5 VAC | 10 ms | 10 ms | -50°C ~ 60°C | Silver Alloy, Cadmium Free |
|
HL1-H-AC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
2,885 | 0.00 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Socketable | 24VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 50 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
HL1-HP-AC240V-FRELAY GEN PURPOSE SPDT 15A 240V |
2,103 | 0.00 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Through Hole | 240VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 5 mA | Non Latching | - | PC Pin | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL1-HP-DC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
3,859 | 0.00 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 37 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|

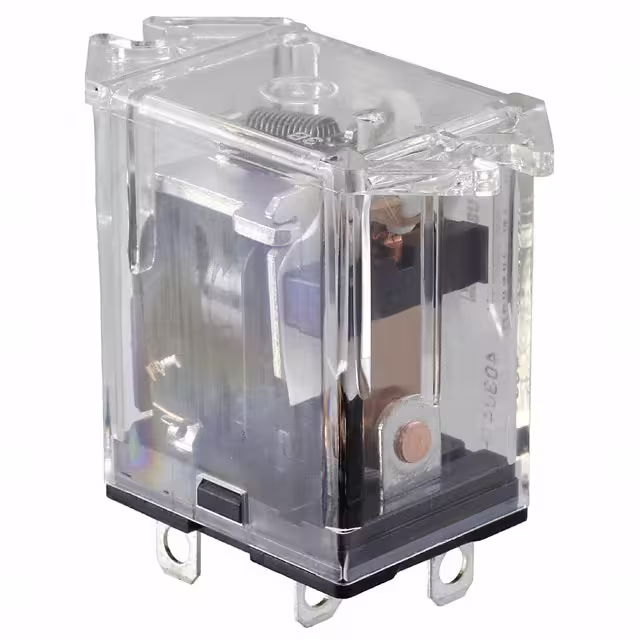

HL1-HTM-AC120V-FRELAY GEN PURPOSE SPDT 15A 120V |
2,988 | 0.00 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 10 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 96 VAC | 36 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|

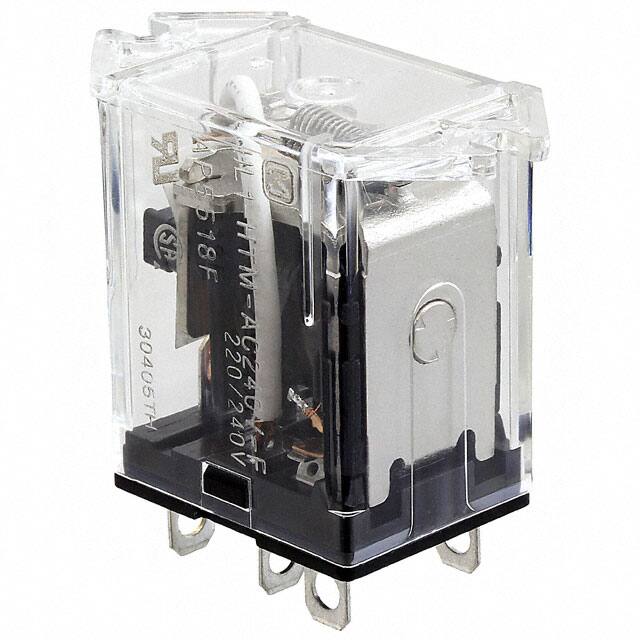

HL1-HTM-AC240V-FRELAY GEN PURPOSE SPDT 15A 240V |
3,361 | 0.00 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Chassis Mount | 240VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 5 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 192 VAC | 72 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL2-H-DC110V-FRELAY GEN PURPOSE DPDT 10A 110V |
3,840 | 0.00 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 10 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 88 VDC | 11 VDC | 10 ms | 5 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|

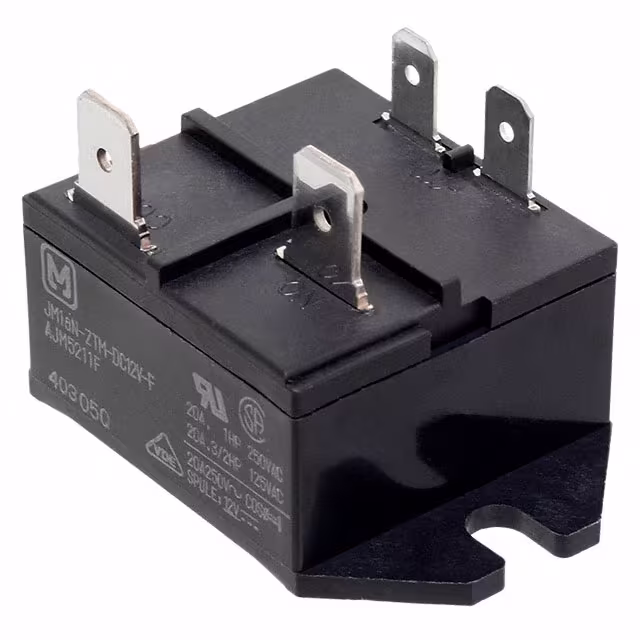

JM1AN-ZTM-DC12V-FRELAY GEN PURPOSE SPST 20A 12V |
3,119 | 0.00 |
RFQ |
Datasheet |
Tray | JM | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 75 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
APF10205RELAY GEN PURPOSE SPST 6A 5V |
2,302 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 34 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF10206RELAY GEN PURPOSE SPST 6A 6V |
3,887 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 28.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF10212RELAY GEN PURPOSE SPST 6A 12V |
2,531 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 14.2 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF30205RELAY GEN PURPOSE SPDT 6A 5V |
2,993 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 5VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 34 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF30318RELAY GEN PURPOSE SPDT 6A 18V |
3,374 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 18VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 9.4 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|

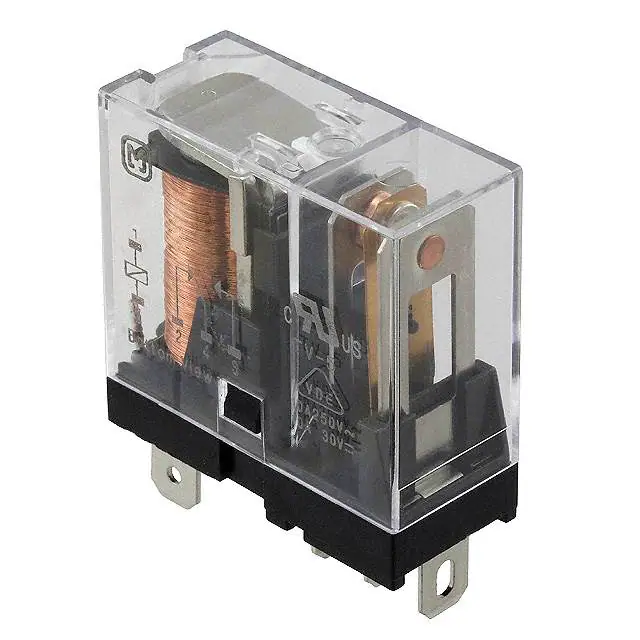

AHN12005RELAY GEN PURPOSE SPDT 16A 5V |
3,889 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 5VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 106 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 50°C | Silver Nickel (AgNi) |
|
|
AHN12212RELAY GEN PURPOSE SPDT 16A 12V |
3,325 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 44.4 mA | Non Latching | Diode | Plug In | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 20 ms | -40°C ~ 50°C | Silver Tin Oxide (AgSnO) |
|
AHN21012NRELAY GEN PURPOSE DPDT 5A 12V |
2,959 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN21024NRELAY GEN PURPOSE DPDT 5A 24V |
2,818 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 37.5 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
