| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC3-HTM-DC12V-FRELAY GEN PURPOSE 3PDT 7A 12V |
2,622 | 0.00 |
RFQ |
Datasheet |
Tray | HC | Obsolete | Chassis Mount | 12VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC3-HTM-DC24V-FRELAY GEN PURPOSE 3PDT 7A 24V |
2,359 | 0.00 |
RFQ |
Datasheet |
Tray | HC | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 37 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC3-HTM-DC48V-FRELAY GEN PURPOSE 3PDT 7A 48V |
3,929 | 0.00 |
RFQ |
Datasheet |
Tray | HC | Obsolete | Chassis Mount | 48VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 18.5 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC3-HTM-DC6V-FRELAY GEN PURPOSE 3PDT 7A 6V |
2,567 | 0.00 |
RFQ |
Datasheet |
Tray | HC | Obsolete | Chassis Mount | 6VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 150 mA | Non Latching | - | Plug In | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|

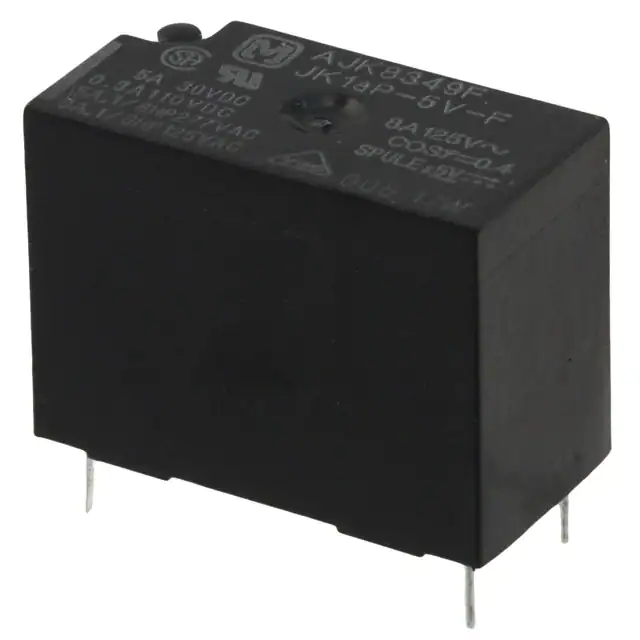

JK1AP-5V-FRELAY GEN PURPOSE SPST 8A 5V |
3,048 | 0.00 |
RFQ |
Datasheet |
Tube | JK | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 110VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.25 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy |
|
JM1AN-P-DC12V-FRELAY GEN PURPOSE SPST 20A 12V |
3,541 | 0.00 |
RFQ |
Datasheet |
Tray | JM | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 75 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
JM1AN-P-DC5V-FRELAY GEN PURPOSE SPST 20A 5V |
2,560 | 0.00 |
RFQ |
Datasheet |
Tray | JM | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 180 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
JS1-F-18V-FRELAY GEN PURPOSE SPDT 10A 18V |
2,176 | 0.00 |
RFQ |
Datasheet |
Tray | JS | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 20 mA | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
APF10218RELAY GEN PURPOSE SPST 6A 18V |
3,467 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 9.4 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF30218RELAY GEN PURPOSE SPDT 6A 18V |
3,738 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 18VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 9.4 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF1034HRELAY GEN PURPOSE SPST 6A 4.5V |
2,289 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 37.8 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.225 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF3034HRELAY GEN PURPOSE SPDT 6A 4.5V |
2,231 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 4.5VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 37.8 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.225 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF30305RELAY GEN PURPOSE SPDT 6A 5V |
2,290 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 5VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 34 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF10306RELAY GEN PURPOSE SPST 6A 6V |
2,757 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 28.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF30309RELAY GEN PURPOSE SPDT 6A 9V |
2,914 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 9VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 18.9 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF30312RELAY GEN PURPOSE SPDT 6A 12V |
2,298 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 14.2 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF10318RELAY GEN PURPOSE SPST 6A 18V |
2,748 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 9.4 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF10324RELAY GEN PURPOSE SPST 6A 24V |
2,846 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 7.1 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF30324RELAY GEN PURPOSE SPDT 6A 24V |
3,988 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 7.1 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF30360RELAY GEN PURPOSE SPDT 6A 60V |
3,403 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 60VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 2.9 mA | Non Latching | - | PC Pin | - | - | 42 VDC | 3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
