| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HP4-DC24V-FRELAY GEN PURPOSE 4PDT 10A 24V |
3,048 | 0.00 |
RFQ |
Datasheet |
Tray | HP | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC - Nom | 63 mA | Non Latching | - | Plug In, Quick Connect - 0.205 (5.2mm) | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Alloy, Cadmium Free |
|
APF1024HRELAY GEN PURPOSE SPST 6A 4.5V |
3,033 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 37.8 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.225 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF10360RELAY GEN PURPOSE SPST 6A 60V |
2,022 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 60VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | 2.9 mA | Non Latching | - | PC Pin | - | - | 42 VDC | 3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
APF30206RELAY GEN PURPOSE SPDT 6A 6V |
3,010 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 6VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 28.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF30209RELAY GEN PURPOSE SPDT 6A 9V |
2,985 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 9VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 18.9 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF30212RELAY GEN PURPOSE SPDT 6A 12V |
3,892 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 14.2 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
APF30224RELAY GEN PURPOSE SPDT 6A 24V |
2,508 | 0.00 |
RFQ |
Datasheet |
Tube | APF | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 7.1 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

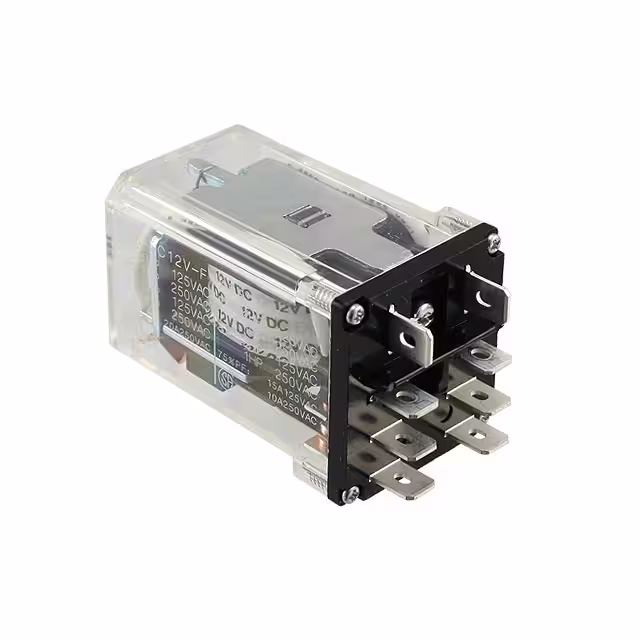

HG2-DC12V-FRELAY GEN PURPOSE DPDT 20A 12V |
2,863 | 0.00 |
RFQ |
Datasheet |
Tube | HG | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | 120 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|

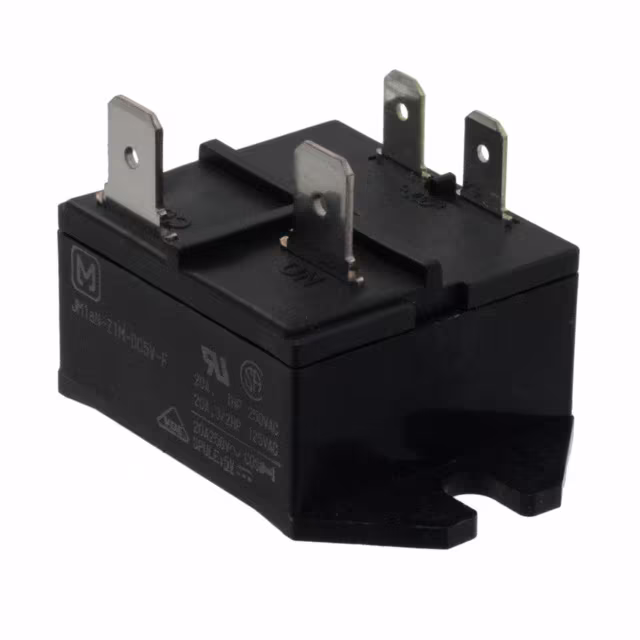

JM1AN-ZTM-DC5V-FRELAY GEN PURPOSE SPST 20A 5V |
2,793 | 0.00 |
RFQ |
Datasheet |
Tube | JM | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 180 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
JM1AN-P-DC24V-FRELAY GEN PURPOSE SPST 20A 24V |
3,373 | 0.00 |
RFQ |
Datasheet |
Tube | JM | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 37.5 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
JQ1AP-B-12V-FRELAY GEN PURPOSE SPST 10A 12V |
2,489 | 0.00 |
RFQ |
Datasheet |
Tube | JQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
HG2-AC24V-FRELAY GEN PURPOSE DPDT 20A 24V |
2,323 | 0.00 |
RFQ |
Datasheet |
Tube | HG | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|

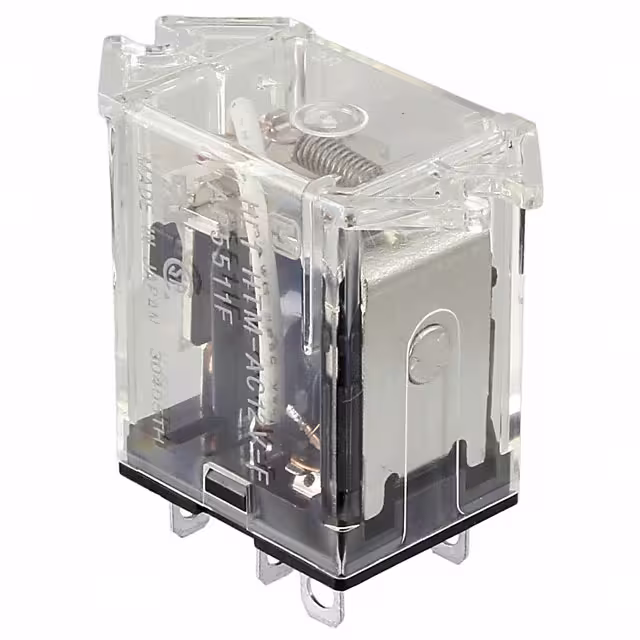

HL1-HTM-AC12V-FRELAY GEN PURPOSE SPDT 15A 12V |
2,149 | 0.00 |
RFQ |
Datasheet |
Tube | HL | Obsolete | Chassis Mount | 12VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 100 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HG4-AC240V-FRELAY GEN PURPOSE 4PDT 20A 240V |
3,776 | 0.00 |
RFQ |
Datasheet |
Tube | HG | Obsolete | Socketable | 240VAC | 4PDT (4 Form C) | 20 A | 250VAC - Nom | 31.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 192 VAC | 72 VAC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|
JS1A-F-12V-FRELAY GEN PURPOSE SPST 10A 12V |
2,432 | 0.00 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
JS1A-F-18V-FRELAY GEN PURPOSE SPST 10A 18V |
2,831 | 0.00 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
JS1A-F-9V-FRELAY GEN PURPOSE SPST 10A 9V |
2,861 | 0.00 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
JS1AF-12V-FRELAY GEN PURPOSE SPST 10A 12V |
3,811 | 0.00 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JS1AF-18V-FRELAY GEN PURPOSE SPST 10A 18V |
2,471 | 0.00 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JS1AF-48V-FRELAY GEN PURPOSE SPST 10A 48V |
2,921 | 0.00 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
