| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

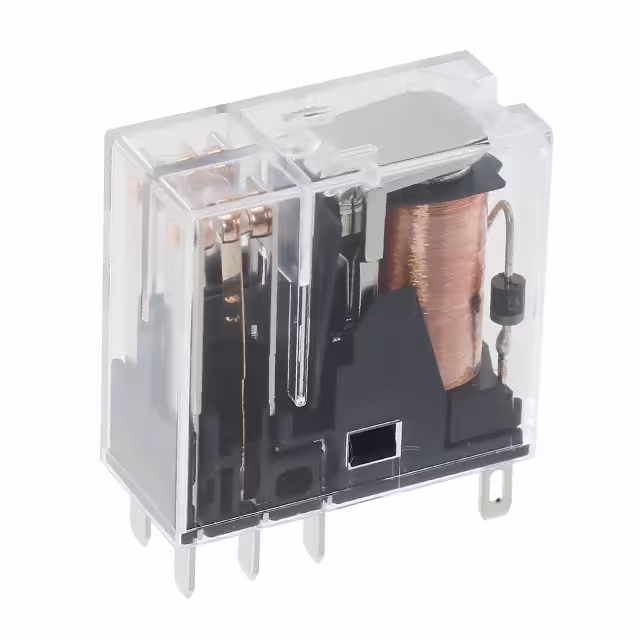

AHN22206NRELAY GEN PURPOSE DPDT 5A 6V |
2,140 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 6VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 88.2 mA | Non Latching | Diode | Plug In | - | - | 4.2 VDC | 0.9 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
AHN22224NRELAY GEN PURPOSE DPDT 5A 24V |
2,298 | 0.00 |
RFQ |
Datasheet |
Tube | AHN | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 22 mA | Non Latching | Diode | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN22248NRELAY GEN PURPOSE DPDT 5A 48V |
3,071 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 11 mA | Non Latching | Diode | Plug In | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN222X0NRELAY GEN PURPOSE DPDT 5A 100V |
2,460 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 100VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 5.3 mA | Non Latching | Diode | Plug In | - | - | 70 VDC | 15 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN22305NRELAY GEN PURPOSE DPDT 5A 5V |
3,086 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 106 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN22324NRELAY GEN PURPOSE DPDT 5A 24V |
2,050 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 22 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN22348NRELAY GEN PURPOSE DPDT 5A 48V |
2,992 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 11 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN223X0NRELAY GEN PURPOSE DPDT 5A 100V |
2,810 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 100VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 5.3 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 70 VDC | 15 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
AHN223X1NRELAY GEN PURPOSE DPDT 5A 110V |
3,074 | 0.00 |
RFQ |
Datasheet |
Box | AHN | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 4.8 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 77 VDC | 11 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
HC1E-H-AC115V-FRELAY GEN PURPOSE SPDT 5A 115V |
2,939 | 0.00 |
RFQ |
Datasheet |
Bulk | HCE | Obsolete | Socketable | 115VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 11.4 mA | Non Latching | - | Plug In | Sealed - Fully | - | 92 VAC | 34.5 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
|
HC1E-H-AC240V-FRELAY GEN PURPOSE SPDT 5A 240V |
3,475 | 0.00 |
RFQ |
Datasheet |
Bulk | HCE | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 5 mA | Non Latching | - | Plug In | Sealed - Fully | - | 192 VAC | 72 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
|
HC1E-H-DC12V-FRELAY GEN PURPOSE SPDT 5A 12V |
2,559 | 0.00 |
RFQ |
Datasheet |
Bulk | HCE | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 75 mA | Non Latching | - | Plug In | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
HC1E-HP-AC240V-FRELAY GEN PURPOSE SPDT 5A 240V |
2,367 | 0.00 |
RFQ |
Datasheet |
Bulk | HCE | Obsolete | Through Hole | 240VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 192 VAC | 72 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
|
HC1-H-AC115V-FRELAY GEN PURPOSE SPDT 10A 115V |
2,157 | 0.00 |
RFQ |
Box | HC | Obsolete | Socketable | 115VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | |
|
|
HC1-HL-AC115V-FRELAY GEN PURPOSE SPDT 10A 115V |
3,688 | 0.00 |
RFQ |
Box | HC | Obsolete | Socketable | 115VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | - | Non Latching | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -50°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | |
|
|
HC1-HP-AC240V-FRELAY GEN PURPOSE SPDT 10A 240V |
3,965 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Through Hole | 240VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | 5 mA | Non Latching | - | PC Pin | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC1-HP-DC110V-FRELAY GEN PURPOSE SPDT 10A 110V |
2,764 | 0.00 |
RFQ |
Box | HC | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 10 mA | Non Latching | - | PC Pin | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | |
|
|
HC2E-HP-DC110V-FRELAY GEN PURPOSE DPDT 3A 110V |
3,925 | 0.00 |
RFQ |
Box | HC | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 11 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | |
|
|
HC2E-L-DC24V-FRELAY GEN PURPOSE DPDT 3A 24V |
3,330 | 0.00 |
RFQ |
Datasheet |
Box | HC | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 37 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold |
|
|
HC2-HL-AC115V-FRELAY GEN PURPOSE DPDT 7A 115V |
2,877 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 11.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -50°C ~ 60°C | Silver Alloy, Cadmium Free |
