| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofCharacters | DisplayFormat | CharacterFormat | DisplayType | DisplayMode | CharacterSize | OutlineLxWxH | ViewingArea | Backlight | Voltage-Supply | DotSize | Interface | ControllerType | OperatingTemperature | TextColor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NHD-0116AZ-FL-GBWLCD MOD 16DIG 16X1 TRANS YLW/GRN |
2,620 | 12.08 |
RFQ |
Datasheet |
Box | - | Active | 16 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 6.56mm H x 3.07mm W | 80.00mm x 36.00mm x 13.00mm | 64.00mm L x 13.80mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.55mm W x 0.75mm H | Parallel, 8-Bit | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

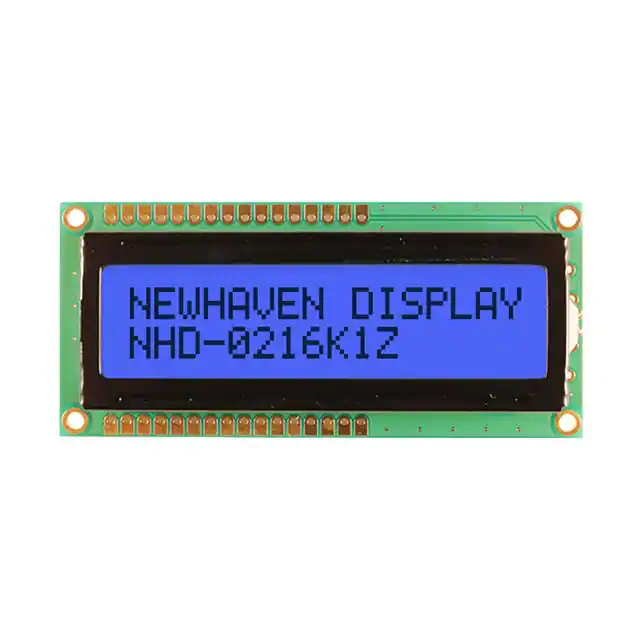

NHD-0216K1Z-FSB-GBW-LLCD MOD 32DIG 16X2 TRANSFLCT BLU |
3,053 | 12.26 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Blue | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

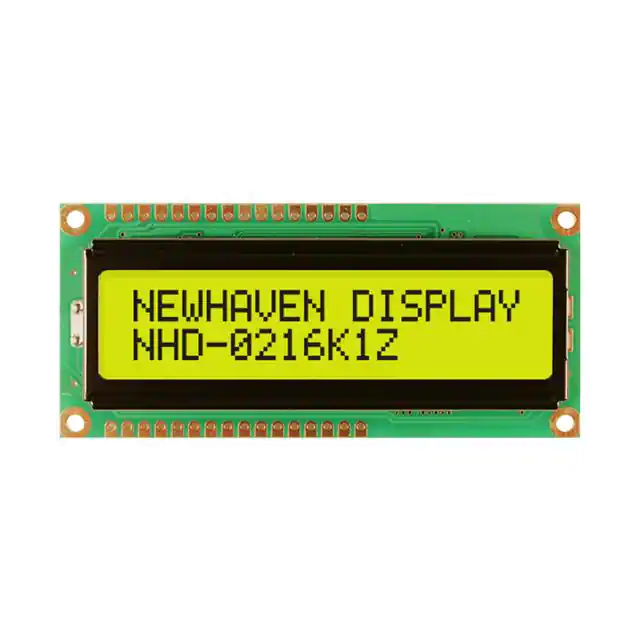

NHD-0216K1Z-FL-GBWLCD MOD 32DIG 16X2 TRANS YLW/GRN |
2,196 | 12.48 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

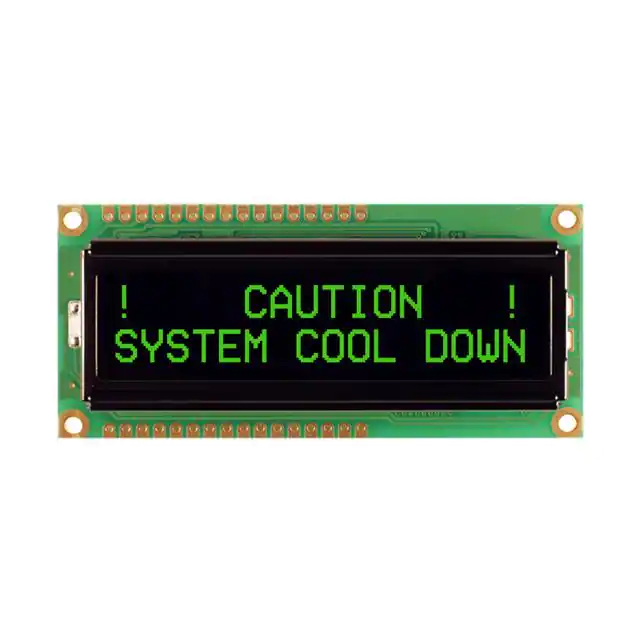

NHD-0216K1Z-NSPG-FBWLCD MOD 32DIG 16X2 TRANSMISV GRN |
2,578 | 13.24 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Green | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Green |
|

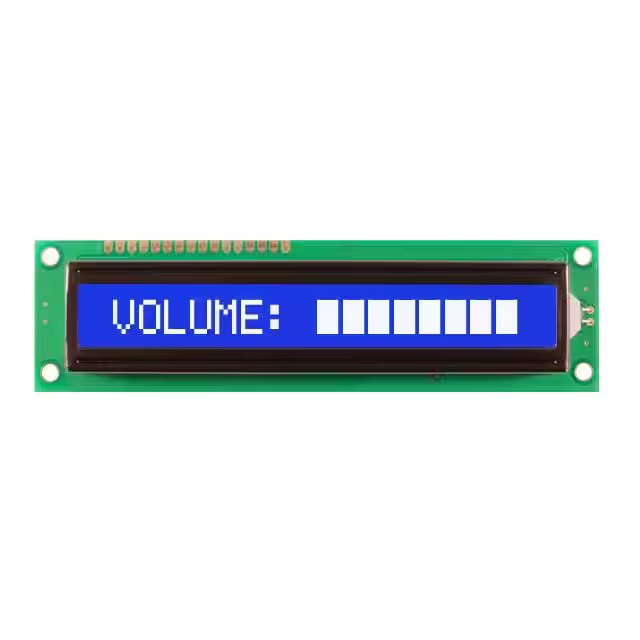

NHD-0116DZ-NSW-BBWLCD MOD 16DIG 16X1 TRANSMISV WHT |
2,460 | 16.94 |
RFQ |
Datasheet |
Box | - | Active | 16 | 16 x 1 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Transmissive | 9.66mm H x 4.84mm W | 122.00mm x 33.00mm x 14.00mm | 99.00mm L x 13.00mm W | LED - White | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White |
|

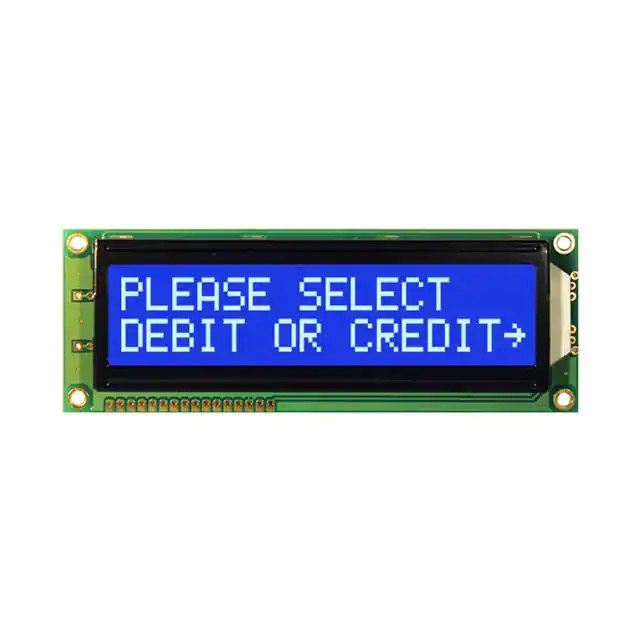

NHD-0216SZ-NSW-BBW-33V3LCD MOD 32DIG 16X2 TRANSMISV WHT |
2,603 | 24.34 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 9.55mm H x 5.20mm W | 122.00mm x 44.00mm x 13.50mm | 99.00mm L x 24.00mm W | LED - White | 3.3V ~ 5.5V | 1.00mm W x 1.15mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White |
|

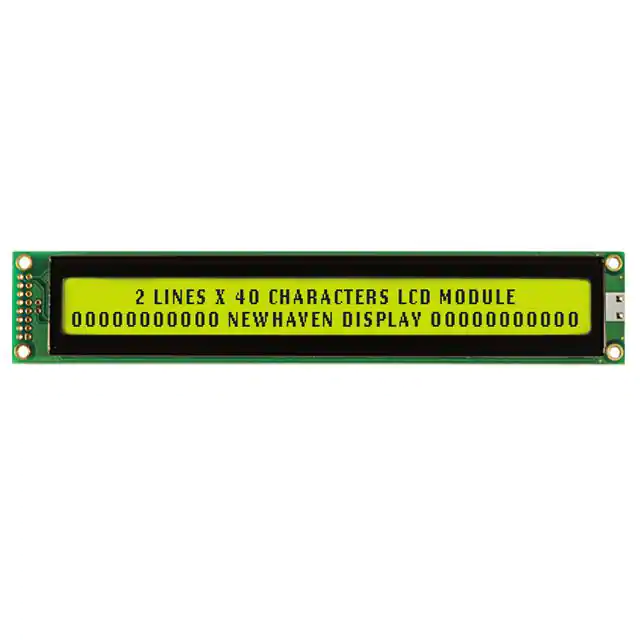

NHD-0240AZ-FL-GBWLCD MOD 80DIG 40X2 TRANS YLW/GRN |
2,959 | 24.39 |
RFQ |
Datasheet |
Box | - | Active | 80 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.50mm | 152.50mm L x 16.50mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

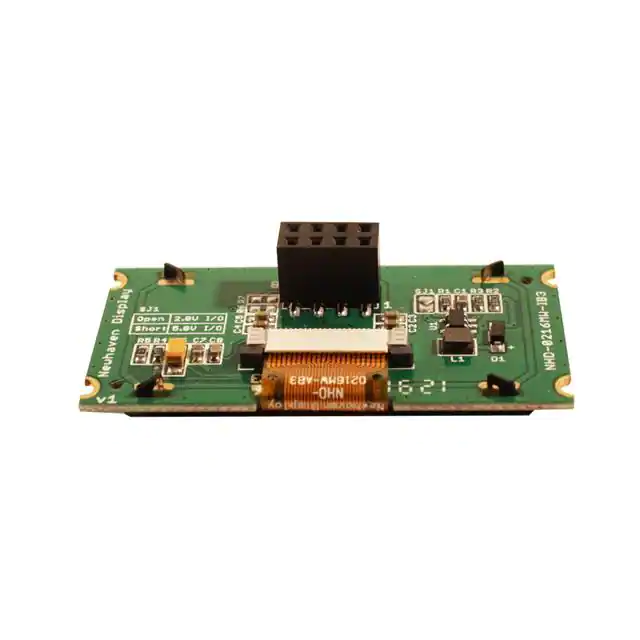

NHD-0216MW-IB3OLED MODULE 32DIG 16 X 2 PASSIVE |
3,490 | 28.96 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 4.45mm H x 1.82mm W | 49.20mm x 24.40mm x 4.50mm | 36.22mm L x 11.40mm W | Without Backlight | 2.4V ~ 5.5V | 0.34mm W x 0.53mm H | I²C | US2066 | -40°C ~ 85°C | Blue |
|

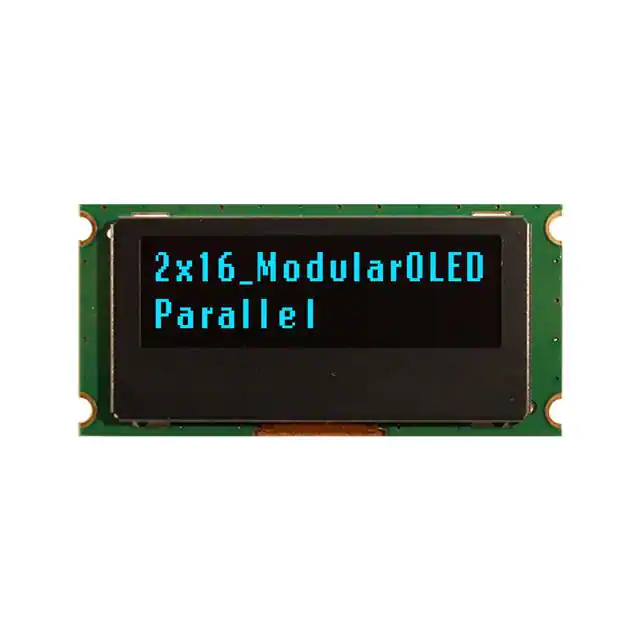

NHD-0216MW-PB3OLED MODULE 32DIG 16 X 2 PASSIVE |
2,419 | 29.14 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 4.45mm H x 1.82mm W | 49.20mm x 24.40mm x 4.50mm | 36.22mm L x 11.40mm W | Without Backlight | 2.4V ~ 5.5V | 0.34mm W x 0.53mm H | Parallel | US2066 | -40°C ~ 85°C | Blue |
|

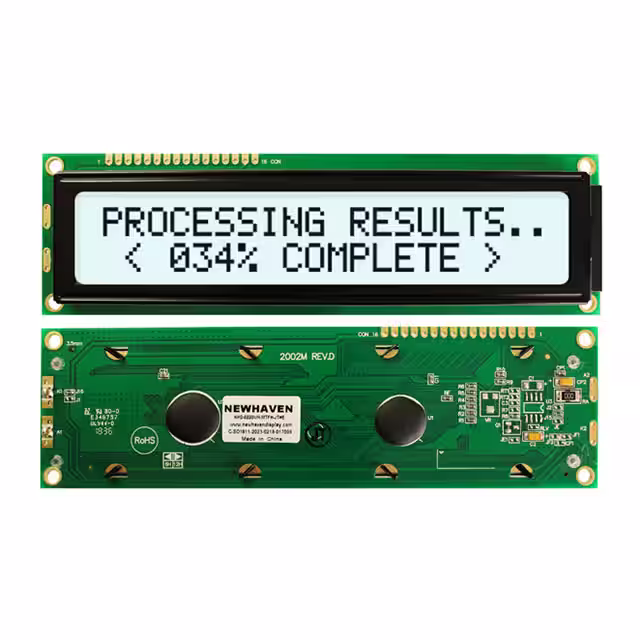

NHD-0220WH-MTFH-JT#ELCD MOD 40DIG 20X2 TRANSFLCT WHT |
2,405 | 29.24 |
RFQ |
Datasheet |
Box | - | Active | 40 | 20 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 43.00mm x 13.70mm | 123.00mm L x 23.00mm W | LED - White | 4.5V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | KS0066U | -20°C ~ 70°C | Black |
|

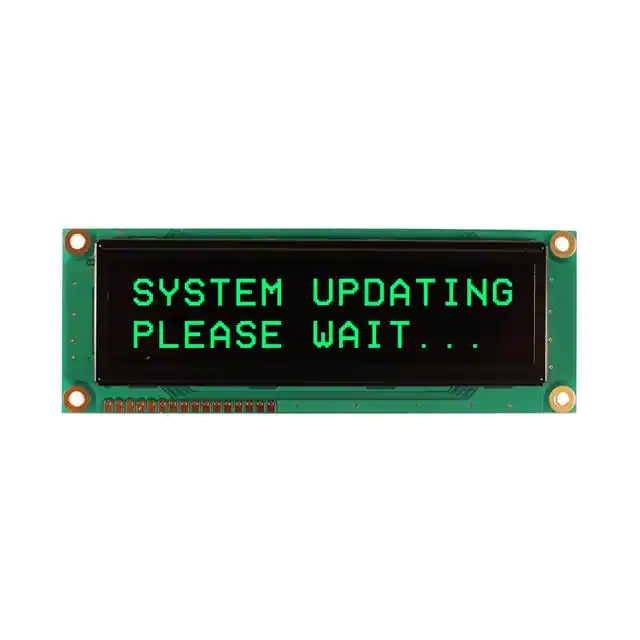

NHD-0216SZW-BG5OLED MODULE 32DIG 16 X 2 PASSIVE |
3,734 | 40.11 |
RFQ |
Datasheet |
Tray | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 8.90mm H x 4.74mm W | 122.00mm x 44.00mm x 10.00mm | 99.00mm L x 24.00mm W | Without Backlight | 4.8V ~ 5.3V | 0.90mm W x 1.06mm H | Parallel/Serial | - | -40°C ~ 80°C | Green |
|

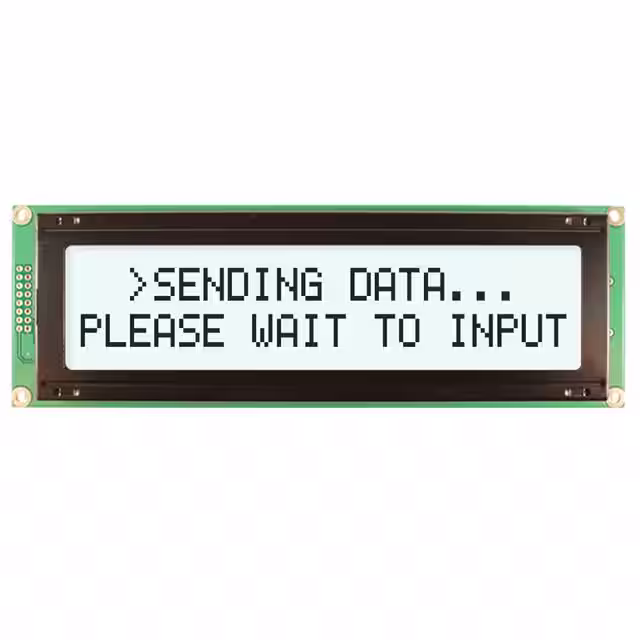

NHD-0220JZ-FSW-FBWLCD MOD 40DIG 20X2 TRANSFLCT WHT |
3,618 | 35.53 |
RFQ |
Datasheet |
Box | - | Active | 40 | 20 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 12.70mm H x 5.90mm W | 182.00mm x 60.00mm x 14.00mm | 147.00mm L x 35.20mm W | LED - White | 4.7V ~ 5.5V | 1.10mm W x 1.50mm H | Parallel | S6A0069 | -20°C ~ 70°C | Black |
|
NHD-0220WH-MYGH-JT#ELCD MOD 40DIG 20X2 TRANS YLW/GRN |
3,475 | 22.00 |
RFQ |
Datasheet |
Box | - | Active | 40 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 43.00mm x 13.70mm | 123.00mm L x 23.00mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue |
|

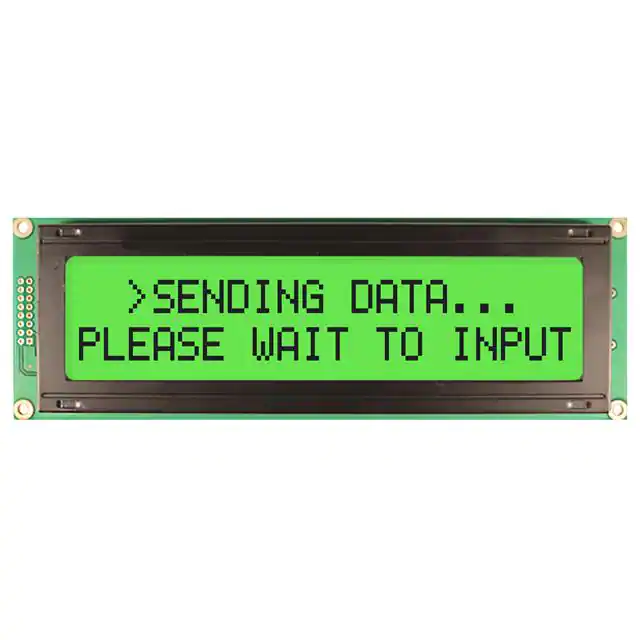

NHD-0220JZ-FSPG-GBWLCD MOD 40DIG 20X2 TRANSFLCT GRN |
2,322 | 34.07 |
RFQ |
Datasheet |
Bulk | - | Active | 40 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 12.70mm H x 5.90mm W | 182.00mm x 60.00mm x 14.00mm | 147.00mm L x 35.20mm W | LED - Green | 4.7V ~ 5.5V | 1.10mm W x 1.50mm H | Parallel | S6A0069 | -20°C ~ 70°C | Blue |
|

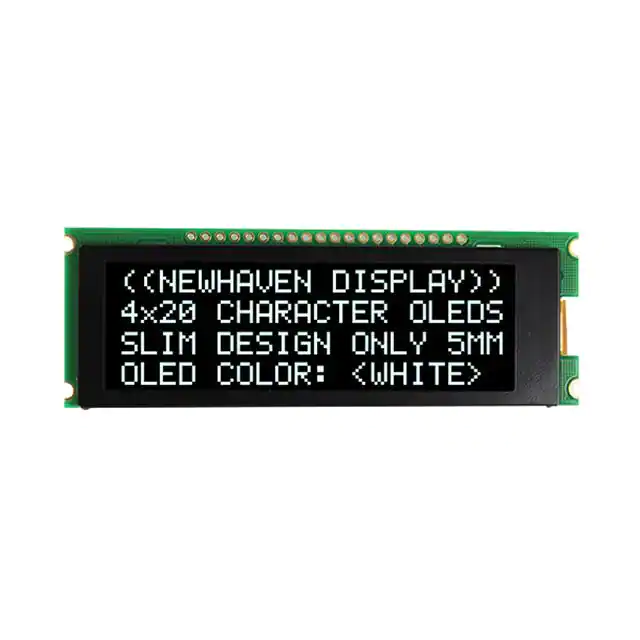

NHD-0420CW-AW3OLED MODULE 80DIG 20 X 4 |
2,765 | 36.27 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | OLED | - | 4.77mm H x 2.97mm W | 92.00mm x 31.50mm x 6.50mm | 72.42mm L x 22.82mm W | - | 2.4V ~ 5.5V | 0.57mm W x 0.57mm H | Parallel, 8-Bit, I²C, SPI | US2066 | -40°C ~ 85°C | White |
|

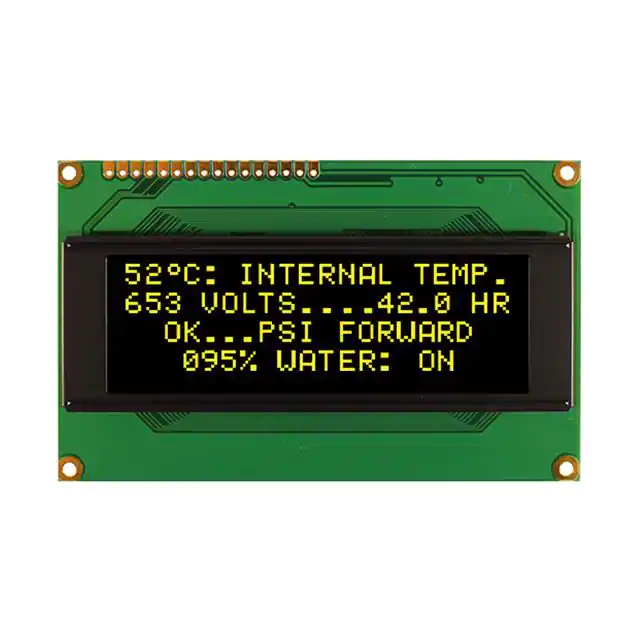

NHD-0420DZW-AY5OLED MODULE 80DIG 20 X 4 PASSIVE |
2,006 | 38.03 |
RFQ |
Datasheet |
Tray | - | Active | 80 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | Without Backlight | 4.8V ~ 5.3V | 0.54mm W x 0.55mm H | Parallel/Serial | - | -40°C ~ 80°C | Yellow |
|

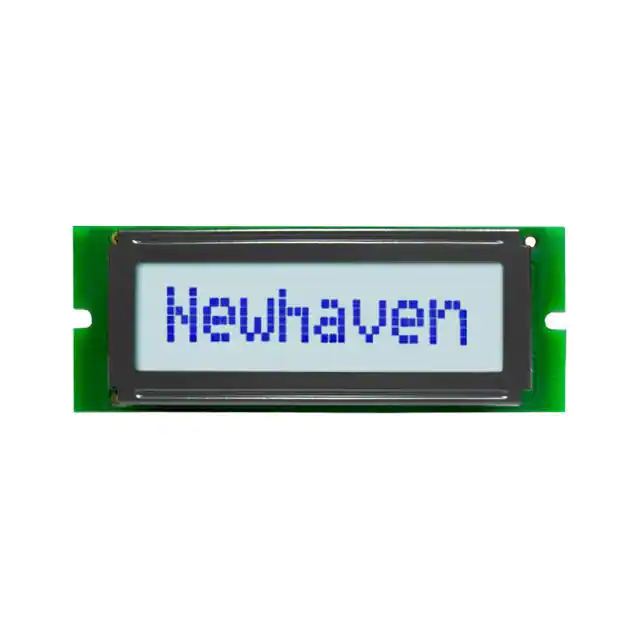

NHD-0108CZ-FSW-GBW-33V3LCD MOD 8DIG 8X1 TRANSFLECTV WHT |
3,219 | 10.04 |
RFQ |
Datasheet |
Bulk | - | Active | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 7.71mm H x 4.20mm W | 69.00mm x 27.00mm x 13.00mm | 45.00mm L x 13.50mm W | LED - White | 3.3V | 0.80mm W x 0.92mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
-FBW-REV1.jpg)
|

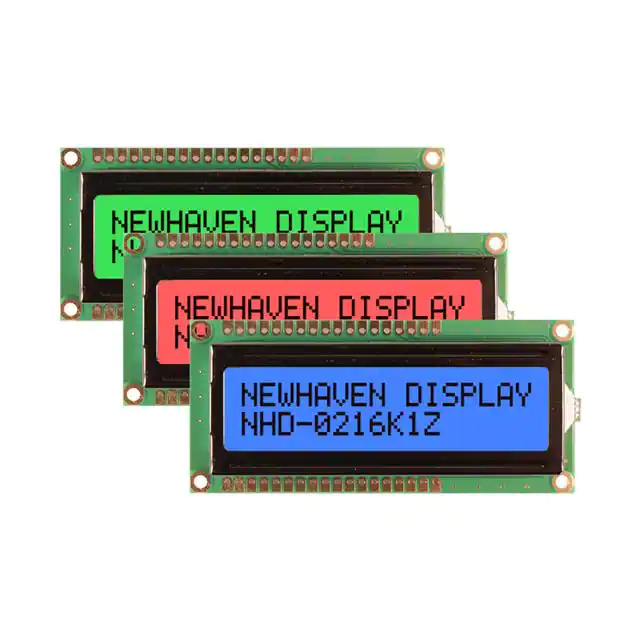

NHD-0216K1Z-FS(RGB)-FBW-REV1LCD MOD 32DIG 16X2 TRANSFL R/G/B |
2,928 | 16.14 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.00mm | 64.50mm L x 16.40mm W | LED - Red/Green/Blue | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Black |
|

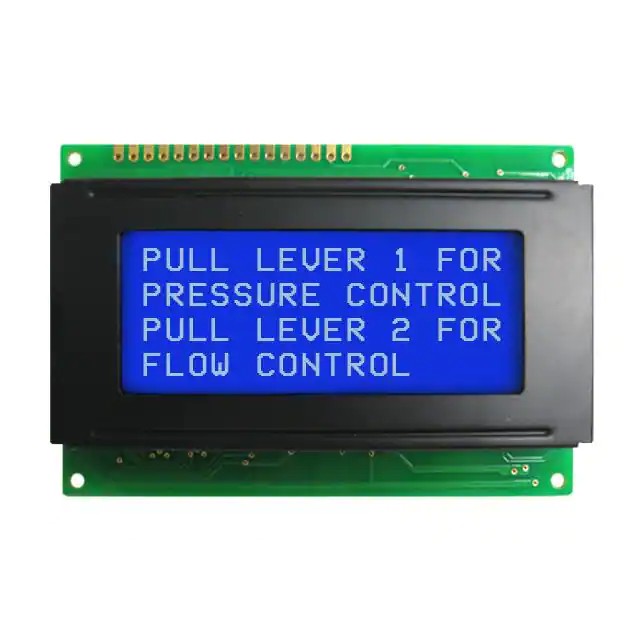

NHD-0416BZ-NSW-BBWLCD MOD 64DIG 16X4 TRANSMISV WHT |
3,391 | 21.50 |
RFQ |
Datasheet |
Box | - | Active | 64 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 14.50mm | 61.80mm L x 25.20mm W | LED - White | 4.7V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White |
|

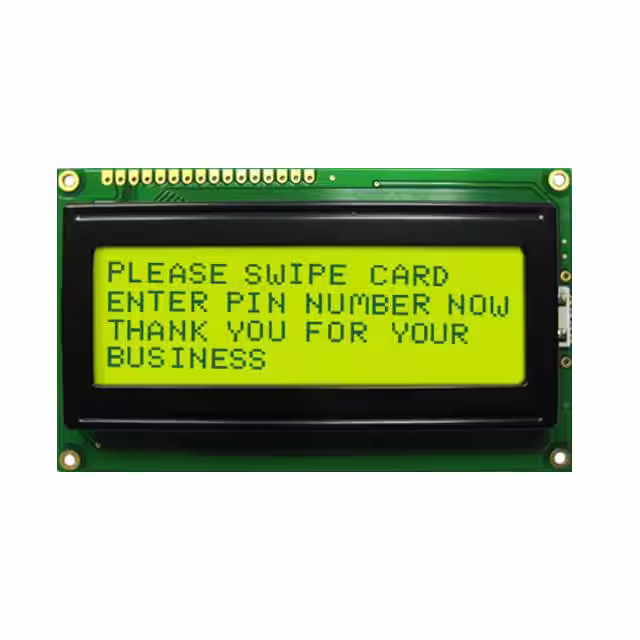

NHD-0420DZ-FL-GBWLCD MOD 80DIG 20X4 TRANS YLW/GRN |
2,612 | 25.08 |
RFQ |
Datasheet |
Box | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
