| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofCharacters | DisplayFormat | CharacterFormat | DisplayType | DisplayMode | CharacterSize | OutlineLxWxH | ViewingArea | Backlight | Voltage-Supply | DotSize | Interface | ControllerType | OperatingTemperature | TextColor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NHD-0212WH-AYGH-JT#LCD MOD 24DIG 12X2 TRANS YLW/GRN |
739 | 11.23 |
RFQ |
Datasheet |
Box | - | Active | 24 | 12 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.50mm H x 2.65mm W | 55.70mm x 32.00mm x 9.70mm | 46.00mm L x 14.50mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.45mm W x 0.60mm H | Parallel | ST7066 | -20°C ~ 70°C | Blue |
|

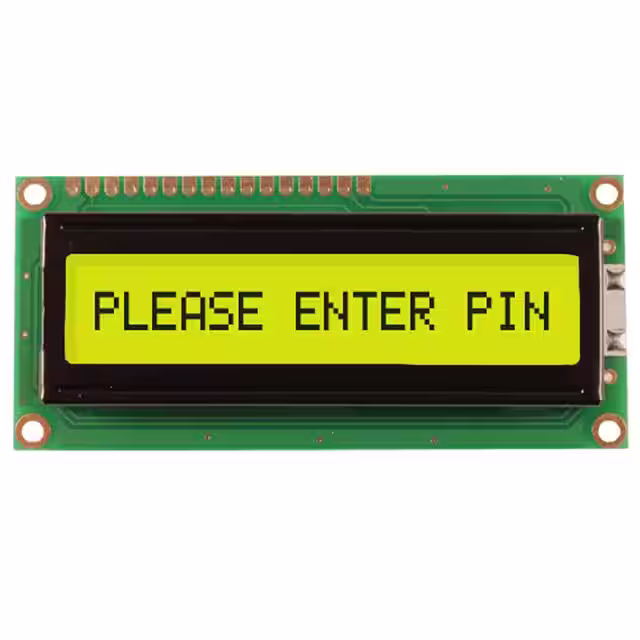

NHD-0116AZ-FL-YBWLCD MOD 16DIG 16X1 TRANS YLW/GRN |
337 | 11.95 |
RFQ |
Datasheet |
Box | - | Active | 16 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 6.56mm H x 3.07mm W | 80.00mm x 36.00mm x 13.50mm | 64.00mm L x 13.80mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.55mm W x 0.75mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|
NHD-0216HZ-FL-YBW-CLCD MOD 32DIG 16X2 TRANS YLW/GRN |
595 | 12.86 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.99mm H x 2.55mm W | 65.50mm x 36.70mm x 15.00mm | 54.00mm L x 14.40mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.47mm W x 0.58mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

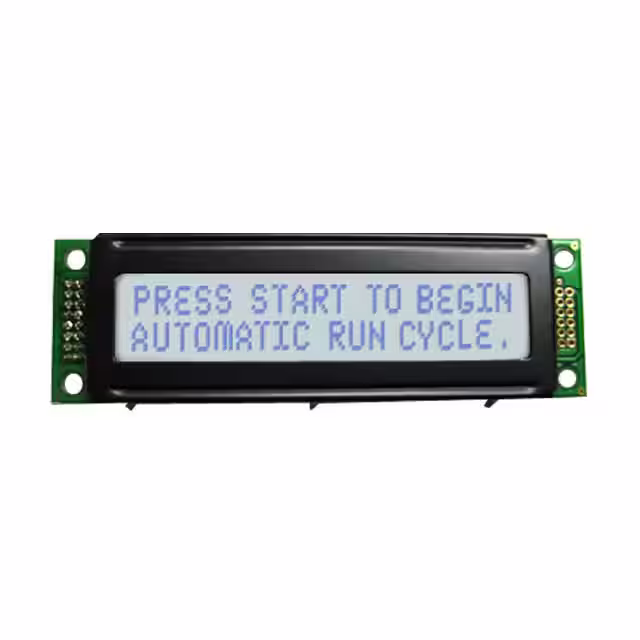

NHD-0220FZ-FSW-GBW-PLCD MOD 40DIG 20X2 TRANSFLCT WHT |
172 | 12.88 |
RFQ |
Datasheet |
Bulk | - | Active | 40 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.23mm H x 1.85mm W | 65.00mm x 20.00mm x 8.00mm | 48.00mm L x 10.00mm W | LED - White | 4.7V ~ 5.5V | 0.33mm W x 0.36mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Gray |
|

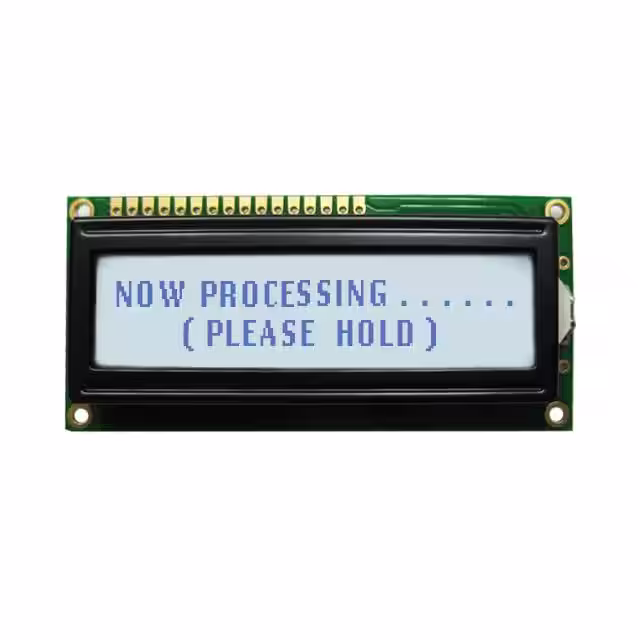

NHD-0220GZ-FSW-GBW-LLCD MOD 40DIG 20X2 TRANSFLCT WHT |
365 | 13.73 |
RFQ |
Datasheet |
Box | - | Active | 40 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.62mm H x 2.49mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - White | 4.5V ~ 5.5V | 0.46mm W x 0.53mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

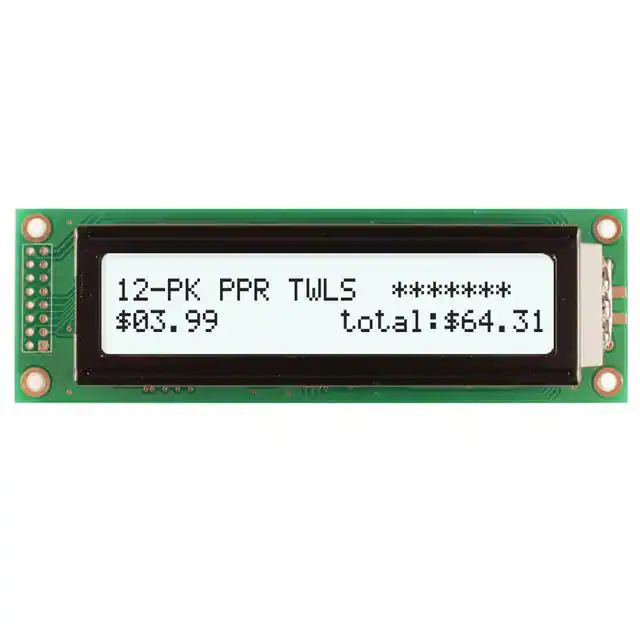

NHD-0224BZ1-FSW-FBWLCD MOD 48DIG 24X2 TRANSFLCT WHT |
300 | 17.34 |
RFQ |
Datasheet |
Bulk | - | Active | 48 | 24 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.55mm H x 2.70mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - White | 4.7V ~ 5.5V | 0.50mm W x 0.65mm H | Parallel | KS0066U | -20°C ~ 70°C | Black |
|

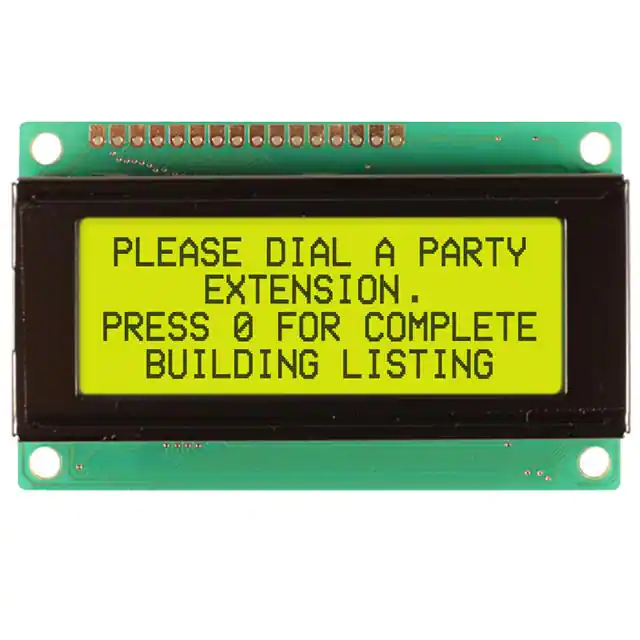

NHD-0420AZ-FL-YBW-33V3LCD MOD 80DIG 20X4 TRANS YLW/GRN |
3,675 | 20.81 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.03mm H x 2.30mm W | 77.00mm x 47.00mm x 14.50mm | 60.00mm L x 22.00mm W | LED - Yellow/Green | 3.1V ~ 3.5V | 0.42mm W x 0.46mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Gray |
|

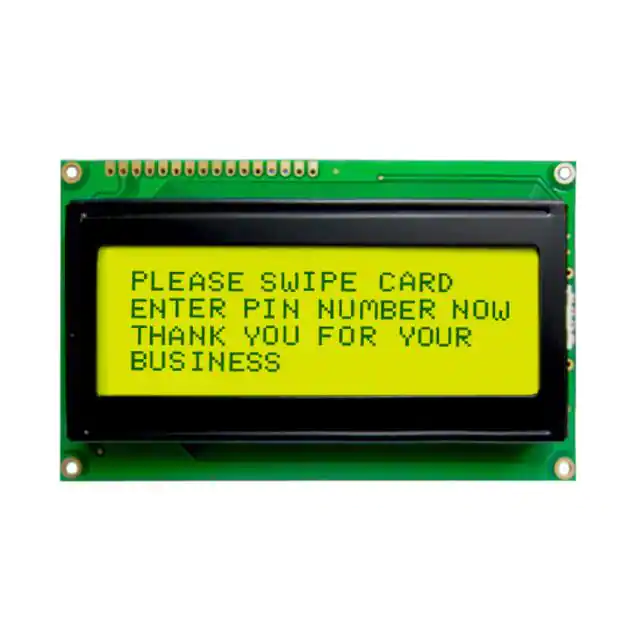

NHD-0420DZ-FL-YBW-33V3LCD MOD 80DIG 20X4 TRANS YLW/GRN |
821 | 24.81 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 3.3V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|
NHD-0216K3Z-NS(RGB)-FBW-V3LCD MOD 32DIG 16X2 TRANSMS R/G/B |
103 | 24.97 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Red/Green/Blue | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | I²C, RS-232, SPI | PIC16F693 | -20°C ~ 70°C | Red/Green/Blue |
|

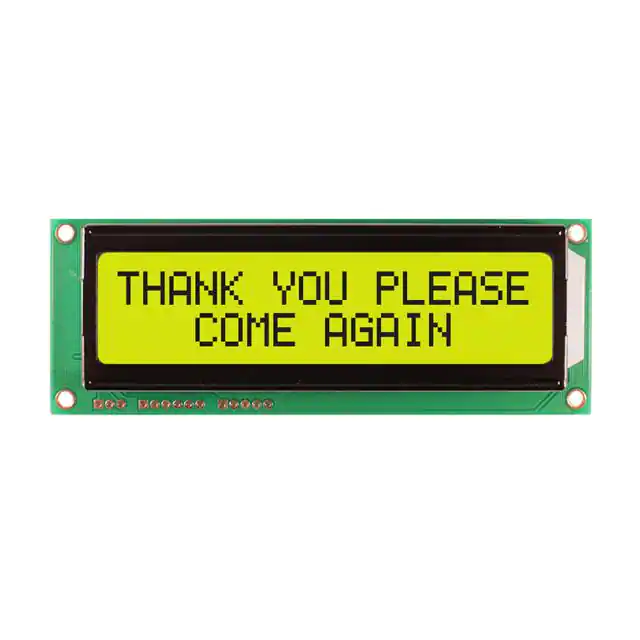

NHD-0216S3Z-FL-GBW-V3LCD MOD 32DIG 16X2 TRANS YLW/GRN |
2,206 | 26.57 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.55mm H x 5.20mm W | 122.00mm x 44.00mm x 13.50mm | 99.00mm L x 24.00mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 1.00mm W x 1.15mm H | I²C, RS-232, SPI | PIC16F695 | -20°C ~ 70°C | Blue |
|

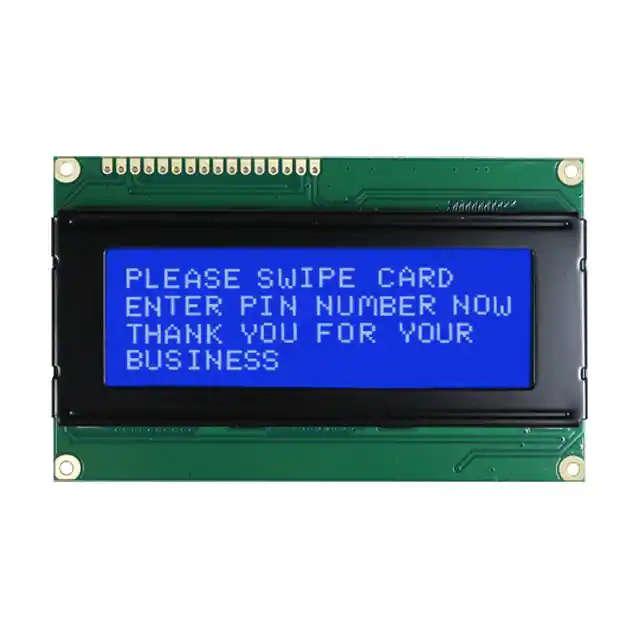

NHD-0420DZ-NSW-BBWLCD MOD 80DIG 20X4 TRANSMISV WHT |
2,006 | 27.01 |
RFQ |
Datasheet |
Box | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 13.60mm | 77.00mm L x 25.20mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White |
|
NHD-0220WH-MTGH-JT#ELCD MOD 40DIG 20X2 TRANSFLCT WHT |
146 | 28.09 |
RFQ |
Datasheet |
Box | - | Active | 40 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 43.00mm x 13.70mm | 123.00mm L x 23.00mm W | LED - White | 4.5V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | Blue |
|

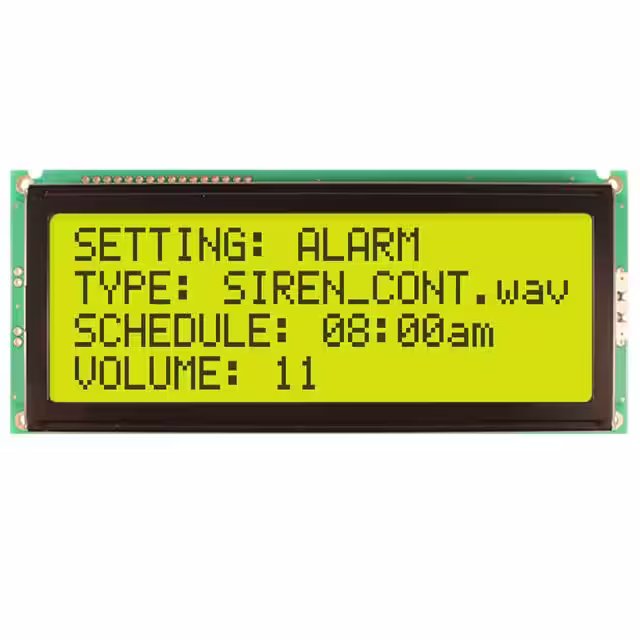

NHD-0420E2Z-FL-YBWLCD MOD 80DIG 20X4 TRANS YLW/GRN |
536 | 31.83 |
RFQ |
Datasheet |
Box | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 14.50mm | 123.00mm L x 42.50mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue |
|

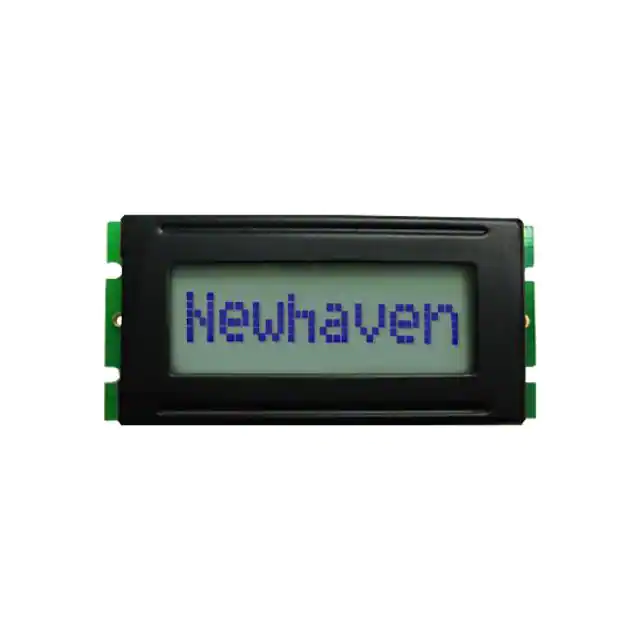

NHD-0108BZ-RN-GBWLCD MOD 8 DIG 8 X 1 REFLECTIVE |
3,599 | 8.76 |
RFQ |
Datasheet |
Box | - | Active | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 7.10mm H x 3.40mm W | 53.00mm x 24.20mm x 11.00mm | 35.00mm L x 12.60mm W | Without Backlight | 4.7V ~ 5.5V | 0.60mm W x 0.80mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

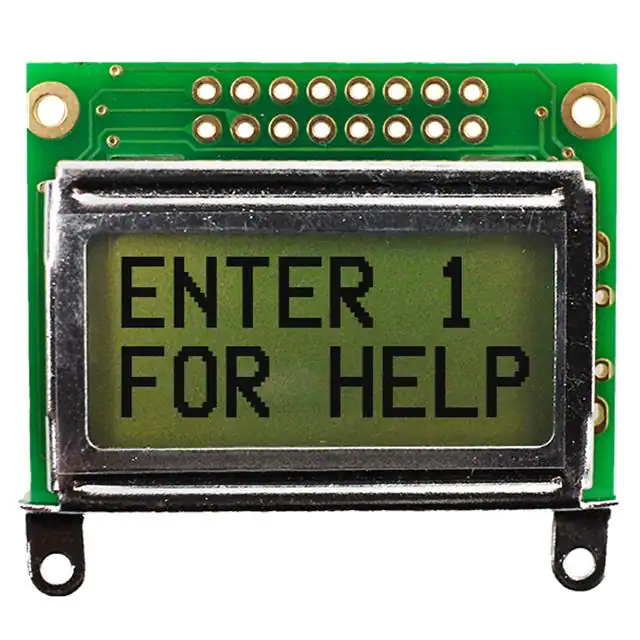

NHD-0208AZ-RN-YBWLCD MOD 16 DIG 8 X 2 REFLECTIVE |
2,901 | 9.38 |
RFQ |
Datasheet |
Box | - | Active | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 40.00mm x 35.40mm x 13.50mm | 30.40mm L x 13.90mm W | Without Backlight | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Gray |
|

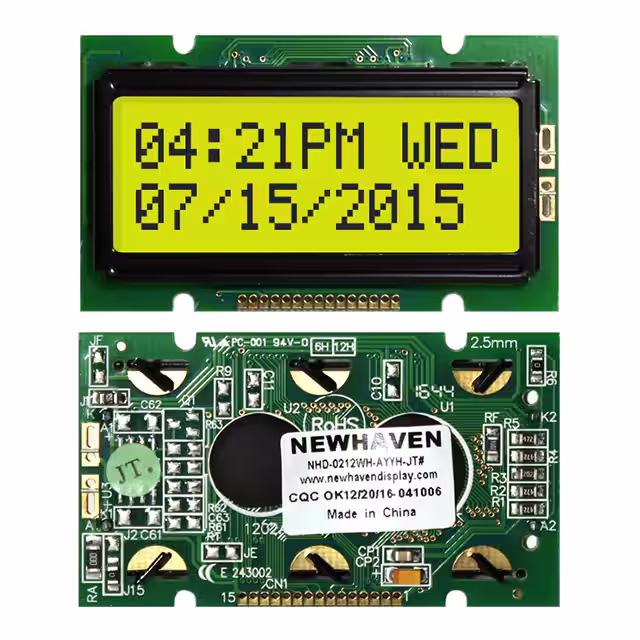

NHD-0212WH-AYYH-JT#LCD MOD 24DIG 12X2 TRANS YLW/GRN |
120 | 11.23 |
RFQ |
Datasheet |
Box | - | Active | 24 | 12 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.50mm H x 2.65mm W | 55.70mm x 32.00mm x 9.70mm | 46.00mm L x 14.50mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.45mm W x 0.60mm H | Parallel | ST7066 | -20°C ~ 70°C | Blue |
|
NHD-C0216CU-FSW-GBW-3V3LCD MOD 32DIG 16X2 TRANSFLCT WHT |
188 | 12.16 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.68mm H x 2.21mm W | 56.00mm x 25.30mm x 5.50mm | 45.70mm L x 14.30mm W | LED - White | 2.7V ~ 5.5V | 0.41mm W x 0.55mm H | Parallel | ST-7032 | -20°C ~ 70°C | Blue |
|

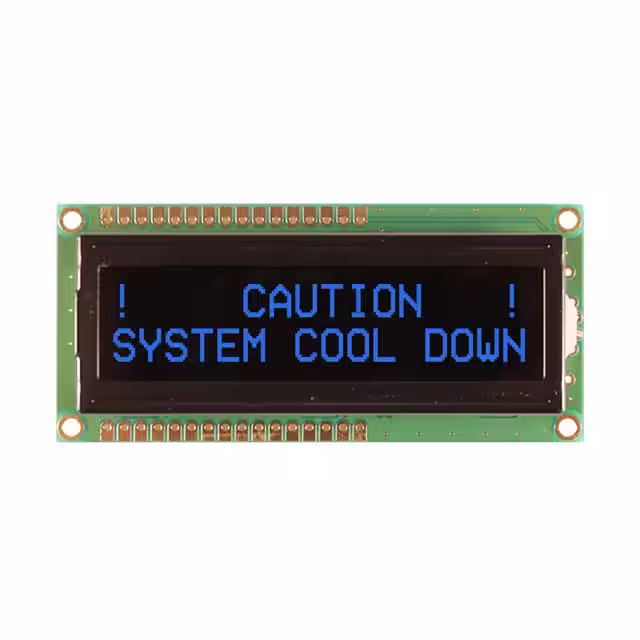

NHD-0216K1Z-NSB-FBW-LLCD MOD 32DIG 16X2 TRANSMIS BLUE |
280 | 12.80 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Blue | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

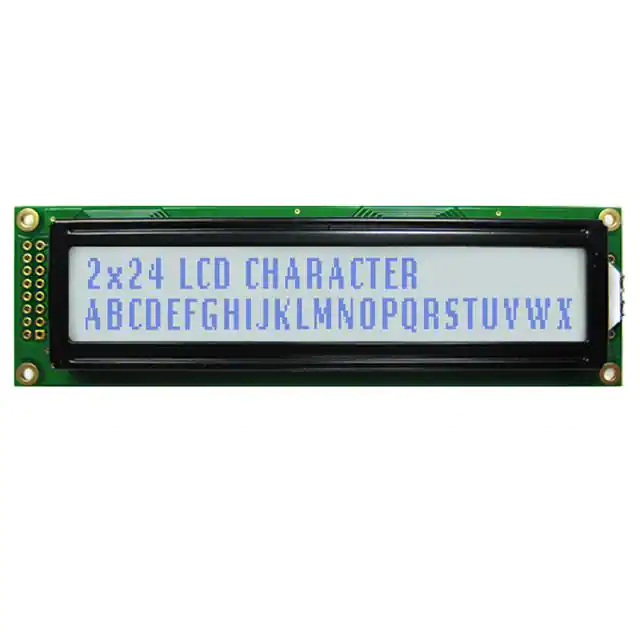

NHD-0224AZ-FSW-GBWLCD MOD 48DIG 24X2 TRANSFLCT WHT |
357 | 17.40 |
RFQ |
Datasheet |
Bulk | - | Active | 48 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 118.00mm x 36.00mm x 12.50mm | 94.50mm L x 18.00mm W | LED - White | 4.7V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue |
|

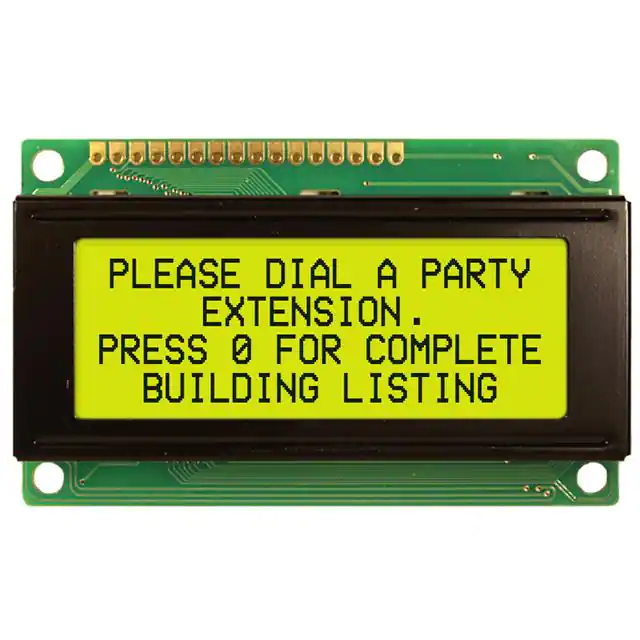

NHD-0420AZ-FL-GBW-33V3LCD MOD 80DIG 20X4 TRANS YLW/GRN |
368 | 20.93 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.03mm H x 2.30mm W | 77.00mm x 47.00mm x 14.50mm | 60.00mm L x 22.00mm W | LED - Yellow/Green | 3V ~ 3.6V | 0.42mm W x 0.46mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
