| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofCharacters | DisplayFormat | CharacterFormat | DisplayType | DisplayMode | CharacterSize | OutlineLxWxH | ViewingArea | Backlight | Voltage-Supply | DotSize | Interface | ControllerType | OperatingTemperature | TextColor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NHD-0220CW-AB3OLED MODULE 40DIG 20 X 2 PASSIVE |
3,840 | 31.61 |
RFQ |
Datasheet |
Bulk | - | Active | 40 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 3.22mm W | 92.00mm x 23.30mm x 2.50mm | 77.92mm L x 16.28mm W | - | 2.4V ~ 5.5V | 0.62mm W x 0.67mm H | Parallel, 8-Bit, I²C, SPI | US2066 | -40°C ~ 85°C | Blue |
|

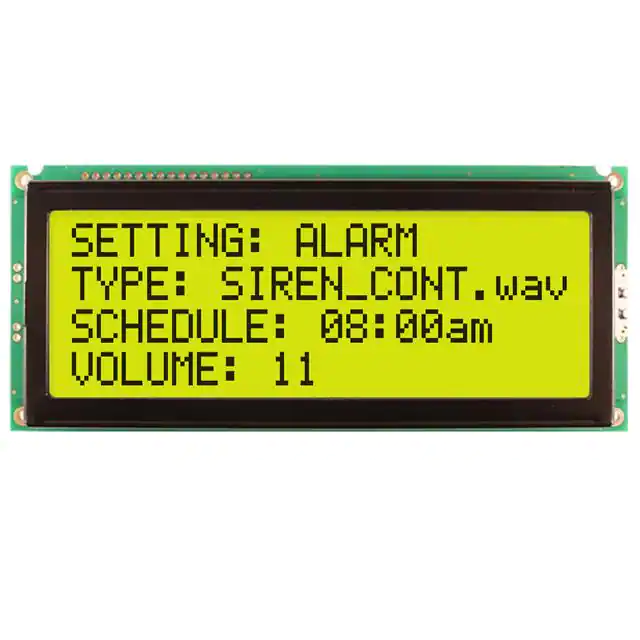

NHD-0420E2Z-FL-GBWLCD MOD 80DIG 20X4 TRANS YLW/GRN |
141 | 31.94 |
RFQ |
Datasheet |
Box | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 14.50mm | 123.00mm L x 42.50mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue |
|

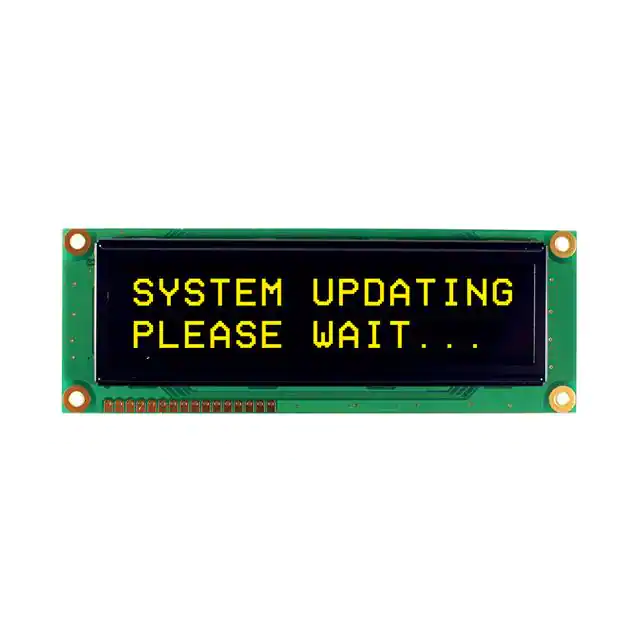

NHD-0216SZW-BY5OLED MODULE 32DIG 16 X 2 PASSIVE |
122 | 40.06 |
RFQ |
Datasheet |
Tray | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 8.90mm H x 4.74mm W | 122.00mm x 44.00mm x 10.00mm | 99.00mm L x 24.00mm W | Without Backlight | 3V ~ 5.3V | 0.90mm W x 1.06mm H | Parallel/Serial | - | -40°C ~ 80°C | Yellow |
|

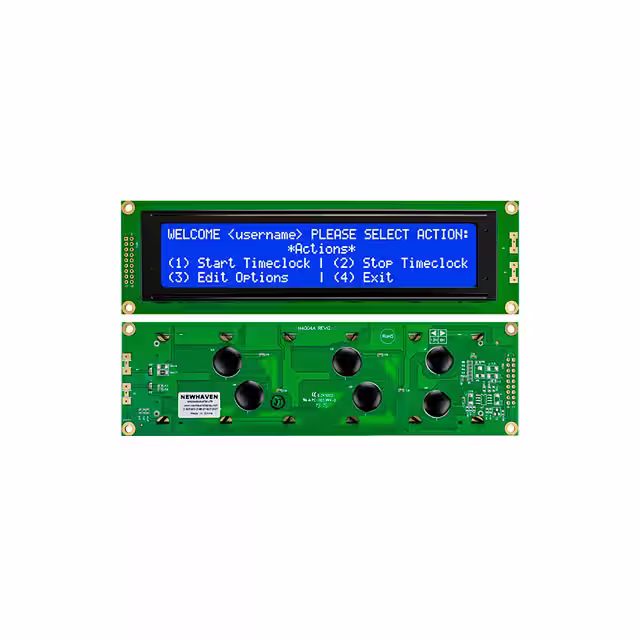

NHD-0440WH-ATMI-JT#LCD MOD 160DIG 40X4 TRANSMIS WHT |
2,402 | 31.41 |
RFQ |
Datasheet |
Bulk | - | Active | 160 | 40 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.89mm H x 2.78mm W | 190.00mm x 54.00mm x 13.60mm | 147.00mm L x 29.50mm W | LED - White | 4.75V ~ 5.25V | 0.50mm W x 0.55mm H | Parallel | ST7066-0A | -20°C ~ 70°C | White |
|

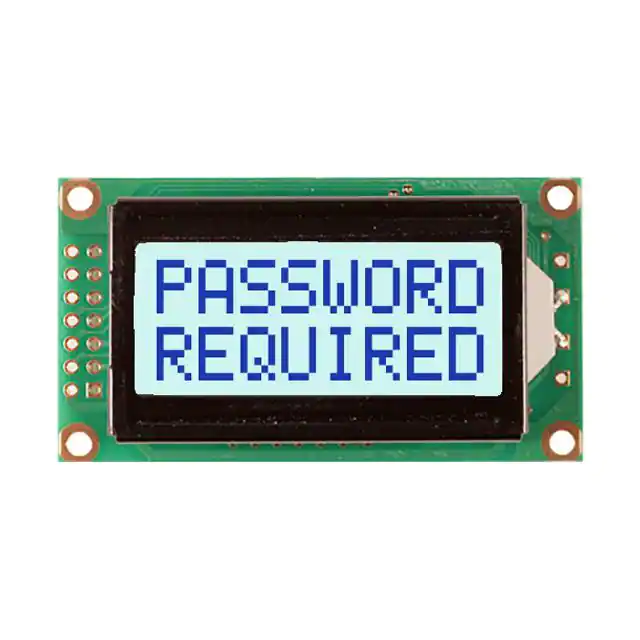

NHD-0208BZ-FSW-GBW-33V3LCD MOD 16DIG 8X2 TRANSFLECT WHT |
100 | 11.29 |
RFQ |
Datasheet |
Bulk | - | Active | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 13.00mm | 38.00mm L x 16.00mm W | LED - White | 3.1V ~ 3.5V | 0.56mm W x 0.66mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|
NHD-0212WH-ATMI-JT#LCD MOD 24DIG 12X2 TRANSMISV WHT |
2,365 | 11.56 |
RFQ |
Datasheet |
Box | - | Active | 24 | 12 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.50mm H x 2.65mm W | 55.70mm x 32.00mm x 14.50mm | 46.00mm L x 14.50mm W | LED - White | 4.5V ~ 5.5V | 0.45mm W x 0.60mm H | Parallel | ST7066 | -20°C ~ 70°C | White |
|

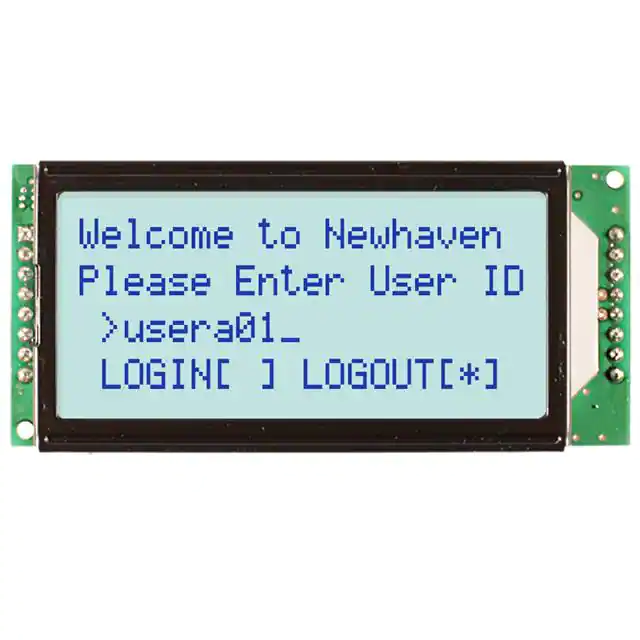

NHD-0420H1Z-FSW-GBW-33V3LCD MOD 80DIG 20X4 TRANSFLCT WHT |
3,198 | 21.38 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.15mm H x 2.35mm W | 79.00mm x 36.00mm x 13.00mm | 60.00mm L x 28.00mm W | LED - White | 3.3V | 0.43mm W x 0.60mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

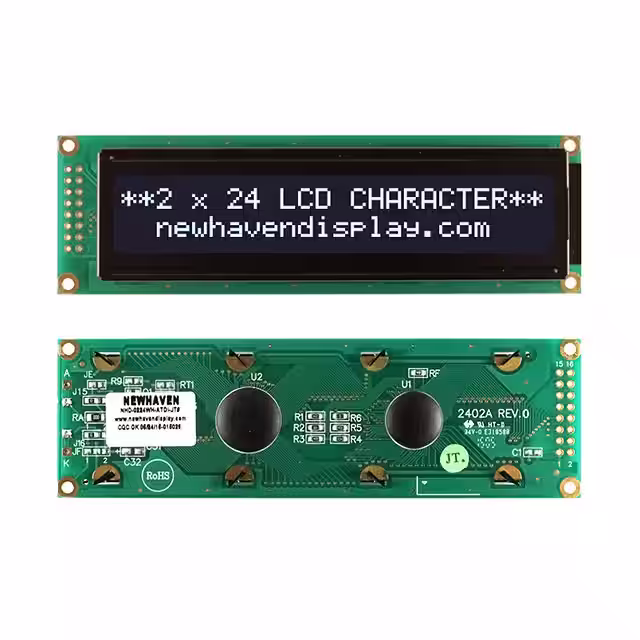

NHD-0224WH-ATDI-JT#LCD MOD 48DIG 24X2 TRANSMISV WHT |
813 | 21.62 |
RFQ |
Datasheet |
Bulk | - | Active | 48 | 24 x 2 | 5 x 8 Dots | FFSTN - Double Film Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 118.00mm x 36.00mm x 13.60mm | 94.50mm L x 16.00mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | KS0066U | -20°C ~ 70°C | White |
|
NHD-0216CW-AB3OLED MODULE 32DIG 16 X 2 PASSIVE |
3,942 | 30.87 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 2.97mm W | 76.00mm x 24.50mm x 2.50mm | 58.22mm L x 13.52mm W | - | 2.4V ~ 5.5V | 0.57mm W x 0.67mm H | Parallel, 8-Bit, I²C, SPI | US2066 | -40°C ~ 85°C | Blue |
|

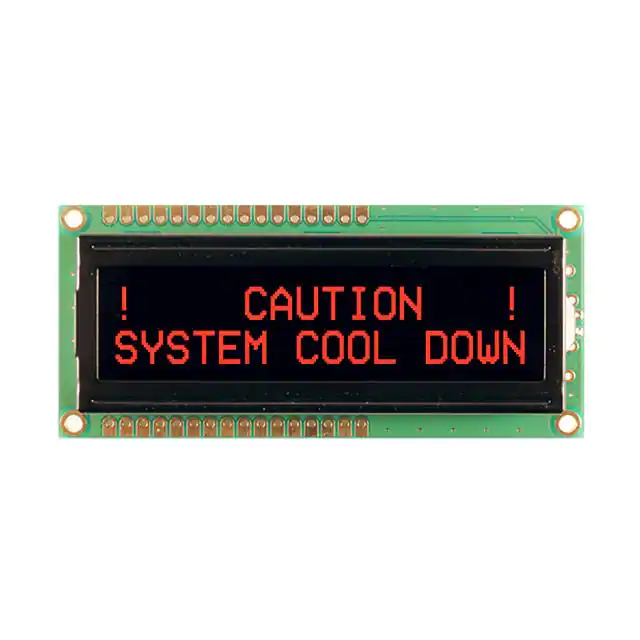

NHD-0216K1Z-NSR-FBW-LLCD MOD 32DIG 16X2 TRANSMISV RED |
2,732 | 12.80 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Red | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Red |
|

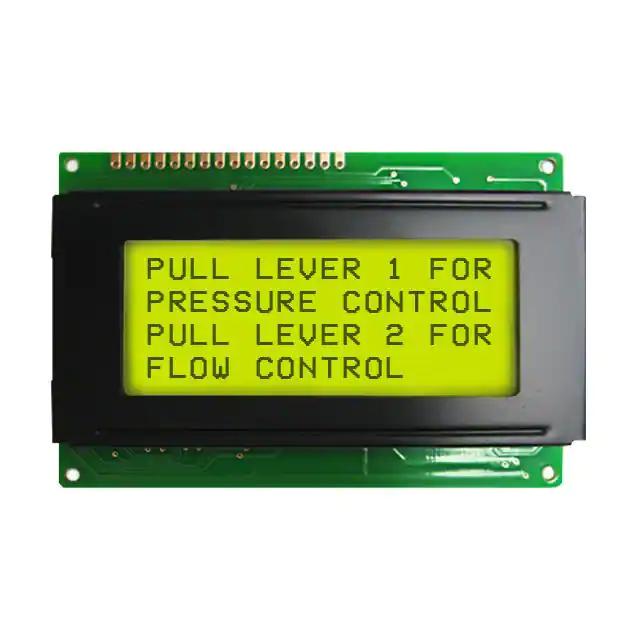

NHD-0416BZ-FL-GBWLCD MOD 64DIG 16X4 TRANS YLW/GRN |
3,708 | 20.93 |
RFQ |
Datasheet |
Box | - | Active | 64 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 14.50mm | 61.80mm L x 25.20mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

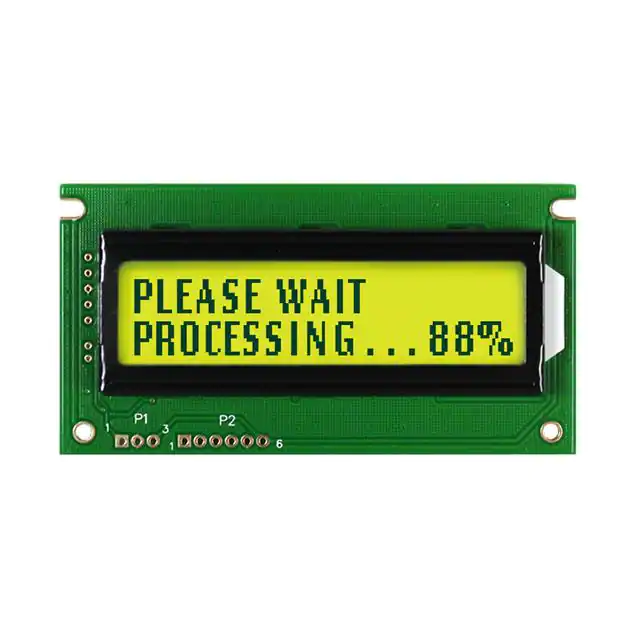

NHD-0216B3Z-FL-GBW-V3LCD MOD 32DIG 16X2 TRANS YLW/GRN |
2,756 | 23.88 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 84.00mm x 44.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | I²C, RS-232, SPI | PIC16F691 | -20°C ~ 70°C | Black |
|

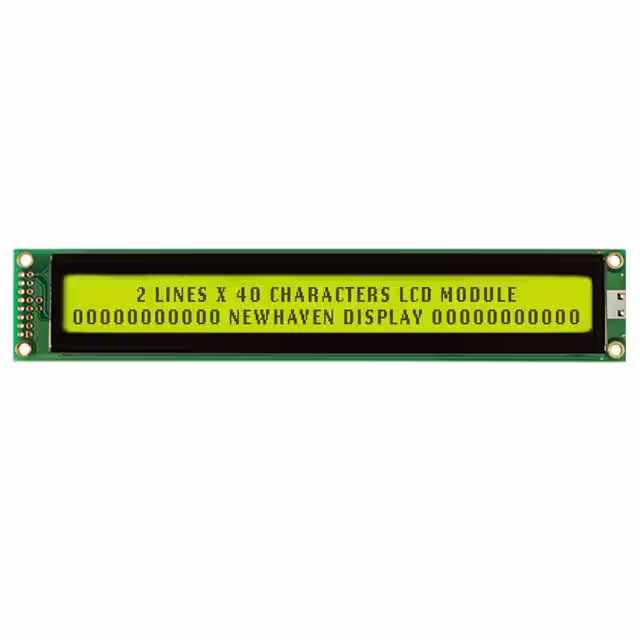

NHD-0240AZ-FL-YBWLCD MOD 80DIG 40X2 TRANS YLW/GRN |
2,154 | 24.26 |
RFQ |
Datasheet |
Box | - | Active | 80 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 13.50mm | 152.50mm L x 16.50mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

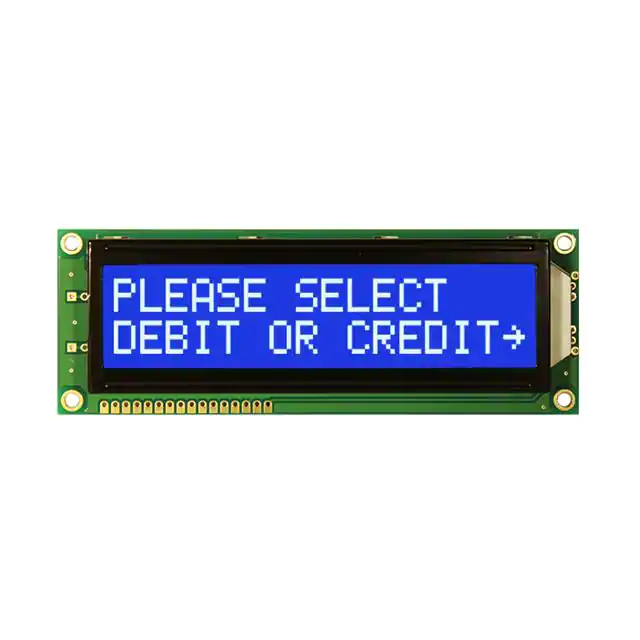

NHD-0216SZ-NSW-BBWLCD MOD 32DIG 16X2 TRANSMISV WHT |
3,631 | 24.37 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 9.55mm H x 5.20mm W | 122.00mm x 44.00mm x 13.50mm | 99.00mm L x 24.00mm W | LED - White | 4.7V ~ 5.5V | 1.00mm W x 1.15mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White |
|

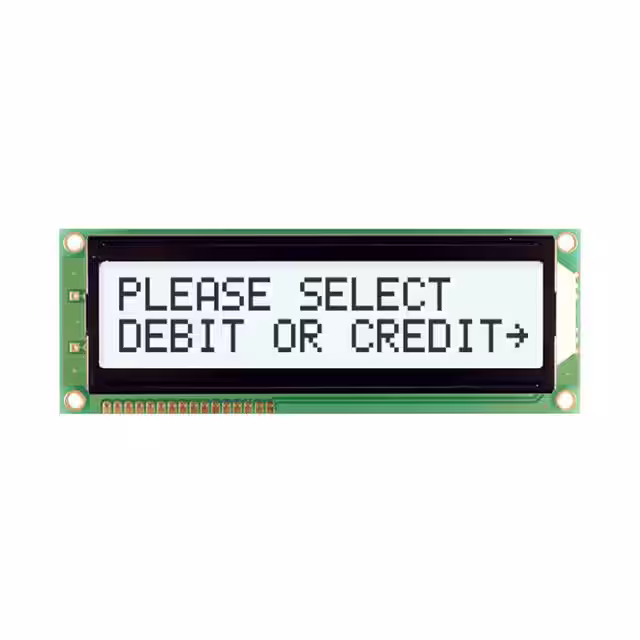

NHD-0216SZ-FSW-FBWLCD MOD 32DIG 16X2 TRANSFLCT WHT |
3,839 | 24.72 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 9.55mm H x 5.20mm W | 122.00mm x 44.00mm x 13.50mm | 99.00mm L x 24.00mm W | LED - White | 4.7V ~ 5.5V | 1.00mm W x 1.15mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Black |
|

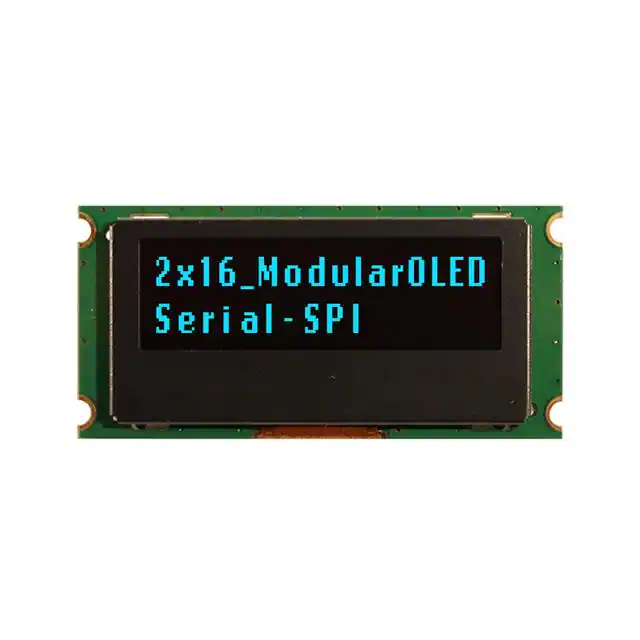

NHD-0216MW-SB3OLED MODULE 32DIG 16 X 2 PASSIVE |
2,449 | 29.07 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 4.45mm H x 1.82mm W | 49.20mm x 24.40mm x 4.50mm | 36.22mm L x 11.40mm W | Without Backlight | 2.4V ~ 5.5V | 0.34mm W x 0.53mm H | SPI | US2066 | -40°C ~ 85°C | Blue |
|

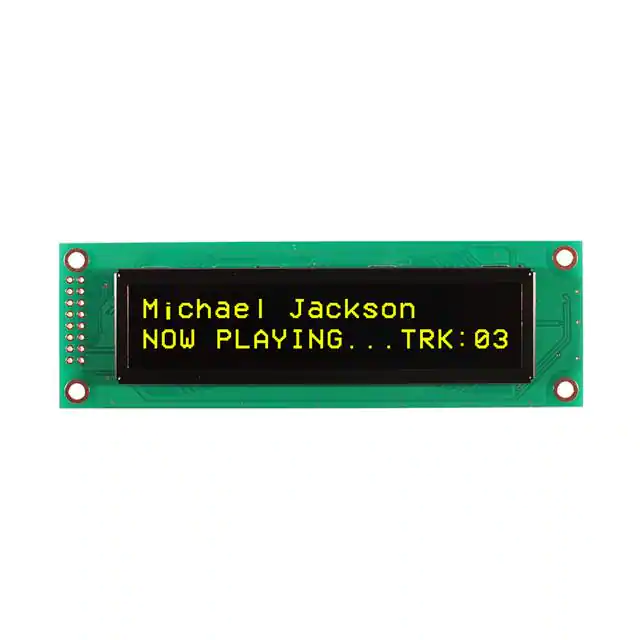

NHD-0220DZW-AY5OLED MODULE 40DIG 20 X 2 PASSIVE |
2,591 | 34.08 |
RFQ |
Datasheet |
Tray | - | Active | 40 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 9.80mm | 85.00mm L x 18.60mm W | Without Backlight | 3V ~ 5.3V | 0.60mm W x 0.65mm H | Parallel/Serial | - | -40°C ~ 80°C | Yellow |
|

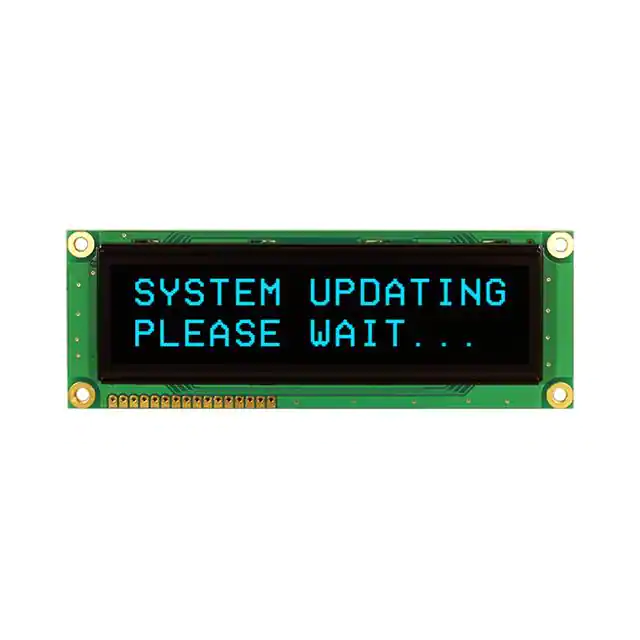

NHD-0216SZW-BB5OLED MODULE 32DIG 16 X 2 |
3,295 | 40.32 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | - | 8.90mm H x 4.74mm W | 122.00mm x 44.00mm x 10.00mm | 99.00mm L x 24.00mm W | - | 3V ~ 5.3V | 0.90mm W x 1.06mm H | Parallel/Serial | - | -40°C ~ 80°C | Blue |
|

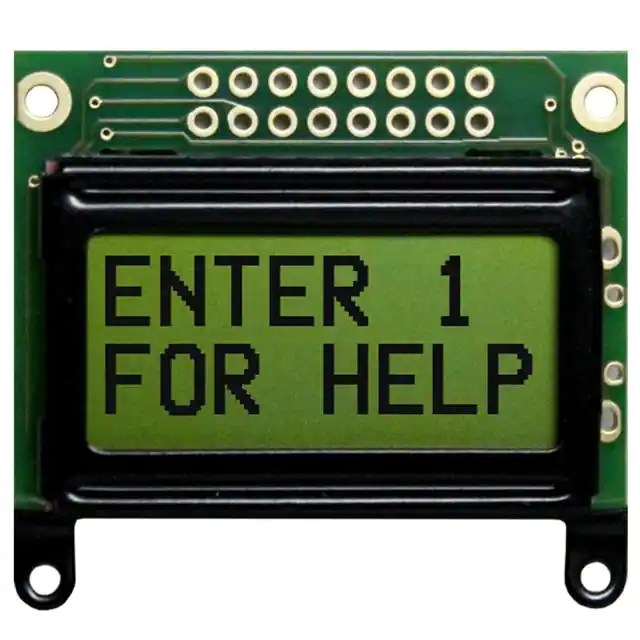

NHD-0208AZ-RN-YBW-33VLCD MOD 16 DIG 8 X 2 REFLECTIVE |
2,006 | 9.38 |
RFQ |
Datasheet |
Bulk | - | Active | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 40.00mm x 35.40mm x 8.00mm | 30.40mm L x 13.90mm W | Without Backlight | 3.1V ~ 3.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

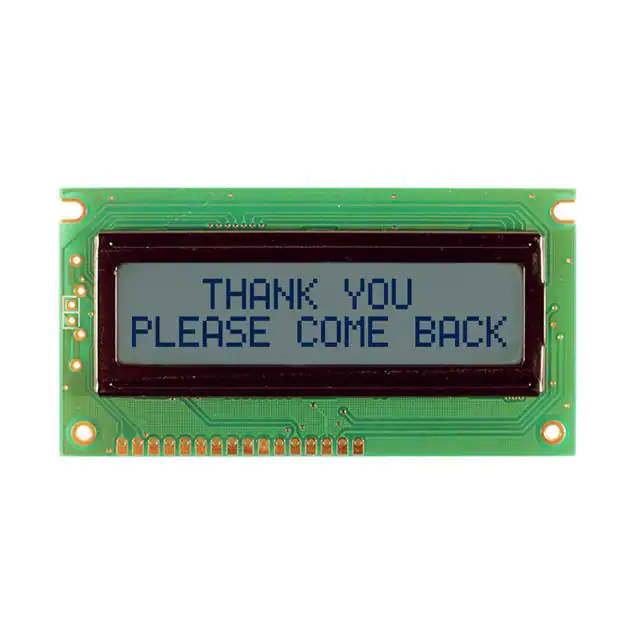

NHD-0216BZ-RN-GBWLCD MOD 32 DIG 16 X 2 REFLECTIVE |
3,124 | 10.21 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.23mm H x 3.00mm W | 84.00mm x 44.00mm x 9.00mm | 64.50mm L x 16.40mm W | Without Backlight | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
