| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofCharacters | DisplayFormat | CharacterFormat | DisplayType | DisplayMode | CharacterSize | OutlineLxWxH | ViewingArea | Backlight | Voltage-Supply | DotSize | Interface | ControllerType | OperatingTemperature | TextColor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NHD-0216AW-SB3OLED MODULE 32DIG 16 X 2 PASSIVE |
3,232 | 28.92 |
RFQ |
Datasheet |
Bulk | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 4.45mm H x 1.82mm W | 49.20mm x 25.70mm x 4.50mm | 36.22mm L x 11.40mm W | Without Backlight | 2.4V ~ 5.5V | 0.34mm W x 0.53mm H | SPI | US2066 | -40°C ~ 85°C | Blue |
|
NHD-0216KZW-AG5OLED MODULE 32DIG 16 X 2 PASSIVE |
2,500 | 31.40 |
RFQ |
Datasheet |
Tray | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | Without Backlight | 3V ~ 5.3V | 0.55mm W x 0.65mm H | Parallel/Serial | - | -40°C ~ 80°C | Green |
|
NHD-0216KZW-AY5OLED MODULE 32DIG 16 X 2 PASSIVE |
438 | 31.41 |
RFQ |
Datasheet |
Tray | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | Without Backlight | 4.8V ~ 5.3V | 0.55mm W x 0.65mm H | Parallel/Serial | - | -40°C ~ 80°C | Yellow |
|
NHD-0216KZW-AB5OLED MODULE 32DIG 16 X 2 PASSIVE |
483 | 31.42 |
RFQ |
Datasheet |
Tray | - | Active | 32 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | Without Backlight | 4.8V ~ 5.3V | 0.55mm W x 0.65mm H | Parallel/Serial | - | -40°C ~ 80°C | Blue |
|
NHD-0440WH-ATFH-JT#LCD MOD 160DIG 40X4 TRANSFLCT WH |
665 | 31.96 |
RFQ |
Datasheet |
Bulk | - | Active | 160 | 40 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.89mm H x 2.78mm W | 190.00mm x 54.00mm x 13.60mm | 147.00mm L x 29.50mm W | LED - White | 4.75V ~ 5.25V | 0.50mm W x 0.55mm H | Parallel | ST7066-0A | -20°C ~ 70°C | Black |
|
NHD-0420E2Z-FSW-GBWLCD MOD 80DIG 20X4 TRANSFLCT WHT |
3,151 | 33.04 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 14.50mm | 123.00mm L x 42.50mm W | LED - White | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue |
|
NHD-0420E2Z-NSW-BBWLCD MOD 80DIG 20X4 TRANSMISV WHT |
2,256 | 33.84 |
RFQ |
Datasheet |
Box | - | Active | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 13.60mm | 123.50mm L x 43.00mm W | LED - White | 4.5V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | KS0066U | -20°C ~ 70°C | White |
|
NHD-0220DZW-AB5OLED MODULE 40DIG 20 X 2 |
3,825 | 34.11 |
RFQ |
Datasheet |
Bulk | - | Active | 40 | 20 x 2 | 5 x 8 Dots | OLED | - | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 9.80mm | 85.00mm L x 18.60mm W | - | 3V ~ 5.3V | 0.60mm W x 0.65mm H | Parallel/Serial | - | -40°C ~ 80°C | Blue |
|
NHD-0220DZW-AG5OLED MODULE 40DIG 20 X 2 PASSIVE |
389 | 34.11 |
RFQ |
Datasheet |
Tray | - | Active | 40 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 9.80mm | 85.00mm L x 18.60mm W | Without Backlight | 3V ~ 5.3V | 0.60mm W x 0.65mm H | Parallel/Serial | - | -40°C ~ 80°C | Green |
|
NHD-0420CW-AB3OLED MODULE 80DIG 20 X 4 PASSIVE |
2,311 | 36.27 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.77mm H x 2.97mm W | 92.00mm x 31.50mm x 2.50mm | 72.42mm L x 22.82mm W | - | 2.4V ~ 5.5V | 0.57mm W x 0.57mm H | Parallel, 8-Bit, I²C, SPI | US2066 | -40°C ~ 85°C | Blue |
|
NHD-0420CW-AY3OLED MODULE 80DIG 20 X 4 PASSIVE |
978 | 36.27 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.77mm H x 2.97mm W | 92.00mm x 31.50mm x 2.50mm | 72.42mm L x 22.82mm W | - | 2.4V ~ 5.5V | 0.57mm W x 0.57mm H | Parallel, 8-Bit, I²C, SPI | US2066 | -40°C ~ 85°C | Yellow |
|

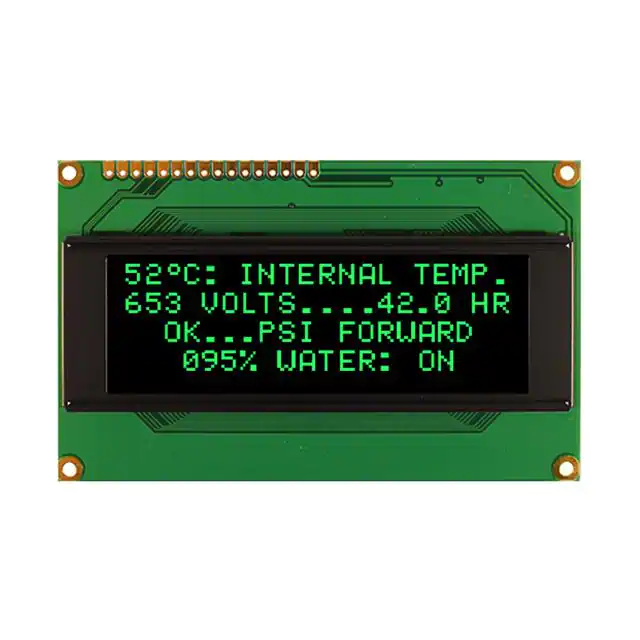

NHD-0420DZW-AG5OLED MODULE 80DIG 20 X 4 PASSIVE |
2,482 | 38.06 |
RFQ |
Datasheet |
Tray | - | Active | 80 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | Without Backlight | 3V ~ 5.3V | 0.54mm W x 0.55mm H | Parallel/Serial | - | -40°C ~ 80°C | Green |
|
NHD-0420DZW-AB5OLED MODULE 80DIG 20 X 4 PASSIVE |
3,480 | 38.23 |
RFQ |
Datasheet |
Bulk | - | Active | 80 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.75mm H x 2.90mm W | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | Without Backlight | 4.8V ~ 5.3V | 0.54mm W x 0.55mm H | Parallel/Serial | - | -40°C ~ 80°C | Blue |
|

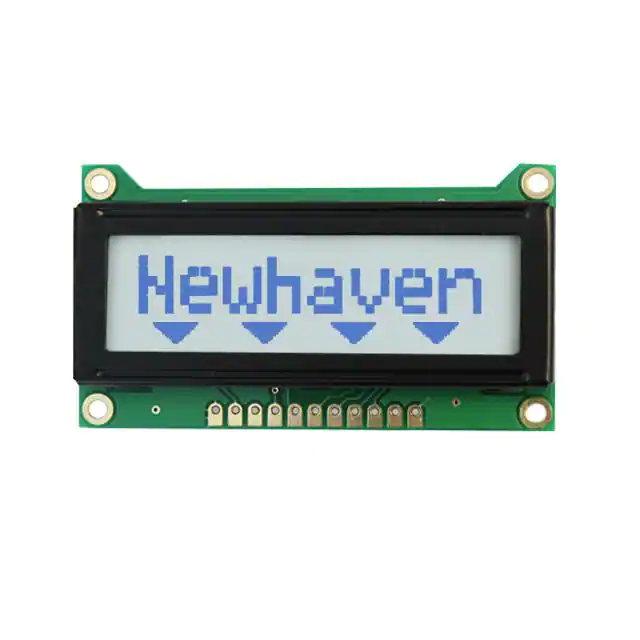

NHD-0108HZ-FSW-GBWLCD MOD 8DIG 8X1 TRANSFLECTV WHT |
3,602 | 9.63 |
RFQ |
Datasheet |
Box | - | Active | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 7.28mm H x 5.02mm W | 60.70mm x 33.85mm x 6.25mm | 51.20mm L x 14.70mm W | LED - White | 3.1V ~ 3.5V | 0.94mm W x 0.84mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|
NHD-0108CZ-FL-GBWLCD MOD 8DIG 8X1 TRANSFL YLW/GRN |
2,192 | 9.78 |
RFQ |
Datasheet |
Box | - | Active | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 7.71mm H x 4.20mm W | 69.00mm x 27.00mm x 13.00mm | 45.20mm L x 13.80mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.80mm W x 0.92mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

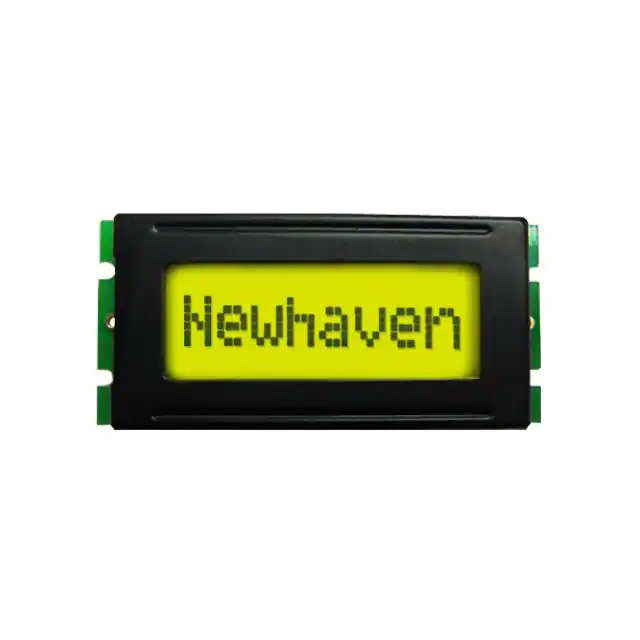

NHD-0108BZ-FSY-YBW-33V3LCD MOD 8DIG 8X1 TRANSFL YLW/GRN |
229 | 9.96 |
RFQ |
Datasheet |
Bulk | - | Active | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 7.10mm H x 3.40mm W | 53.00mm x 24.20mm x 11.00mm | 35.00mm L x 12.60mm W | LED - Yellow/Green | 3.3V | 0.60mm W x 0.80mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

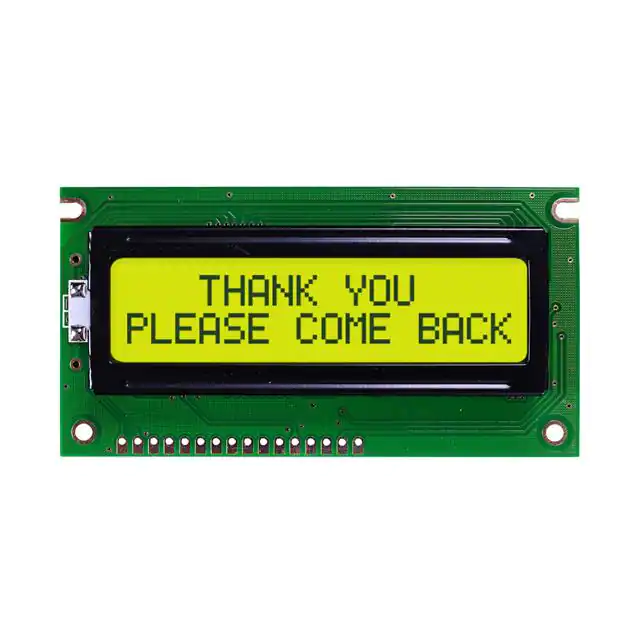

NHD-0216EZ-FL-YBWLCD MOD 32DIG 16X2 TRANS YLW/GRN |
765 | 12.66 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 85.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

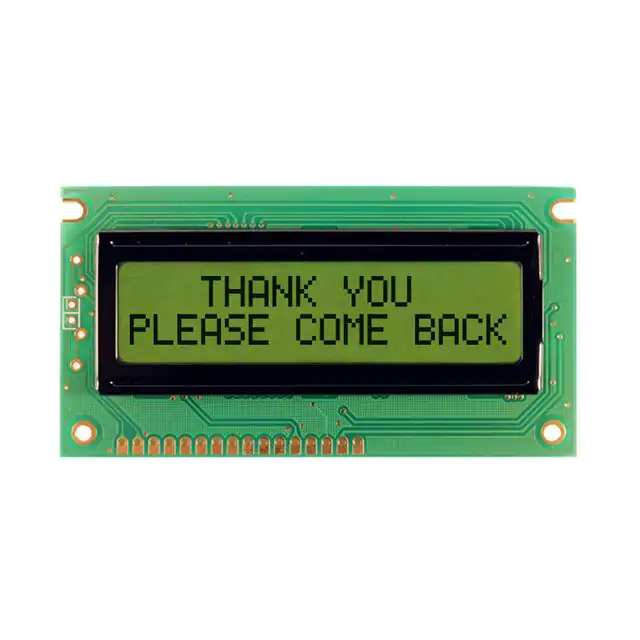

NHD-0216BZ-RN-YBWLCD MOD 32 DIG 16 X 2 REFLECTIVE |
722 | 10.21 |
RFQ |
Datasheet |
Box | - | Active | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.23mm H x 3.00mm W | 84.00mm x 44.00mm x 9.00mm | 64.50mm L x 16.40mm W | Without Backlight | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
|

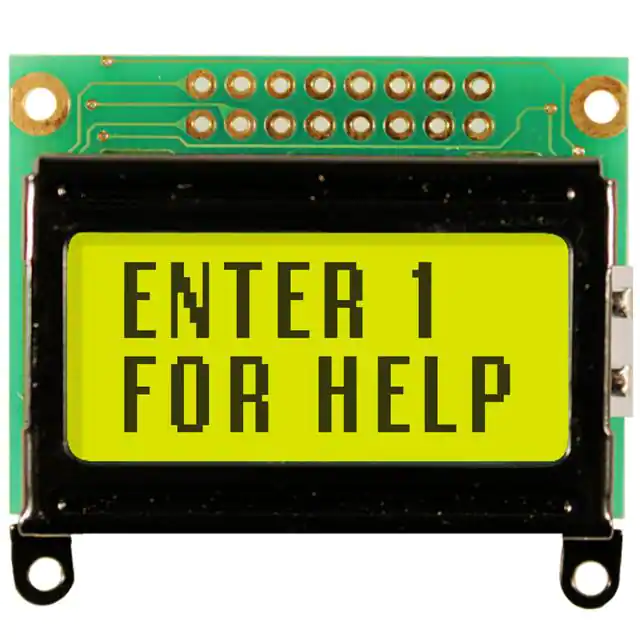

NHD-0208AZ-FL-YBWLCD MOD 16DIG 8X2 TRANSF YLW/GRN |
897 | 10.69 |
RFQ |
Datasheet |
Box | - | Active | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 40.00mm x 35.40mm x 13.50mm | 30.40mm L x 13.90mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Gray |
|

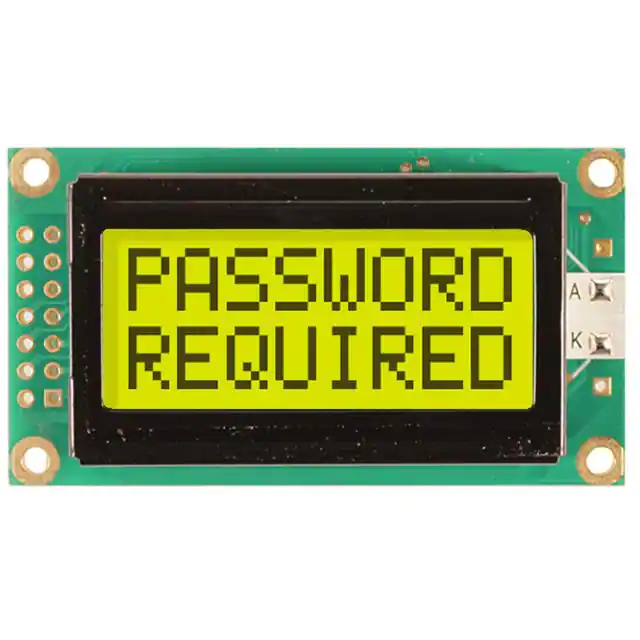

NHD-0208BZ-FL-YBWLCD MOD 16DIG 8X2 TRANSF YLW/GRN |
678 | 10.91 |
RFQ |
Datasheet |
Box | - | Active | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 13.00mm | 38.00mm L x 16.00mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.56mm W x 0.66mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue |
