| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCFFS3065AFDIODE SCHOTTKY 650V 30A DIE |
3,731 | 8.69 |
RFQ |
Tray | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | - | 0 ns | 200 µA @ 650 V | 650 V | 30A | 175°C (Max) | 1.75 V @ 30 A | ||
|

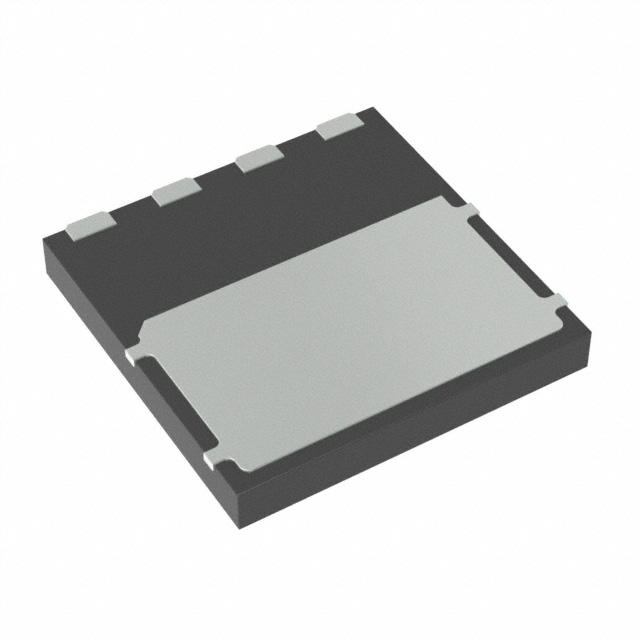

NTS1045MFST1GDIODE SCHOTTKY 45V 10A 5DFN |
3,709 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Last Time Buy | Surface Mount | 300pF @ 45V, 1MHz | - | 120 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 570 mV @ 10 A |
|
MUR260GDIODE GEN PURP 600V 2A AXIAL |
2,010 | 0.41 |
RFQ |
Datasheet |
Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 75 ns | 5 µA @ 600 V | 600 V | 2A | -65°C ~ 175°C | 1.35 V @ 2 A |
|
|
NTS12100MFST1GDIODE SCHOTTKY 100V 12A 5DFN |
3,529 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 55 µA @ 100 V | 100 V | 12A | -55°C ~ 150°C | 730 mV @ 12 A | |
|
|
NTS12100MFST3GDIODE SCHOTTKY 100V 12A 5DFN |
2,947 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 55 µA @ 100 V | 100 V | 12A | -55°C ~ 150°C | 730 mV @ 12 A | |
|
SURD8530T4G-VF01DIODE GEN PURP 300V 5A DPAK |
2,930 | 0.41 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 300 V | 300 V | 5A | -65°C ~ 175°C | 1.05 V @ 5 A | |
|
|
NRVTS1245EMFST3GDIODE SCHOTTKY 45V 12A 5DFN |
2,502 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 45 V | 45 V | 12A | -55°C ~ 175°C | 600 mV @ 12 A |
|
|
NRVFES6DUFR TO277 PN 6A 200V |
2,969 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 45 ns | 2 µA @ 200 V | 200 V | 6A | -55°C ~ 175°C | - |
|
|
NRVFES6GUFR TO277 PN 6A 400V |
2,454 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 45 ns | 2 µA @ 400 V | 400 V | 6A | -55°C ~ 175°C | - |
|
|
PCFFS15120AFDIODE SCHOTTKY 15A 1200V DIE |
2,128 | 15.34 |
RFQ |
Tray | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | - | 0 ns | 200 µA @ 1200 V | 1200 V | 15A | 175°C (Max) | 1.723 V @ 15 A | ||
|
NHP420LFST1GRECTIFIER 200V 4A |
2,074 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 500 nA @ 200 V | 200 V | 4A | -55°C ~ 175°C | 950 mV @ 4 A | |
|
|
NRVTS3060MFST3G60V30A TRENCH SCHOTTKY |
3,519 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 3140pF @ 1V, 1MHz | - | 100 µA @ 60 V | 60 V | 30A (DC) | -55°C ~ 175°C | 600 mV @ 30 A |
|
|
FFSD0865A650V 8A SIC SBD |
2,641 | 2.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 463pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 15A (DC) | -55°C ~ 175°C | 1.75 V @ 8 A | |
|
NRVBB4030T4GDIODE SCHOTTKY 30V 40A D2PAK |
3,140 | 2.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 350 µA @ 30 V | 30 V | 40A | -65°C ~ 175°C | 550 mV @ 40 A |
|
FFSM0465ASIC DIODE 650V 4A |
2,784 | 2.51 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 247pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 4A | -55°C ~ 175°C | 1.75 V @ 4 A | |
|
MBR2515LGDIODE SCHOTTKY 15V 25A TO220-2 |
3,487 | 2.62 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 15 mA @ 15 V | 15 V | 25A | -65°C ~ 125°C | 450 mV @ 25 A |
|
FFSPF0865A650V 8A SIC SBD |
3,777 | 2.67 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 463pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 8A (DC) | -55°C ~ 175°C | 1.75 V @ 8 A | |
|
FFSB0865ADIODE SBD 8A 650V D2PAK-3 |
2,906 | 2.68 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 463pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 15.4A (DC) | -55°C ~ 175°C | 1.75 V @ 8 A | |
|
|
PCFFS30120AFDIODE SCHOTTKY 1200V 30A DIE |
2,907 | 10.53 |
RFQ |
Tray | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 1740pf @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | 46A (DC) | -55°C ~ 175°C | 1.75 V @ 30 A | ||
|
NVDSH50120CSIC DIODE GEN2.0 1200V TO247-2L |
3,848 | 10.94 |
RFQ |
Datasheet |
Tray | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 3691pF @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | 53A (DC) | -55°C ~ 175°C | 1.75 V @ 50 A |
