| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGF1CDIODE GEN PURP 150V 1A SMA |
2,039 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 10 µA @ 150 V | 150 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|

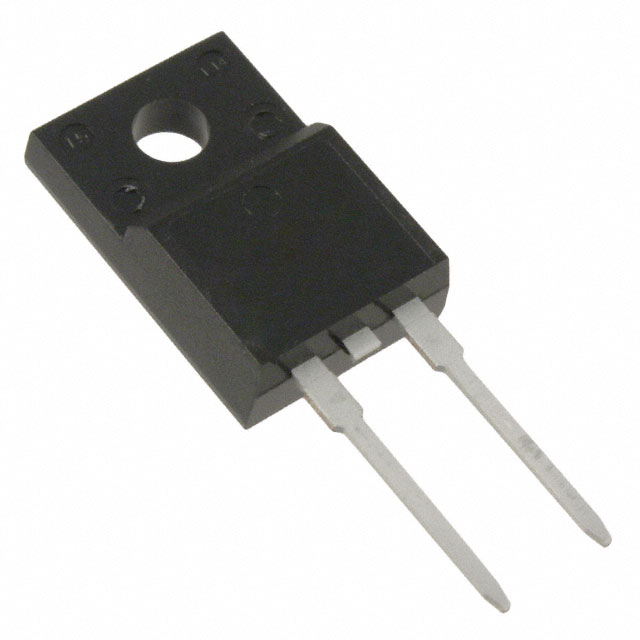

FFPF20UP40SDIODE GEN PURP 400V 20A TO220F |
3,306 | 1.49 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 50 ns | 50 µA @ 400 V | 400 V | 20A | -55°C ~ 150°C | 1.4 V @ 20 A | |
|
RUR1S1560S9ADIODE GEN PURP 600V 15A D2PAK |
3,998 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 60 ns | 100 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 1.5 V @ 15 A | |
|

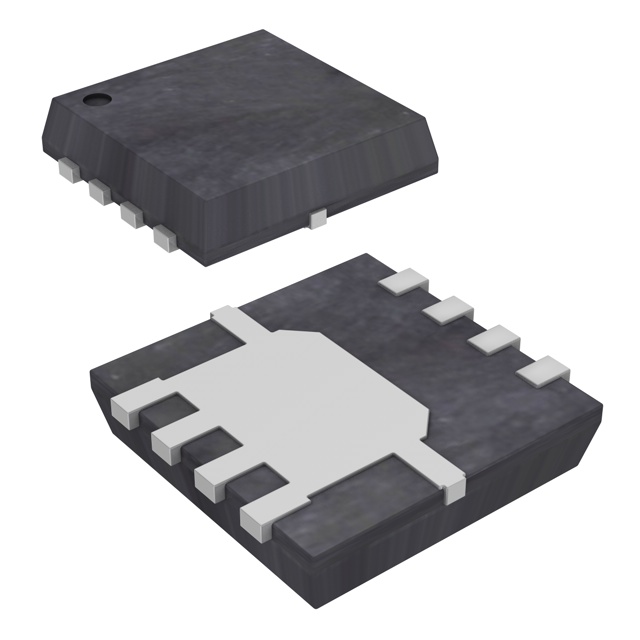

NRVTS5100ETFSTWGDIODE SCHOTTKY 8WDFN |
3,597 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 26.5pF @ 100V, 1MHz | - | 50 µA @ 100 V | 100 V | 5A | -65°C ~ 175°C | 1 V @ 5 A |
|

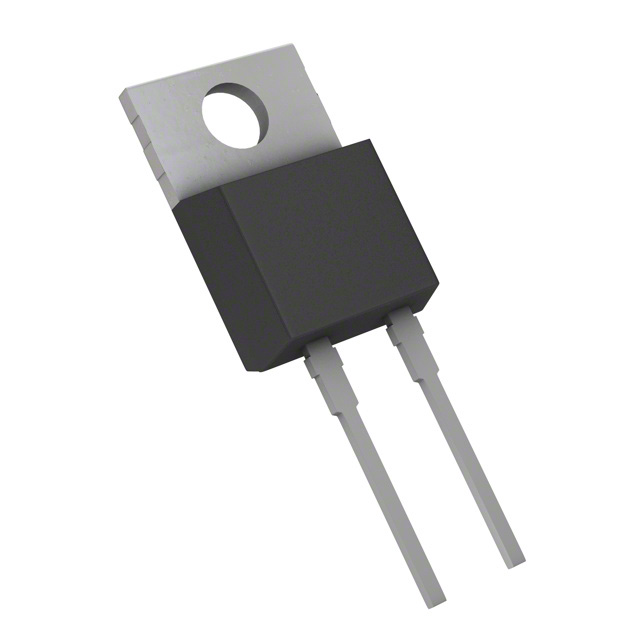

ISL9R1560P2-F085DIODE GEN PURP 600V 15A TO220AC |
2,858 | 1.54 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, Stealth™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 100 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 2.2 V @ 15 A |
|
FFSB10120ADIODE SBD 10A 120V D2PAK-3 |
2,280 | 4.44 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 612pF @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | 21A (DC) | -55°C ~ 175°C | 1.75 V @ 10 A | |
|
NTS1260MFST1GDIODE SCHOTTKY 60V 12A 5DFN |
3,633 | 0.28 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 90 µA @ 60 V | 60 V | 12A | -55°C ~ 150°C | 600 mV @ 12 A | |
|
NRVBM120ET1GDIODE SCHOTTKY 20V 1A POWERMITE |
65,872 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | POWERMITE® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 nA @ 5 V | 20 V | 1A | -65°C ~ 150°C | 595 mV @ 2 A |
|
EGP20CDIODE GEN PURP 150V 2A DO15 |
2,433 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 70pF @ 4V, 1MHz | 50 ns | 5 µA @ 150 V | 150 V | 2A | -65°C ~ 150°C | 950 mV @ 2 A | |
|
PCFFS08120AFDIODE SCHOTTKY 8A 1200V DIE |
2,141 | 4.87 |
RFQ |
Tray | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | - | 0 ns | 200 µA @ 1200 V | 1200 V | 8A | 175°C (Max) | 1.723 V @ 20 A | ||
|
FFSP4065BDN-F085SIC DIODE 650V 40A |
3,281 | 8.45 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 866pF @ 1V, 100kHz | 0 ns | 40 µA @ 650 V | 650 V | 20A (DC) | -55°C ~ 175°C | 1.7 V @ 20 A |
|
NRTS1560PFST3GDIODE SCHOTTKY 15A 60V TO277-3 |
2,352 | 0.39 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1400pF @ 1V, 1MHz | - | 10 µA @ 60 V | 60 V | 15A | -55°C ~ 175°C | 640 mV @ 15 A | ||
|
|
NRVHP0620PFST3GDIODE SCHOTTKY 6A 200V TO277-3 |
3,170 | 0.39 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
SSURHD8560W1T4GDIODE GEN PURP 600V 5A DPAK |
2,512 | 0.39 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 10 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 2.7 V @ 5 A | ||
|
SURS8320T3GDIODE GEN PURP 200V 3A SMC |
3,307 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Last Time Buy | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 875 mV @ 3 A | |
|
SB580DIODE SCHOTTKY 80V 5A DO201AD |
3,059 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Last Time Buy | Through Hole | 380pF @ 4V, 1MHz | - | 500 µA @ 80 V | 80 V | 5A | -55°C ~ 150°C | 850 mV @ 5 A | |
|
FFSH20120A-F155SIC DIODE GEN1.0 TO247-2L LL |
2,055 | 8.63 |
RFQ |
Datasheet |
Tray | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1220pF @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | 30A (DC) | -55°C ~ 175°C | 1.75 V @ 20 A | |
|
RURD660S9ADIODE GEN PURP 600V 6A TO252AA |
2,505 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Last Time Buy | Surface Mount | - | 60 ns | 100 µA @ 600 V | 600 V | 6A | -65°C ~ 175°C | 1.5 V @ 6 A | |
|
|
NTS12100EMFST3GDIODE SCHOTTKY 100V 12A 5DFN |
2,965 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 55 µA @ 100 V | 100 V | 12A | -55°C ~ 150°C | 730 mV @ 12 A | |
|
MUR140GDIODE GEN PURP 400V 1A AXIAL |
3,463 | 0.40 |
RFQ |
Datasheet |
Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 75 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.25 V @ 1 A |
