| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBAS16XV2T5GSS SWITCHING DIODE SOD523 |
2,573 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 6 ns | 1 µA @ 100 V | 100 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 150 mA |
|

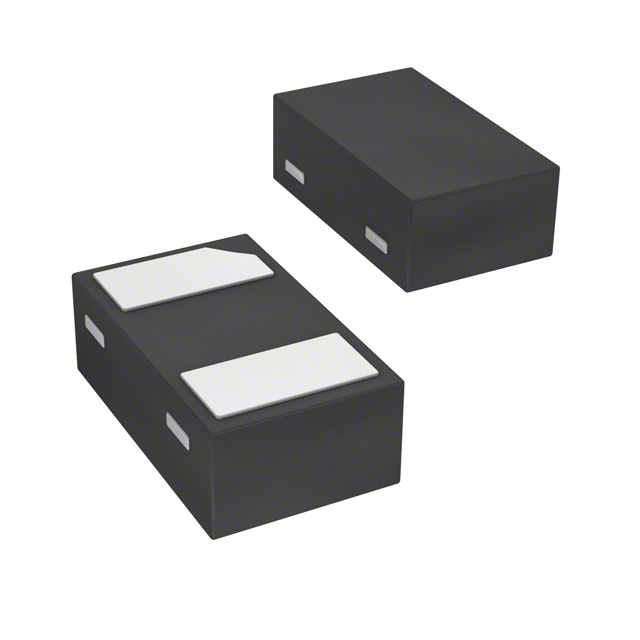

NSR05T404MX2T5GDIODE SCHOTTKY 40V 500MA X2DFN2 |
3,750 | 0.08 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 1V, 1MHz | 13 ns | 85 µA @ 40 V | 40 V | 500mA (DC) | -55°C ~ 150°C | 630 mV @ 500 mA | ||
|
FFSH15120A1200V 15A SIC SBD |
3,029 | 10.46 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 936pF @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | 26A (DC) | -55°C ~ 175°C | 1.75 V @ 15 A | |
|
|
FFSH30120A1200V 30A SIC SBD |
2,241 | 17.95 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1740pF @ 1V, 100kHz | 0 ns | 200 µA @ 1200 V | 1200 V | 46A (DC) | -55°C ~ 175°C | - | |
|
BAS21M3T5GDIODE GEN PURP 250V 200MA SOT723 |
2,184 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
NSVBAS21M3T5GDIODE GEN PURP 250V 200MA SOT723 |
3,316 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA |
|
NSVBAT54LT1GDIODE SCHOTTKY 30V 200MA SOT23-3 |
2,507 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -55°C ~ 125°C | 800 mV @ 100 mA | |
|
NRVA4003T3GDIODE GEN PURP 1A 300V SMA |
3,178 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 10 µA @ 300 V | 300 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
.jpg)
|
NSR01F30NXT5GDIODE SCHOTTKY 30V 100MA 2DSN |
3,839 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 5V, 1MHz | - | 50 µA @ 30 V | 30 V | 100mA (DC) | 125°C (Max) | 500 mV @ 100 mA | |
|
|
NSVR02L40MX2WT5G40V LOW IR 150C TJMAX SCHOTTKY D |
2,059 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount, Wettable Flank | 2pF @ 1V, 1MHz | 4 ns | 500 nA @ 40 V | 40 V | 200mA (DC) | -55°C ~ 150°C | 1.2 V @ 100 mA |
|
|
SB05-03C-TB-EDIODE SCHOTTKY 30V 500MA 3CP |
2,586 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 16pF @ 10V, 1MHz | 10 ns | 30 µA @ 15 V | 30 V | 500mA | -55°C ~ 125°C | 550 mV @ 500 mA | |
|
NRVUS2AADIODE GPP 1.5A SMA DO-214AC |
3,882 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A |
|
NSVR201MXT5GRF SCHOTTKY BARRIER DIODE |
3,865 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 0.15pF @ 0V, 1MHz | - | 10 µA @ 2 V | 2 V | 50mA (DC) | -55°C ~ 150°C | 320 mV @ 1 mA |
|
|
NRVBA130LNT3GDIODE SCHOTTKY 1A 30V 1201 SMA2 |
2,392 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 30 V | 30 V | 1A | -55°C ~ 125°C | 410 mV @ 1 A |
|
SBRS8130LNT3GDIODE SCHOTTKY 30V 1A 1202-SMB2 |
3,625 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 30 V | 30 V | 2A | -65°C ~ 125°C | 445 mV @ 2 A |
|
|
NRVUS2BADIODE GPP 1.5A SMA DO-214AC |
2,896 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 50 ns | 5 µA @ 100 V | 100 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A |
|
|
NRVUS2DADIODE GPP 1.5A SMA DO-214AC |
3,326 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 50 ns | 5 µA @ 200 V | 200 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A |
|
|
NRVUS2FADIODE GPP 1.5A SMA DO-214AC |
3,127 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 50 ns | 5 µA @ 300 V | 300 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A |
|
|
NRVUS2GADIODE GPP 1.5A SMA DO-214AC |
3,480 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 75 ns | 5 µA @ 400 V | 400 V | 1.5A | -55°C ~ 150°C | 1.3 V @ 1.5 A |
|
|
NRVUS2JADIODE GPP 1.5A SMA DO-214AC |
3,978 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 75 ns | 5 µA @ 600 V | 600 V | 1.5A | -55°C ~ 150°C | 1.7 V @ 1.5 A |
