| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

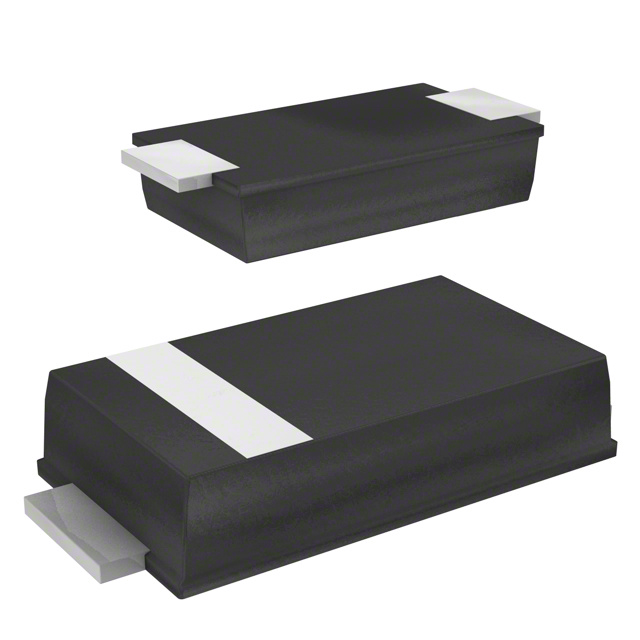

NRVUS2KADIODE GPP 1.5A SMA DO-214AC |
2,270 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 75 ns | 5 µA @ 800 V | 800 V | 1.5A | -55°C ~ 150°C | 1.7 V @ 1.5 A |
|
FSV240AFDIODE SCHOTTKY 40V 2A SMAF |
3,157 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Last Time Buy | Surface Mount | 98pF @ 4V, 1MHz | 9.65 ns | 100 µA @ 40 V | 40 V | 2A | -55°C ~ 150°C | 500 mV @ 2 A | |
|
BAT54XV2T1HDIODE SCHOTTKY 30V 200MA SOD523 |
3,352 | 0.04 |
RFQ |
Tape & Reel (TR),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -55°C ~ 125°C | 800 mV @ 100 A | ||
|
FDH400TRDIODE GEN PURP 150V 200MA DO35 |
3,523 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2pF @ 0V, 1MHz | 50 ns | 100 nA @ 150 V | 150 V | 200mA | 175°C (Max) | 1.1 V @ 300 mA | |
|
|
FDH444TRDIODE GEN PURP 125V 200MA DO35 |
95,000 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2.5pF @ 0V, 1MHz | 60 ns | 50 nA @ 100 V | 125 V | 200mA | 175°C (Max) | 1.2 V @ 300 mA | |
|
NSVBAS16W1T1GSS SC88 SWITCHING DIODE |
2,429 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 3 ns | 1 µA @ 100 V | 100 V | 200mA (DC) | 150°C (Max) | 1.2 V @ 100 mA |
|
BASH21LT1GHIGH VOLT DIODE |
2,355 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA (DC) | -55°C ~ 175°C | 1.25 V @ 200 mA | |
|
SMMSD914T3GDIODE GEN PURP 100V 200MA SOD123 |
310,000 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA | -55°C ~ 150°C | 1 V @ 10 mA | |
|
NSR0320XV6T5GDIODE SCHOTTKY 23V 1A SOT563 |
48,000 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 35pF @ 5V, 1MHz | - | 50 µA @ 15 V | 23 V | 1A (DC) | 125°C (Max) | 500 mV @ 900 mA | |
|
NRVB440MFST3GDIODE SCHOTTKY 40V 4A 5DFN |
30,000 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 800 µA @ 40 V | 40 V | 4A | -55°C ~ 175°C | 650 mV @ 4 A | |
|
NRVBS3200NT3GDIODE SCHOTTKY 3A 200V 1202 SMB2 |
3,500 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 840 mV @ 3 A |
|
NTSAF345T3GDIODE SCHOTTKY 45V 3A SMA-FL |
2,553 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | - | 45 V | 3A | -65°C ~ 150°C | 630 mV @ 3 A |
|
|
NRVB540MFST3GDIODE SCHOTTKY 40V 5A 5DFN |
2,112 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2 mA @ 40 V | 40 V | 5A | -40°C ~ 175°C | 580 mV @ 5 A | |
|
SBE002-TL-WDIODE SCHOTTKY 50V 1A 6CPH |
2,129 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 52pF @ 10V, 1MHz | 10 ns | 80 µA @ 25 V | 50 V | 1A | -55°C ~ 125°C | 550 mV @ 1 A | |
|
SS2003M-TL-EDIODE SCHOTTKY 30V 2A 6MCPH |
574,184 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Not For New Designs | Surface Mount | 75pF @ 10V, 1MHz | 20 ns | 1.25 mA @ 15 V | 30 V | 2A | -55°C ~ 125°C | 400 mV @ 2 A | |
|
|
MBR5100MFST1GDIODE SCHOTTKY 100V 5A 5DFN |
3,549 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 10 µA @ 100 V | 100 V | 5A | -55°C ~ 175°C | 980 mV @ 5 A | |
|
NSR02L40MX2WT5G40V LOW IR 150C TJMAX SCHOTTKY D |
3,522 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount, Wettable Flank | 2pF @ 1V, 1MHz | 4 ns | 500 nA @ 40 V | 40 V | 200mA (DC) | -55°C ~ 150°C | 1.2 V @ 100 mA | |
|
|
NSVBAS116LT3GDIODE GEN PURP 75V 200MA SOT23-3 |
3,317 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 3 µs | 5 nA @ 75 V | 75 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 150 mA |
|
SURA8205T3G-VF01DIODE GEN PURP 50V 2A SMA |
2,026 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 2 µA @ 50 V | 50 V | 2A | -65°C ~ 175°C | 940 mV @ 2 A |
|
|
NSVR02HL40MX2WT5G40V LOW IR 175C TJMAX SCHOTTKY D |
2,874 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount, Wettable Flank | 2pF @ 1V, 1MHz | 4 ns | 500 nA @ 40 V | 40 V | 200mA (DC) | -55°C ~ 175°C | 1.2 V @ 100 mA |
