| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMR3-10 TR13 PBFREEDIODE GEN PURP 1000V 3A SMC |
808 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 1000 V | 1000 V | 3A | -65°C ~ 175°C | 1.2 V @ 3 A | |
|
|
CMSH5-100HV TR13 PBFREEDIODE SCHOTTKY 100V 5A SMC |
2,711 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 100 V | 100 V | 5A | -65°C ~ 175°C | 800 mV @ 5 A | |
|

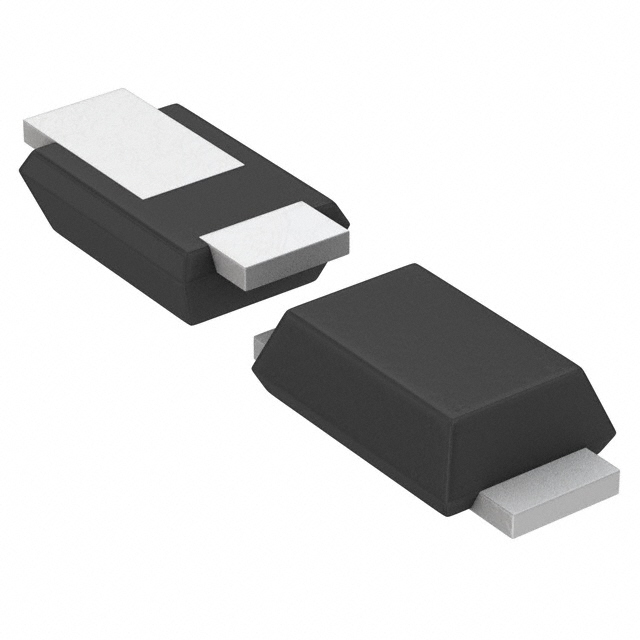

CMIDSH1-3 TR PBFREEDIODE SCHOTTKY 30V 1A SOD323F |
981 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 4V, 1MHz | - | 100 µA @ 30 V | 30 V | 1A | -65°C ~ 150°C | 520 mV @ 1 A | |
|
CMHSH5-4 TR PBFREEDIODE SCHOTTKY 40V 500MA SOD123 |
3,262 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 4V, 1MHz | - | 20 µA @ 40 V | 40 V | 500mA | -65°C ~ 125°C | 620 mV @ 1 A | |
|
CMSH1-60M TR13 PBFREEDIODE SCHOTTKY 60V 1A SMA |
2,702 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 43pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 1A | -65°C ~ 150°C | 700 mV @ 1 A | |
|
CTLHR10-06 TR13 PBFREEDIODE GEN PURP 600V 10A TLM364 |
2,843 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 42pF @ 4V, 1MHz | 25 ns | 10 µA @ 600 V | 600 V | 10A | -65°C ~ 175°C | 1.7 V @ 10 A | |
|
|
CMHD4448 TR PBFREEDIODE GEN PURP 75V 250MA SOD123 |
3,450 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 75 V | 250mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|
CMSH2-40 TR13 PBFREEDIODE SCHOTTKY 40V 2A SMB |
3,325 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 150°C | 500 mV @ 2 A | |
|
|
CMHD2003 TR PBFREEDIODE GEN PURP 250V 200MA SOD123 |
2,442 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|
CMAD6001 TR PBFREEDIODE GEN PURP 75V 250MA SOD923 |
3,136 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 3 µs | 500 pA @ 75 V | 75 V | 250mA | -65°C ~ 150°C | 1.1 V @ 100 mA | |
|
CMMR1U-08 TR PBFREEDIODE GEN PURP 800V 1A SOD123F |
2,661 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 9pF @ 4V, 1MHz | 100 ns | 1 µA @ 800 V | 800 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A | |
|
|
CMSH1-40 TR13 PBFREEDIODE SCHOTTKY 40V 1A SMB |
3,861 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 100pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 1A | -65°C ~ 150°C | 500 mV @ 1 A | |
|
|
CMR1U-02M TR13 PBFREEDIODE GEN PURP 200V 1A SMA |
5,000 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
CMSH2-100 TR13 PBFREEDIODE SCHOTTKY 100V 2A SMB |
2,368 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 500 µA @ 100 V | 100 V | 2A | -65°C ~ 150°C | 850 mV @ 2 A | |
|
|
CMR5H-06 TR13 PBFREEDIODE GEN PURP 600V 5A SMC |
2,662 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 17pF @ 4V, 1MHz | 22 ns | 1 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 1.7 V @ 5 A | |
|
CMOD2004 TR PBFREEDIODE GEN PURP 240V 200MA SOD523 |
17,105 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 240 V | 240 V | 200mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|
CFSH01-30L TR PBFREEDIODE SCHOTTKY 30V 100MA SOD882 |
3,815 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 4pF @ 0V, 1MHz | - | 7 µA @ 10 V | 30 V | 100mA | -65°C ~ 125°C | 370 mV @ 10 mA | |
|
|
CMR1U-02FL TR13 PBFREEDIODE GEN PURP 200V 1A SMB |
3,241 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 4V, 1MHz | 50 ns | 1 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
CMSH2-20 TR13 PBFREEDIODE SCHOTTKY 20V 2A SMB |
3,371 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 4V, 1MHz | - | 500 µA @ 20 V | 20 V | 2A | -65°C ~ 150°C | 500 mV @ 2 A | |
|
|
CMSH3-40M TR13 PBFREEDIODE SCHOTTKY 40V 3A SMB |
2,848 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 280pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -65°C ~ 150°C | 550 mV @ 3 A |
