| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF4002 TR TIN/LEADDIODE GEN PURP 100V 1A DO41 |
4,997 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 10 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
1N4005GPP TR TIN/LEADRECTIFIER-GENERAL PURPOSE |
4,965 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
CMR1-04 TR13 PBFREEDIODE GEN PURP 400V 1A SMB |
3,301 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | - | 10 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
CLL914 TR13 PBFREEDIODE GEN PURP 75V 250MA SOD80 |
1,565 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 75 V | 250mA | -65°C ~ 200°C | 1 V @ 10 mA | |
|
CMDFSHC5-100 TR13 PBFREERECTIFIER-SCHOTTKY (>=1A) |
1,141 | 0.45 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 5A | -55°C ~ 125°C | 850 mV @ 5 A | ||
|
|
1N486B TR TIN/LEADDIODE GEN PURP 250V 200MA DO35 |
9,968 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 50 nA @ 250 V | 250 V | 200mA | -65°C ~ 200°C | 1 V @ 100 mA | |
|
|
CMR1-06 TR13 PBFREEDIODE GEN PURP 600V 1A SMB |
4,402 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | - | 10 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
CMR1F-06M TR13 PBFREEDIODE GEN PURP 600V 1A SMA |
1,730 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
CMPD1001 TR PBFREEDIODE GEN PURP 90V 250MA SOT23 |
1,102 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 35pF @ 0V, 1MHz | 50 ns | 100 nA @ 90 V | 90 V | 250mA | -65°C ~ 150°C | 1 V @ 200 mA | |
|

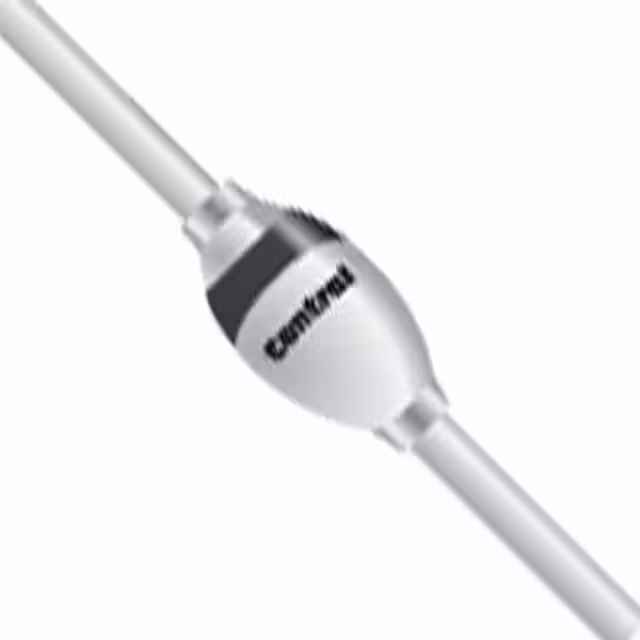

1N5060 TR PBFREEDIODE GEN PURP 400V 1A GPR-1A |
4,402 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.2 V @ 1 A | |
|
|
CMSH5-150HV TR13 PBFREEDIODE SCHOTTKY 150V 5A SMC |
1,887 | 1.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 150 V | 150 V | 5A | -60°C ~ 175°C | 800 mV @ 5 A | |
|
1N5061 TR PBFREEDIODE GEN PURP 600V 1A GPR-1A |
3,753 | 1.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.2 V @ 1 A | |
|
CTLSH15-30M364 TR13 PBFREEDIODE SCHOTTKY 30V 15A 3TLM |
2,737 | 1.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 920pF @ 4V, 1MHz | - | 100 µA @ 30 V | 30 V | 15A | -55°C ~ 150°C | 560 mV @ 15 A | |
|
|
CMSH1-150HE TR13 PBFREEDIODE SCHOTTKY 150V 1A SMA |
316 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 150 V | 150 V | 1A | -65°C ~ 150°C | 900 mV @ 1 A | |
|
|
CMPSH05-4 TR PBFREEDIODE SCHOTTKY 40V 500MA SOT23 |
603 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 1V, 1MHz | - | 20 µA @ 10 V | 40 V | 500mA | -65°C ~ 150°C | 470 mV @ 500 mA | |
|
|
CMR1U-01 TR13 PBFREEDIODE GEN PURP 100V 1A SMB |
315 | 0.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 50 ns | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
CMR3U-02 TR13 PBFREEDIODE GEN PURP 200V 3A SMC |
2,530 | 1.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1 V @ 3 A | |
|
|
CMSH3-20M TR13 PBFREEDIODE SCHOTTKY 20V 3A SMB |
519 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 280pF @ 4V, 1MHz | - | 500 µA @ 20 V | 20 V | 3A | -65°C ~ 150°C | 550 mV @ 3 A | |
|
|
CMR3U-04M TR13 PBFREEDIODE GEN PURP 400V 3A SMC |
359 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.25 V @ 3 A | |
|
|
CMPSH-3 TR PBFREEDIODE SCHOTTKY 30V 100MA SOT23 |
336 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 1V, 1MHz | 5 ns | 500 nA @ 25 V | 30 V | 100mA (DC) | -65°C ~ 150°C | 1 V @ 100 mA |
