| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMPD2004 TR PBFREEDIODE GEN PURP 240V 200MA SOT23 |
1,182 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 240 V | 240 V | 200mA | -65°C ~ 150°C | 1.25 V @ 200 mA | |
|
1N4002SP TR TIN/LEADRECTIFIER-GENERAL PURPOSE |
4,995 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
1N4002SP BK TIN/LEADRECTIFIER-GENERAL PURPOSE |
1,968 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
CTLSH01-30 TR PBFREEDIODE SCHOTTKY 30V 100MA 2DFN |
10,360 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 0V, 1MHz | - | 300 nA @ 10 V | 30 V | 100mA | -65°C ~ 125°C | 460 mV @ 10 mA | |
|
CMR1U-06FL TR13 PBFREEDIODE GEN PURP 600V 1A SMB |
2,605 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | 50 ns | 1 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
CMR3-04 TR13 PBFREEDIODE GEN PURP 400V 3A SMC |
2,368 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.2 V @ 3 A | |
|

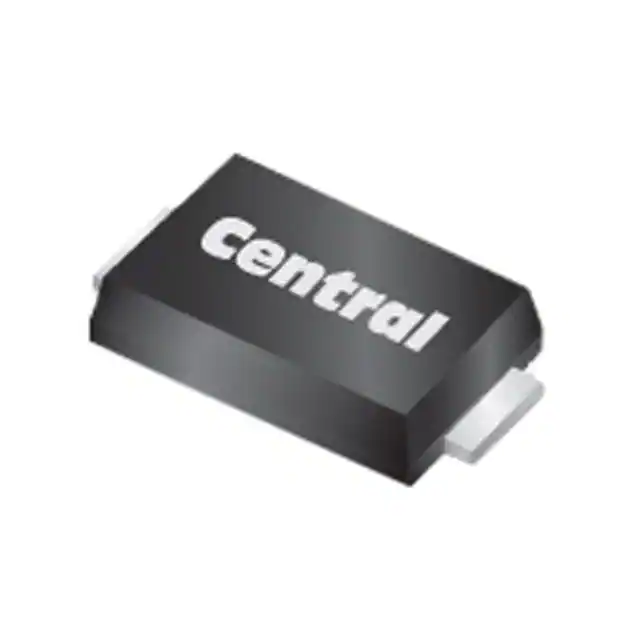

CMSH3-100MFL TR13 PBFREEDIODE SCHOTTKY 100V 3A SMAFLAT |
4,135 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 50 µA @ 100 V | 100 V | 3A | -65°C ~ 150°C | 800 mV @ 3 A | |
|
CMOSH-3 TR13 PBFREEDIODE SCHOTTKY 30V 100MA SOD523 |
7,981 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 1V, 1MHz | 5 ns | 500 nA @ 25 V | 30 V | 100mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|
|
CMR2U-04 TR13 PBFREEDIODE GEN PURP 400V 2A SMB |
2,085 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 28pF @ 4V, 1MHz | 50 ns | 10 µA @ 400 V | 400 V | 2A | -65°C ~ 150°C | 1.4 V @ 2 A | |
|
CMR1U-04M TR13 PBFREEDIODE GEN PURP 400V 1A SMA |
1,241 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.25 V @ 1 A | |
|
CTLSH4-200M364 TR13 PBFREEDIODE SCHOTTKY 200V 4A 3TLM |
1,492 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 140pF @ 4V, 1MHz | - | 1 µA @ 200 V | 200 V | 4A | -55°C ~ 150°C | 840 mV @ 4 A | |
|
CSHD3-60 TR13 PBFREEDIODE SCHOTTKY 60V 3A DPAK |
1,888 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 30 µA @ 60 V | 60 V | 3A | -65°C ~ 150°C | 750 mV @ 3 A | |
|
|
CMR2U-06 TR13 PBFREEDIODE GEN PURP 600V 2A SMB |
1,810 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 28pF @ 4V, 1MHz | 100 ns | 10 µA @ 600 V | 600 V | 2A | -60°C ~ 150°C | 1.7 V @ 2 A | |
|
|
CMR3U-06M TR13 PBFREEDIODE GEN PURP 600V 3A SMC |
1,066 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 100 ns | 5 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.4 V @ 3 A | |
|
|
CMSH2-20L TR13 PBFREEDIODE SCHOTTKY 20V 2A SMB |
1,207 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 4V, 1MHz | - | 500 µA @ 20 V | 20 V | 2A | -65°C ~ 150°C | 400 mV @ 2 A | |
|
|
CUD3-02 TR13 PBFREEDIODE GEN PURP 200V 4A DPAK |
2,429 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 20 µA @ 200 V | 200 V | 4A | -65°C ~ 150°C | 1.25 V @ 12 A | |
|
|
CMSH2-60M TR13 PBFREEDIODE SCHOTTKY 60V 2A SMA |
4,115 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 2A | -65°C ~ 150°C | 700 mV @ 2 A | |
|
|
CMSH3-100 TR13 PBFREEDIODE SCHOTTKY 100V 3A SMC |
2,973 | 1.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 3A | -65°C ~ 150°C | 800 mV @ 2 A | |
|
|
CMR3U-01 TR13 PBFREEDIODE GEN PURP 100V 3A SMC |
2,460 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1 V @ 3 A | |
|
|
CMSH5-200HV TR13 PBFREEDIODE SCHOTTKY 200V 5A SMC |
2,499 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 200 V | 200 V | 5A | -60°C ~ 175°C | 900 mV @ 5 A |
