| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N914 BK TIN/LEADTHROUGH-HOLE-DIODE-SWITCH |
2,484 | 0.17 |
RFQ |
Box | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 150mA | -65°C ~ 200°C | 1 V @ 10 mA | ||
|

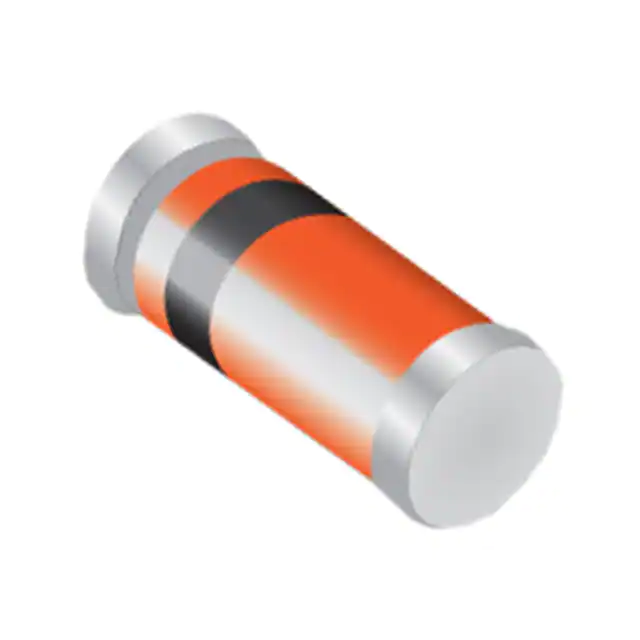

CLL4448 TR PBFREEDIODE GEN PURP 75V 250MA SOD80 |
17,750 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 75 V | 250mA | -65°C ~ 200°C | 1 V @ 100 mA | |
|
|
CLL914 TR PBFREEDIODE GEN PURP 75V 250MA SOD80 |
7,582 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 75 V | 250mA | -65°C ~ 200°C | 1 V @ 10 mA | |
|
|
CLL2003 TR PBFREEDIODE GEN PURP 250V 200MA SOD80 |
5,152 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA | -65°C ~ 200°C | 1.25 V @ 200 mA | |
|
CMR3-06 TR13 PBFREEDIODE GEN PURP 600V 3A SMC |
4,632 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.2 V @ 3 A | |
|
CMR2-06 TR13 PBFREEDIODE GEN PURP 600V 2A SMB |
8,207 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 600 V | 600 V | 2A | -65°C ~ 150°C | 1.1 V @ 2 A | |
|
CMMR1-06 TR PBFREEDIODE GEN PURP 600V 1A SOD123F |
33,014 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | - | 10 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|

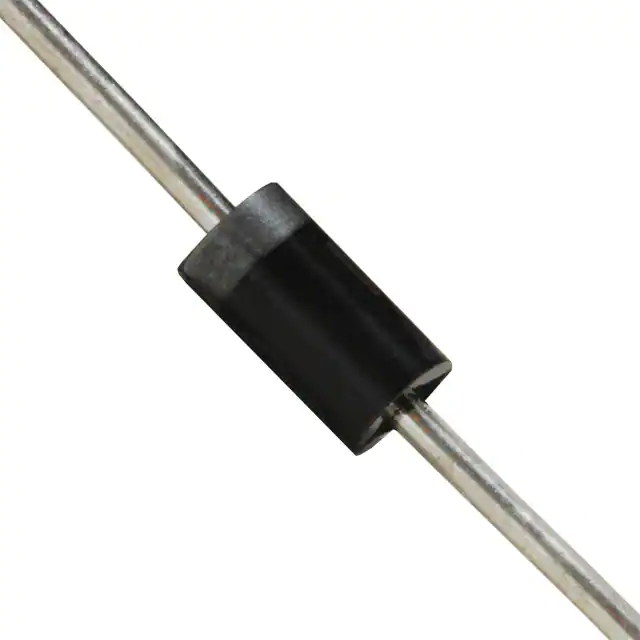

UF4005 TRDIODE GEN PURP 600V 1A DO41 |
4,885 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A | |
|
1N4148 TRDIODE GEN PURP 75V 150MA DO35 |
19,502 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 150mA | -65°C ~ 200°C | 1 V @ 10 mA | |
|
|
UF4007 TRDIODE GEN PURP 1000V 1A DO41 |
4,066 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 1000 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A | |
|
|
1N914B BK TIN/LEADTHROUGH-HOLE-DIODE-SWITCH |
1,042 | 0.16 |
RFQ |
Box | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 150mA | -65°C ~ 200°C | 1 V @ 20 mA | ||
|
CLLR1U-01 TR TIN/LEADDIODE GEN PURP 100V 1A MELF |
1,424 | 0.53 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | CLLR1U | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
1N4150 TR PBFREEDIODE GEN PURP 50V 200MA DO35 |
8,439 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2.5pF @ 0V, 1MHz | 6 ns | 100 nA @ 50 V | 50 V | 200mA | -65°C ~ 200°C | 1 V @ 200 mA | |
|
CMUSH05-4 TR PBFREEDIODE SCHOTTKY 40V 500MA SOT523 |
4,731 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 1V, 1MHz | - | 20 µA @ 10 V | 40 V | 500mA | -65°C ~ 150°C | 470 mV @ 500 mA | |
|
|
CLLRH-02 BK TIN/LEADRECTIFIER-GENERAL PURPOSE |
1,448 | 0.54 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | - | 200 nA @ 200 V | 200 V | 500mA | -65°C ~ 175°C | 1.1 V @ 500 mA | |
|
CFSH-4 TR PBFREEDIODE SCHOTTKY 40V 200MA SOD882 |
3,216 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA | -65°C ~ 125°C | 1 V @ 40 mA | |
|
CMSH3-150MFL TR13 PBFREEDIODE SCHOTTKY 150V 3A SMAFLAT |
8,052 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 90pF @ 4V, 1MHz | - | 50 µA @ 150 V | 150 V | 3A | -65°C ~ 150°C | 900 mV @ 3 A | |
|
|
CMR2-10 TR13 PBFREEDIODE GEN PURP 1000V 2A SMB |
2,508 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 1000 V | 1000 V | 2A | -65°C ~ 150°C | 1.1 V @ 2 A | |
|
|
CMMR1-04 TR PBFREEDIODE GEN PURP 400V 1A SOD123F |
1,740 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | - | 10 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
|
1N4454 TR PBFREEDIODE GEN PURP 75V 150MA DO35 |
6,887 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2pF @ 0V, 1MHz | 4 ns | 100 nA @ 50 V | 75 V | 150mA | -65°C ~ 200°C | 1 V @ 10 mA |
