| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSD10030ADIODE SCHOTTKY 300V 10A TO220-2 |
2,647 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 660pF @ 0V, 1MHz | 0 ns | 200 µA @ 300 V | 300 V | 10A | -55°C ~ 175°C | 1.4 V @ 10 A | |
|
|
CSD02060ADIODE SCHOTTKY 600V 3.5A TO220-2 |
2,116 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 120pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 3.5A | -55°C ~ 175°C | 1.8 V @ 2 A |
|
CSD02060GDIODE SCHOTTKY 600V 3.5A TO263-2 |
2,642 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 120pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 3.5A | -55°C ~ 175°C | 1.8 V @ 2 A |
|
|
CSD04060ADIODE SCHOTTKY 600V 7A TO220-2 |
2,860 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 220pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 7A | -55°C ~ 175°C | 1.8 V @ 4 A |
|
CSD04060EDIODE SCHOTTKY 600V 4A TO252-2 |
2,374 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 220pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 7A | -55°C ~ 175°C | 1.8 V @ 4 A |
|
|
CSD06060ADIODE SCHOTTKY 600V 10A TO220-2 |
3,291 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 340pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 10A | -55°C ~ 175°C | 1.8 V @ 6 A |
|
|
CSD06060GDIODE SCHOTTKY 600V 10A TO263-2 |
3,334 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 340pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 10A | -55°C ~ 175°C | 1.8 V @ 6 A |
|
|
CSD10060ADIODE SCHOTTKY 600V 16.5A TO220 |
2,798 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 550pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 16.5A | -55°C ~ 175°C | 1.8 V @ 10 A | |
|
|
CSD10060GDIODE SCHOTTKY 600V 16.5A TO263 |
3,985 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 550pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 16.5A | -55°C ~ 175°C | 1.8 V @ 10 A | |
|
|
C2D05120ADIODE SCHOTTKY 1.2KV 5A TO220-2 |
3,530 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 455pF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 17.5A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A |
|
|
C2D10120ADIODE SCHOTTKY 1.2KV 10A TO220-2 |
3,698 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 1000pF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 31A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
|
CSD08060ADIODE SCHOTTKY 600V 12.5A TO220 |
2,407 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 470pF @ 0V, 1MHz | 0 ns | 200 µA @ 600 V | 600 V | 12.5A | -55°C ~ 175°C | 1.8 V @ 8 A |
|

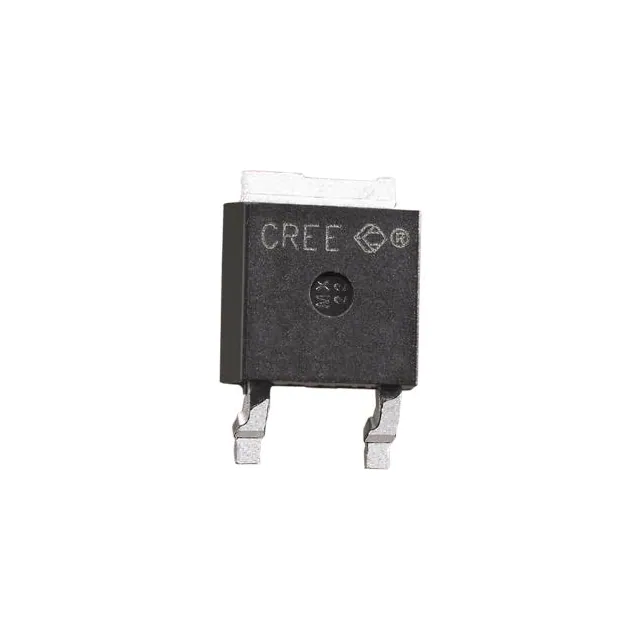

C6D04065EGEN 6 650V 4 A SBD |
3,495 | 1.98 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 256pF @ 0V, 1MHz | 0 ns | 20 µA @ 650 V | 650 V | 16A (DC) | -55°C ~ 175°C | 1.5 V @ 4 A |
|
C3D03060FDIODE SCHOTTKY 600V 3A TO220-F2 |
7,911 | 2.15 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 155pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 5A (DC) | -55°C ~ 175°C | 1.7 V @ 3 A |
|
|
C3D04065ADIODE SCHOTTKY 650V 4A TO220-2 |
3,549 | 2.73 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Through Hole | 251pF @ 0V, 1MHz | 0 ns | 60 µA @ 650 V | 650 V | 13.5A (DC) | -55°C ~ 175°C | 1.8 V @ 4 A |
|
|
C6D06065A6A 650V G6 ZREC SIC SCHOTTKY DIO |
399 | 3.82 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 394pF @ 0V, 1MHz | 0 ns | 30 µA @ 650 V | 650 V | 24A (DC) | -55°C ~ 175°C | 1.5 V @ 6 A |
|
|
C3D06065EDIODE SCHOTTKY 650V 2A TO252-2 |
5,114 | 4.11 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Surface Mount | 295pF @ 0V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 20A (DC) | -55°C ~ 175°C | 1.7 V @ 6 A |
|
|
C3D08065ADIODE SCHOTTKY 650V 8A TO220-2 |
383 | 5.49 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Through Hole | 441pF @ 0V, 1MHz | 0 ns | 60 µA @ 650 V | 650 V | 24A (DC) | -55°C ~ 175°C | 1.8 V @ 8 A |
|

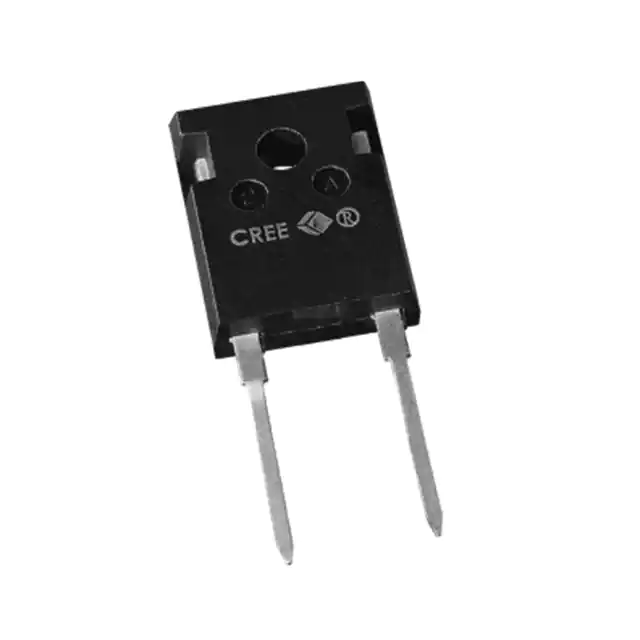

C4D15120HZRECTM 15A 1200V SIC SCHOTTKY DI |
379 | 18.04 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1.2nF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 39A (DC) | -55°C ~ 175°C | 1.8 V @ 15 A |
|
C3D25170HDIODE SCHOTTKY 1.7KV 26.3A TO247 |
597 | 54.60 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 2079pF @ 0V, 1MHz | 0 ns | 100 µA @ 1700 V | 1700 V | 26.3A (DC) | -55°C ~ 175°C | 2.5 V @ 25 A |
