| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3D04065E-TRDIODE SCHOTTKY 650V 4A TO252 |
2,446 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 251pF @ 0V, 1MHz | 0 ns | 60 µA @ 650 V | 650 V | 13.5A (DC) | -55°C ~ 175°C | 1.8 V @ 4 A |
|
|
C3D03060E-TRDIODE SCHOTTKY 600V 11.5A TO252 |
3,968 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 155pF @ 0V, 1MHz | - | 50 µA @ 600 V | 600 V | 11A (DC) | -55°C ~ 175°C | 1.7 V @ 3 A |
|
|
C3D03065E-TRDIODE SCHOTTKY 650V 11.5A TO252 |
3,264 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 155pF @ 0V, 1MHz | - | 50 µA @ 650 V | 650 V | 11A (DC) | -55°C ~ 175°C | 1.8 V @ 3 A |
|
|
C4D08120E-TRDIODE SCHOTTKY 1.2KV 24.5A TO252 |
2,498 | 5.49 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 560pF @ 0V, 1MHz | 0 ns | 250 µA @ 1200 V | 1200 V | 24.5A (DC) | -55°C ~ 175°C | 1.8 V @ 8 A |
|

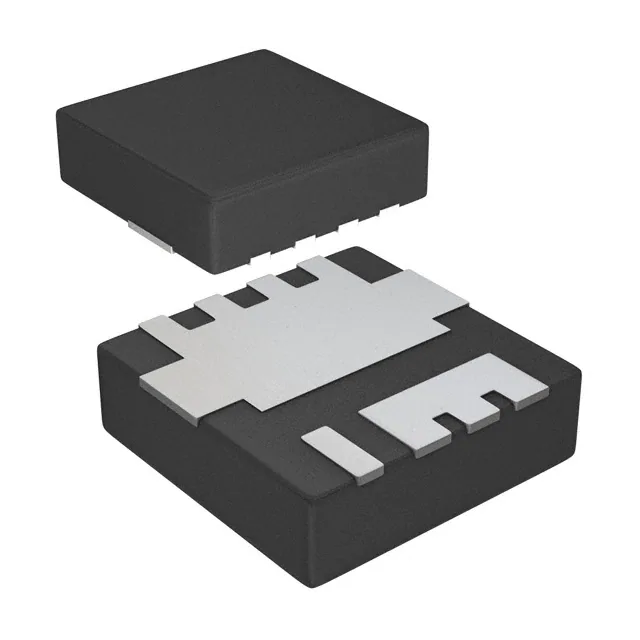

C3D1P7060QDIODE SCHOTTKY 600V 1.7A 10PQFN |
2,913 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 100pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 9.7A (DC) | -55°C ~ 160°C | 1.7 V @ 1.7 A |
|
C2D05120EDIODE SCHOTTKY 1.2KV 17.5A TO252 |
3,379 | 0.00 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 455pF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 17.5A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A |
|
C3D10170HDIODE SCHOTTKY 1.7KV 14.4A TO247 |
2,771 | 0.00 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 827pF @ 0V, 1MHz | 0 ns | 60 µA @ 1700 V | 1700 V | 14.4A (DC) | -55°C ~ 175°C | 2 V @ 10 A |
|
|
C2D05120E-TRDIODE SCHOTTKY 1.2KV 17.5A TO252 |
3,285 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 455pF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 17.5A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A |
|
CPW4-1200-S010B-FR6DIODE SCHOTTKY 1200V 10A |
3,434 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
CPW4-1200-S005B-FR6DIODE SCHOTTKY 1200V 5A |
2,152 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
CPW4-1200-S050B-FR6DIODE SCHOTTKY 1200V 50A |
3,975 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
CPW2-1200-S005B-FR1DIODE SCHOTTKY 1200V 5A |
2,157 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
|
CPW2-1200-S010B-FR1DIODE SCHOTTKY 1200V 10A |
3,218 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
|
CPW2-1200-S005BDIODE SCHOTTKY 1200V 5A |
2,594 | 0.00 |
RFQ |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 455pF @ 0V, 1MHz | 0 ns | - | - | 17.5A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A | |
|
|
CPW2-1200-S010BDIODE SCHOTTKY 1200V 10A |
3,206 | 0.00 |
RFQ |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 1000F @ 0V, 1MHz | 0 ns | - | - | 31A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A | |
|
|
CPW2-1200-S010BPDIODE SCHOTTKY 1200V 10A |
3,569 | 0.00 |
RFQ |
Tube | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
|
CPW2-1200-S010B-SKDIODE SCHOTTKY 1200V 10A |
2,956 | 0.00 |
RFQ |
Tube | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
C5D05170H5A, 1700V, G5 ZREC SIC SCHOTTKY |
2,046 | 0.00 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 425pF @ 0V, 1MHz | 0 ns | 200 µA @ 1700 V | 1700 V | 18A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A |
|
|
C5D10170H10A, 1700V, G5 ZREC SIC SCHOTTKY |
2,265 | 0.00 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 830pF @ 0V, 1MHz | 0 ns | 200 µA @ 1700 V | 1700 V | 33A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
|
C5D25170H25A, 1700V, G5 ZREC SIC SCHOTTKY |
2,624 | 0.00 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 1950pF @ 0V, 1MHz | 0 ns | 200 µA @ 1700 V | 1700 V | 70A (DC) | -55°C ~ 175°C | 1.8 V @ 25 A |
