| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E4D10120AE SERIES, 10 AMP, 1200V G4 SCHOT |
3,943 | 13.90 |
RFQ |
Datasheet |
Tube | E-Series, Automotive | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 777pF @ 0V, 1MHz | - | 200 µA @ 1200 V | 1200 V | 33A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
E3D08065G650V AUTOMOTIVE SIC DIODE |
829 | 4.05 |
RFQ |
Datasheet |
Tube | E-Series, Automotive | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 369pF @ 0V, 1MHz | 0 ns | 51 µA @ 650 V | 650 V | 22A (DC) | -55°C ~ 175°C | 1.8 V @ 8 A |
|
E3D20065D650V AUTOMOTIVE SIC DIODE |
420 | 12.79 |
RFQ |
Datasheet |
Tube | E-Series, Automotive | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 459pF @ 0V, 1MHz | 0 ns | 60 µA @ 650 V | 650 V | 56A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
E4D02120E-TR2A 1200V SIC AUTOMOTIVE DIODE |
4,710 | 2.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 153pF @ 0V, 1MHz | - | 50 µA @ 1200 V | 1200 V | 8A (DC) | -55°C ~ 175°C | 1.8 V @ 2 A |
|

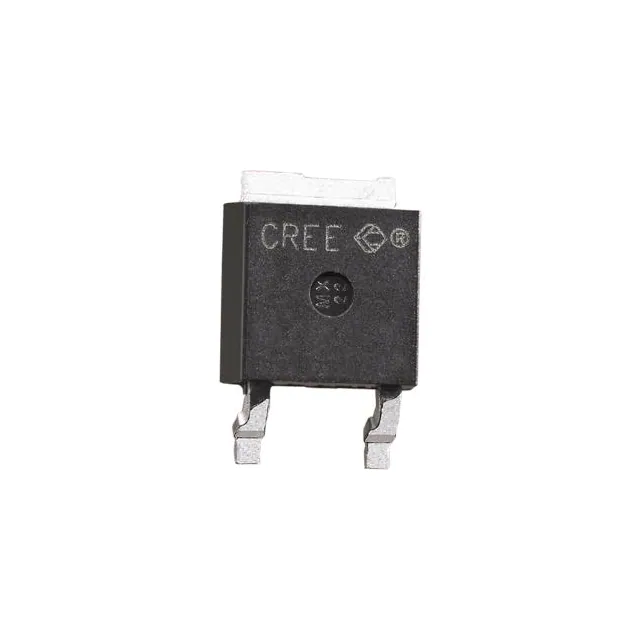

C6D06065EGEN 6 650V 6 A SBD |
2,487 | 2.65 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 394pF @ 0V, 1MHz | 0 ns | 30 µA @ 650 V | 650 V | 23A (DC) | -55°C ~ 175°C | 1.5 V @ 6 A |
|
C3D03065EDIODE SCHOTTKY 650V 3A TO252-2 |
865 | 2.27 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 155pF @ 0V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 11A (DC) | -55°C ~ 175°C | 1.8 V @ 3 A |
|

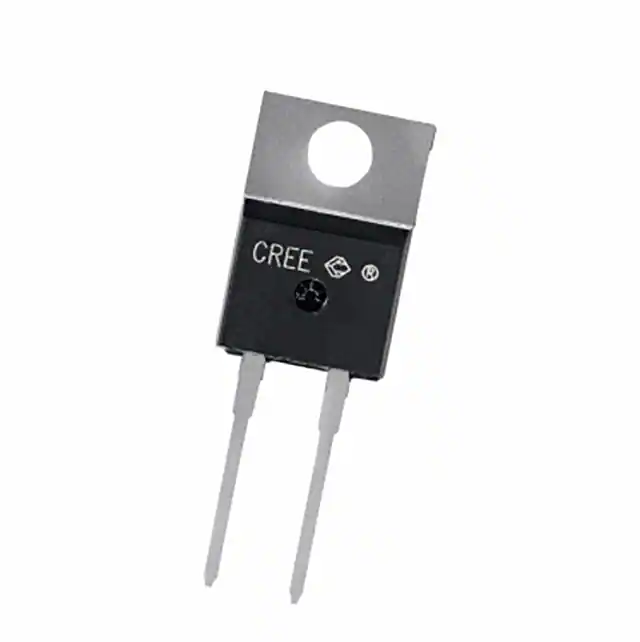

C6D04065ADIODE SCHOTTKY 650V 4A TO-220-2 |
383 | 2.86 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | 0 ns | - | 650 V | 4A (DC) | - | 1.27 V @ 4 A | |
|
|
CSD01060E-TRDIODE SCHOTTKY 600V 1A TO252-2 |
2,954 | 1.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 80pF @ 0V, 1MHz | 0 ns | 100 µA @ 600 V | 600 V | 4A (DC) | -55°C ~ 175°C | 1.8 V @ 1 A |
|
|
C3D02065EDIODE SCHOTTKY 650V 2A TO252-2 |
3,003 | 1.50 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 120pF @ 0V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 8A (DC) | -55°C ~ 175°C | 1.8 V @ 2 A |
|
C4D02120E-TRDIODE SCHOTTKY 1.2KV 9A TO252-2 |
2,054 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 167pF @ 0V, 1MHz | 0 ns | 50 µA @ 1200 V | 1200 V | 10A (DC) | -55°C ~ 175°C | 1.8 V @ 2 A |
|
|
C3D02060EDIODE SCHOTTKY 600V 2A TO252-2 |
3,859 | 1.58 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 120pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 5A (DC) | -55°C ~ 175°C | 1.7 V @ 2 A |
|
C3D02060FDIODE SCHOTTKY 600V 4A TO220-F2 |
3,173 | 1.58 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 120pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 4A (DC) | -55°C ~ 175°C | 1.7 V @ 2 A |
|
|
C3D04060E-TRDIODE SCHOTTKY 600V 15.5A TO252 |
2,014 | 1.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 251pF @ 0V, 1MHz | - | 50 µA @ 600 V | 600 V | 13.5A (DC) | -55°C ~ 175°C | 1.8 V @ 4 A |
|
|
C3D02060E-TRDIODE SCHOTTKY 600V 8A TO252-2 |
2,622 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 11pF @ 400V, 1MHz | - | 50 µA @ 600 V | 600 V | 5A (DC) | -55°C ~ 175°C | 1.7 V @ 2 A |
|
|
C3D02060ADIODE SCHOTTKY 600V 2A TO220-2 |
3,857 | 1.58 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 120pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 5A (DC) | -55°C ~ 175°C | 1.7 V @ 2 A |
|
C3D06060G-TRDIODE SCHOTTKY 600V 6A TO263-2 |
2,038 | 2.41 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 295pF @ 0V, 1MHz | - | 50 µA @ 600 V | 600 V | 19A (DC) | -55°C ~ 175°C | 1.7 V @ 6 A |
|
C3D08060GDIODE SCHOTTKY 600V 8A TO263-2 |
2,365 | 5.11 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 441pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 24A (DC) | -55°C ~ 175°C | 1.8 V @ 8 A |
|
C3D06065IDIODE SCHOTTKY 650V 13A TO220-2 |
2,247 | 4.27 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 295pF @ 0V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 13A (DC) | -55°C ~ 175°C | 1.7 V @ 6 A |
|
|
CSD01060ADIODE SCHOTTKY 600V 2.2A TO220-2 |
2,793 | 1.55 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 80pF @ 0V, 1MHz | 0 ns | 100 µA @ 600 V | 600 V | 4A (DC) | -55°C ~ 175°C | 1.8 V @ 1 A |
|
|
CSD01060EDIODE SCHOTTKY 600V 1A TO252-2 |
3,347 | 1.55 |
RFQ |
Datasheet |
Tube | Zero Recovery™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 80pF @ 0V, 1MHz | 0 ns | 100 µA @ 600 V | 600 V | 4A (DC) | -55°C ~ 175°C | 1.8 V @ 1 A |
