| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3D03060ADIODE SCHOTTKY 600V 3A TO220-2 |
2,636 | 2.15 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 155pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 11A (DC) | -55°C ~ 175°C | 1.7 V @ 3 A |
|
C3D04060EDIODE SCHOTTKY 600V 4A TO252-2 |
2,882 | 2.86 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 251pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 13.5A (DC) | -55°C ~ 175°C | 1.7 V @ 4 A |
|
|
C4D02120ADIODE SCHOTTKY 1.2KV 2A TO220-2 |
3,195 | 2.99 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 167pF @ 0V, 1MHz | 0 ns | 50 µA @ 1200 V | 1200 V | 10A (DC) | -55°C ~ 175°C | 1.8 V @ 2 A |
|
C3D06060FDIODE SCHOTTKY 600V 6A TO220-F2 |
3,987 | 3.84 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 294pF @ 0V, 1MHz | 0 ns | 50 µA @ 600 V | 600 V | 7.5A (DC) | -55°C ~ 175°C | 1.8 V @ 6 A |
|
C3D16065D1DIODE SCHOTTKY 650V 16A TO247-3 |
2,219 | 6.43 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | 0 ns | 95 µA @ 650 V | 650 V | - | -55°C ~ 175°C | 1.8 V @ 16 A |
|
|
C4D15120ADIODE SCHOTTKY 1.2KV 10A TO220-2 |
3,897 | 17.72 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1200pF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 43.5A (DC) | -55°C ~ 175°C | 1.8 V @ 15 A |
|
|
C4D20120ADIODE SCHOTTKY 1.2KV 20A TO220-2 |
2,499 | 21.71 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1500pF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 54.5A (DC) | -55°C ~ 175°C | 1.8 V @ 20 A |
|
C6D06065Q-TR6A 650V SIC SCHOTTKY QFN |
2,650 | 2.65 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),- | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 393pF @ 0V, 1MHz | - | 20 µA @ 650 V | 650 V | 21A (DC) | -55°C ~ 175°C | 1.5 V @ 6 A | ||
|
C6D08065EGEN 6 650V 8 A SBD |
2,622 | 3.52 |
RFQ |
Datasheet |
Tube | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 518pF @ 0V, 1MHz | 0 ns | 40 µA @ 650 V | 650 V | 29A (DC) | -55°C ~ 175°C | 1.5 V @ 8 A |
|
C6D08065G8A 650V SIC SCHOTTKY DIODE |
2,941 | 3.52 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 518pF @ 0V, 1MHz | 0 ns | 20 µA @ 650 V | 650 V | 30A (DC) | -55°C ~ 175°C | 1.4 V @ 8 A | |
|
|
C6D08065Q-TR8A 650V SIC SCHOTTKY QFN |
2,269 | 3.52 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),- | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 518pF @ 0V, 1MHz | - | 20 µA @ 650 V | 650 V | 28A (DC) | -55°C ~ 175°C | 1.5 V @ 8 A | ||
|
|
C6D10065Q-TR10A 650V SIC SCHOTTKY QFN |
2,457 | 4.43 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),- | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 611pF @ 0V, 1MHz | - | 50 µA @ 650 V | 650 V | 39A (DC) | -55°C ~ 175°C | 1.5 V @ 10 A | ||
|
C3D06065E-TRZRECTM 6A, 650V SIC SCHOTTKY DIO |
3,485 | 2.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Surface Mount | 295pF @ 0V, 1MHz | 0 ns | 40 µA @ 650 V | 650 V | 20A (DC) | -55°C ~ 175°C | 1.7 V @ 6 A |
|
C3D02065E-TRDIODE SCHOTTKY 650V 8A TO252-2 |
3,087 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 0V, 1MHz | - | 50 µA @ 650 V | 650 V | 8A (DC) | -55°C ~ 175°C | 1.8 V @ 2 A |
|
CPW3-1700-S025B-WPDIODE SILICON 1.7KV 25A CHIP |
3,031 | 64.73 |
RFQ |
Tray | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 2250pF @ 0V, 1MHz | 0 ns | 100 µA @ 1700 V | 1700 V | 25A | -55°C ~ 175°C | 2 V @ 25 A | |
|
C3D08060G-TRDIODE SCHOTTKY 600V 20A TO263-2 |
2,706 | 2.57 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 26pF @ 400V, 1MHz | - | 50 µA @ 600 V | 600 V | 24A (DC) | -55°C ~ 175°C | 1.8 V @ 6 A |
|

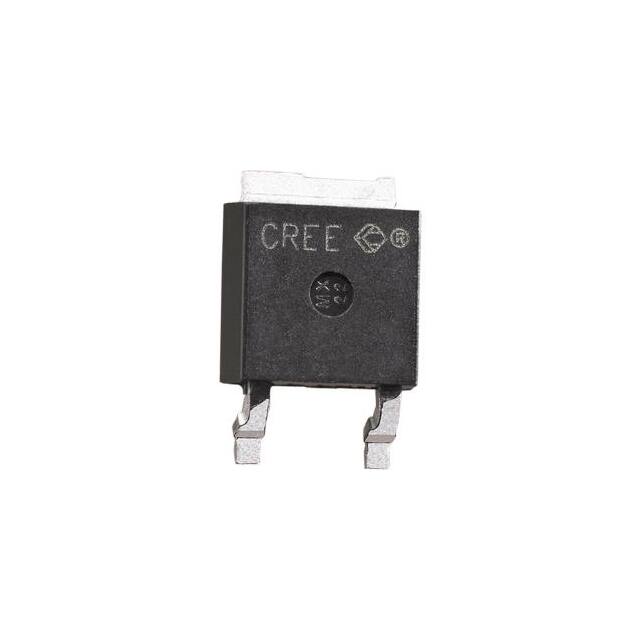

C3D08065E-TRZRECTM 8A, 650V SIC SCHOTTKY DIO |
2,602 | 2.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Surface Mount | 395pF @ 0V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 25.5A (DC) | -55°C ~ 175°C | 1.8 V @ 8 A |
|
|
C3D10060G-TRDIODE SCHOTTKY 600V 29.5A TO263 |
2,492 | 3.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 480pF @ 0V, 1MHz | - | 50 µA @ 600 V | 600 V | 29A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
C3D10065E-TRZRECTM 10A, 650V SIC SCHOTTKY DI |
3,059 | 3.35 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Surface Mount | 460.5pF @ 0V, 1MHz | 0 ns | 60 µA @ 650 V | 650 V | 32A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
|
C4D05120E-TRDIODE SCHOTTKY 1.2KV 19A TO252-2 |
3,959 | 3.65 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 390pF @ 0V, 1MHz | 0 ns | 150 µA @ 1200 V | 1200 V | 19A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A |
