| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5418E3RECTIFIER UFR,FRR |
2,422 | 8.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
1N5554US/TRSTD RECTIFIER |
2,195 | 8.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 1 µA @ 1000 V | 1000 V | 3A | -65°C ~ 175°C | 1.3 V @ 9 A | |
|
JAN1N5420DIODE GEN PURP 600V 3A AXIAL |
3,616 | 8.78 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
1N5804USE3RECTIFIER UFR,FRR |
3,003 | 8.78 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A |
|
1N5804US/TRRECTIFIER UFR,FRR |
2,512 | 8.78 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A | |
|
JANTX1N5619US/TRRECTIFIER UFR,FRR |
2,868 | 8.81 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 12V, 1MHz | 250 ns | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
JANTX1N5618US/TRSTD RECTIFIER |
3,946 | 8.81 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|

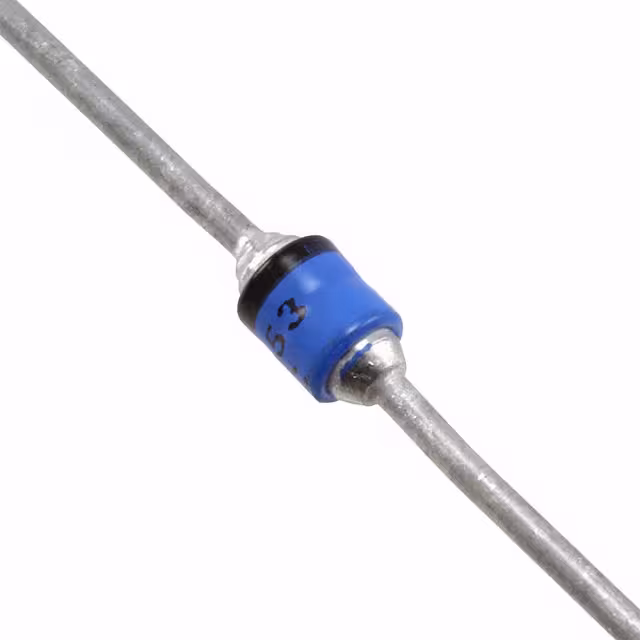

JANTXV1N5417DIODE GEN PURP 200V 3A AXIAL |
3,780 | 8.81 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|

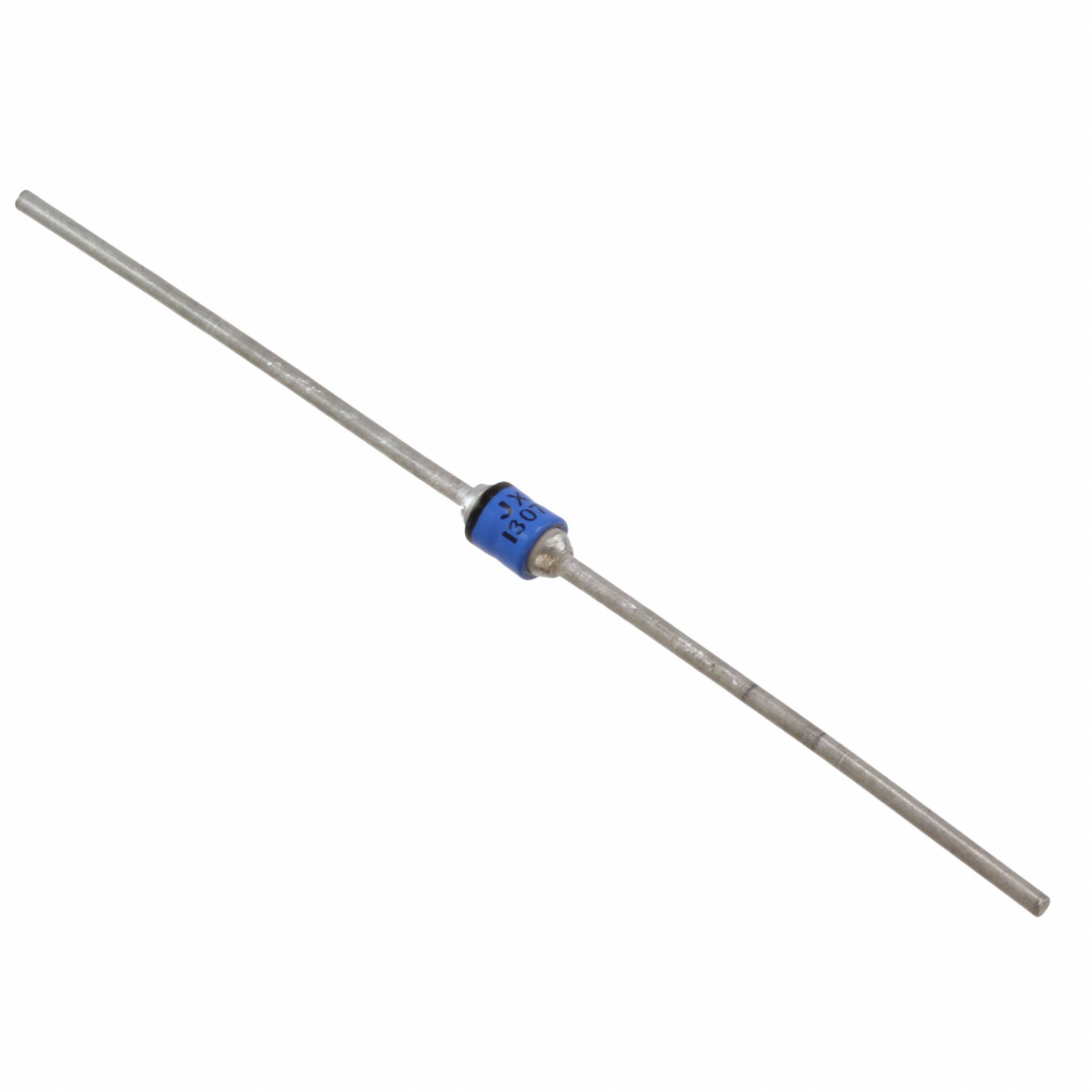

JANTX1N5419DIODE GEN PURP 500V 3A AXIAL |
2,689 | 8.84 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 1 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
JANTX1N6624US/TRRECTIFIER UFR,FRR |
3,855 | 14.25 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 50 ns | 500 nA @ 990 V | 990 V | 1A | -65°C ~ 150°C | 1.55 V @ 1 A | |
|
JANTXV1N5187/TRRECTIFIER UFR,FRR |
3,912 | 14.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/424 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 2 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
UES1105E3RECTIFIER UFR,FRR |
3,996 | 14.28 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 10 µA @ 300 V | 300 V | 1A | -55°C ~ 150°C | 1.25 V @ 1 A | ||
|
JANTX1N6622USDIODE GEN PURP 660V 2A D5A |
3,409 | 14.31 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 660 V | 660 V | 2A | -65°C ~ 150°C | 1.4 V @ 1.2 A |
|
|
JANTX1N6620USDIODE GEN PURP 220V 2A D5A |
2,576 | 14.42 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 220 V | 220 V | 2A | -65°C ~ 150°C | 1.4 V @ 1.2 A |
|
|
JANTX1N6623DIODE GEN PURP 880V 1A AXIAL |
2,266 | 14.45 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 10V, 1MHz | 50 ns | 500 nA @ 880 V | 880 V | 1A | -65°C ~ 150°C | 1.55 V @ 1 A |
|
|
JANTX1N6623UDIODE GEN PURP 800V 1A A-MELF |
3,870 | 14.45 |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 500 nA @ 800 V | 800 V | 1A | -65°C ~ 150°C | 1.55 V @ 1 A | |
|
|
JANTX1N6631RECTIFIER |
3,134 | 14.45 |
RFQ |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 40pF @ 10V, 1MHz | 60 ns | 4 µA @ 1000 V | - | 2A | -65°C ~ 175°C | 1.95 V @ 2 A | |
|
|
UES1105E3/TRRECTIFIER UFR,FRR |
2,725 | 14.45 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 10 µA @ 300 V | 300 V | 1A | -55°C ~ 150°C | 1.25 V @ 1 A | ||
|
|
1N6540DIODE RECT ULT FAST REC A-PKG |
3,570 | 14.46 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
1N6625E3/TRRECTIFIER UFR,FRR |
3,305 | 14.46 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 80 ns | 1 µA @ 1 V | 1.1 V | 1A | -65°C ~ 150°C | 1.95 V @ 1.5 A |
