| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

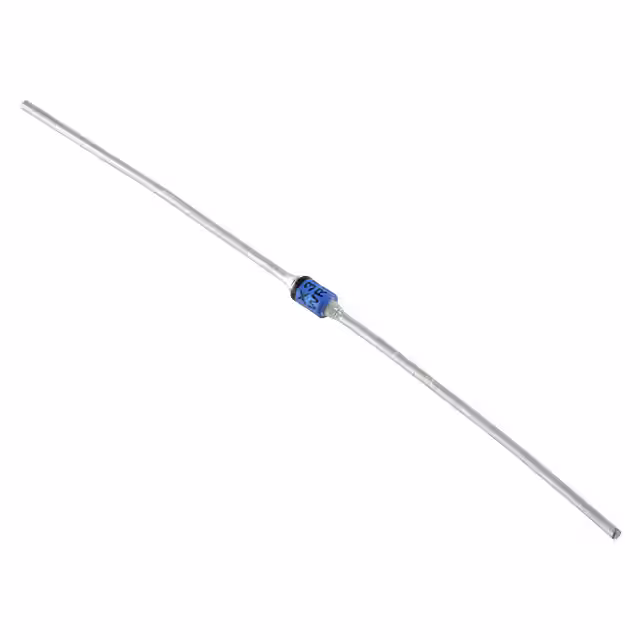

JANTX1N3611DIODE GEN PURP 200V 1A AXIAL |
2,135 | 4.74 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/228 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 1 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
CDLL1A60DIODE SCHOTTKY 60V 1A DO213AB |
3,401 | 4.74 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 0.9pF @ 5V, 1MHz | - | 100 µA @ 60 V | 60 V | 1A | - | 690 mV @ 1 A | |
|
APT100D60BGFRED D 1000 V 60 A TO-247 |
3,970 | 4.75 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 250 µA @ 600 V | 600 V | 100A | -55°C ~ 150°C | 2 V @ 100 A | |
|

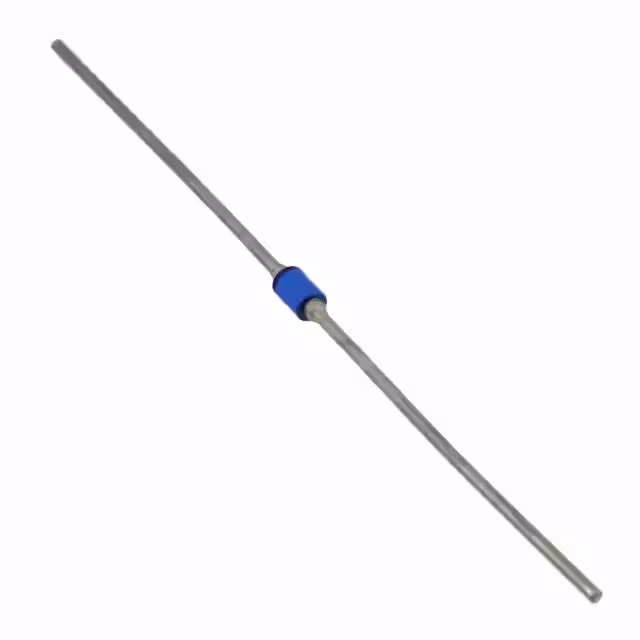

JAN1N4942DIODE GEN PURP 200V 1A AXIAL |
2,848 | 4.76 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/359 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
|
JANTX1N5616DIODE GEN PURP 400V 1A AXIAL |
2,381 | 4.76 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
JANTX1N5618DIODE GEN PURP 600V 1A AXIAL |
3,604 | 4.76 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
1N5619E3HERMETICALLY SEALED GLASS RECTIF |
3,423 | 4.77 |
RFQ |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 12V, 1MHz | - | 500 µA @ 400 V | 600 V | 1A | -65°C ~ 200°C | 1.6 V @ 3 A | |
|
1N5619/TRRECTIFIER UFR,FRR |
3,625 | 4.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 12V, 1MHz | 250 ns | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
CDLL645DIODE GEN PURP 225V 400MA DO213 |
2,387 | 4.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 nA @ 225 V | 225 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA | |
|
|
CDLL486BDIODE GEN PURP 250V 200MA DO213 |
2,287 | 4.85 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | - | 100 µA @ 250 V | 250 V | 200mA | -65°C ~ 175°C | 1 V @ 100 mA | |
|
JANTX1N5617DIODE GEN PURP 400V 1A AXIAL |
2,177 | 4.88 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 12V, 1MHz | 150 ns | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
CD5822DIODE SMALL-SIGNAL SCHOTTKY |
3,982 | 8.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 3A | -65°C ~ 125°C | 550 mV @ 3 A | |
|
|
JAN1N5807USDIODE GEN PURP 50V 6A B-MELF |
3,634 | 8.45 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 50 V | 50 V | 6A | -65°C ~ 175°C | 875 mV @ 4 A |
|
|
JANTX1N5186DIODE GEN PURP 100V 3A AXIAL |
2,075 | 8.45 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/424 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 2 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
JAN1N5551USDIODE GEN PURP 400V 3A B-MELF |
3,998 | 8.45 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 1 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A |
|
JANTX1N5809US/TRRECTIFIER UFR,FRR |
3,855 | 8.45 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
JAN1N5623USDIODE GEN PURP 1KV 1A D5A |
2,839 | 8.48 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 12V, 1MHz | 500 ns | 500 nA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
1N6641USDIODE GEN PURPOSE |
3,245 | 8.48 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/609 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 5 ns | 100 nA @ 50 V | 50 V | 300mA (DC) | -65°C ~ 175°C | 1.1 V @ 200 mA |
|
JANTX1N5615US/TRRECTIFIER UFR,FRR |
2,115 | 8.48 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | - | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | ||
|
|
JANTX1N5415USDIODE GEN PURP 50V 3A B-MELF |
2,866 | 8.55 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 1 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
