| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSM150G/TR13DIODE SCHOTTKY 50V 1A DO215AA |
3,974 | 1.49 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 50 V | 50 V | 1A | -55°C ~ 175°C | 690 mV @ 1 A | |
|
|
HSM160G/TR13DIODE SCHOTTKY 60V 1A DO215AA |
3,181 | 1.49 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 175°C | 690 mV @ 1 A | |
|
|
HSM170G/TR13DIODE SCHOTTKY 1A 70V SMBG |
2,674 | 1.49 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
1N645-1E3/TRSIGNAL/COMPUTER DIODE |
2,172 | 1.49 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 50 nA @ 225 V | 225 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA | ||
|
1N4148UR-1E3/TRSIGNAL/COMPUTER DIODE |
3,203 | 1.49 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 200mA | -65°C ~ 175°C | 1.2 V @ 100 mA | ||
|
|
HSM1100G/TR13DIODE SCHOTTKY 100V 1A DO215AA |
2,204 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 840 mV @ 1 A | |
|
|
HSM180G/TR13DIODE SCHOTTKY 80V 1A DO215AA |
3,899 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 1A | -55°C ~ 175°C | 840 mV @ 1 A | |
|
|
HSM190G/TR13DIODE SCHOTTKY 90V 1A DO215AA |
2,234 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 90 V | 90 V | 1A | -55°C ~ 175°C | 840 mV @ 1 A | |
|
1N647SILICON SWITCHING DIODES |
3,357 | 1.50 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | - | 400 V | - | - | 1 V @ 400 mA | ||
|
|
1N4153UR-1/TRSIGNAL/COMPUTER DIODE |
2,368 | 1.52 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 50 nA @ 50 V | 50 V | 150mA | -65°C ~ 175°C | - | ||
|
1N646/TRSIGNAL/COMPUTER DIODE |
2,551 | 1.55 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 200 nA @ 300 V | 300 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA | ||
|

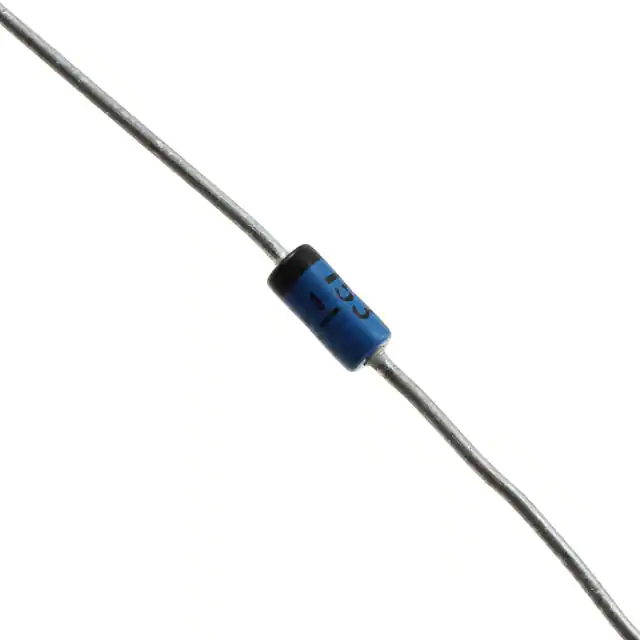

JAN1N4153-1DIODE GEN PURP 75V 150MA DO35 |
2,238 | 4.41 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/337 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2pF @ 0V, 1MHz | 4 ns | 50 nA @ 50 V | 75 V | 150mA (DC) | -65°C ~ 175°C | 880 mV @ 20 mA |
|
1N4942DIODE GEN PURP 200V 1A AXIAL |
2,407 | 4.43 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 12V, 1MHz | 150 ns | 1 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A | |
|
|
1N3613DIODE GEN PURP 600V 1A AXIAL |
2,248 | 4.44 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 1 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
1N3611E3/TRSTD RECTIFIER |
2,190 | 4.44 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 1 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | ||
|
|
1N5615E3/TRRECTIFIER UFR,FRR |
3,381 | 4.44 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | ||
|
|
JAN1N5616/TRSTD RECTIFIER |
2,523 | 4.46 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
JAN1N5617/TRRECTIFIER UFR,FRR |
3,511 | 4.46 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
JAN1N5615/TRRECTIFIER UFR,FRR |
3,995 | 4.46 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
JAN1N5618/TRSTD RECTIFIER |
2,315 | 4.46 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
