| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

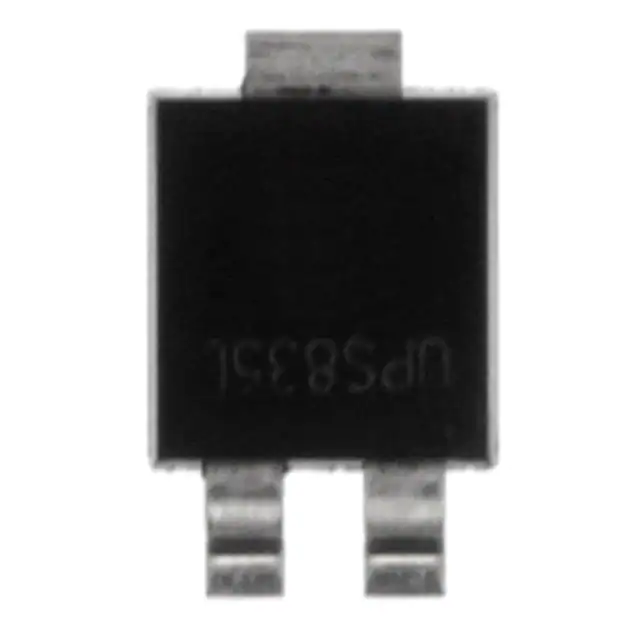

UPS835LE3/TR13DIODE SCHOTTKY 35V 8A POWERMITE3 |
5,572 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.4 mA @ 35 V | 35 V | 8A | -55°C ~ 125°C | 510 mV @ 8 A | |
|
APT40DQ100BGDIODE GEN PURP 1KV 40A TO247 |
4,830 | 2.35 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 100 µA @ 1000 V | 1000 V | 40A | -55°C ~ 175°C | 3 V @ 40 A | |
|
MSC010SDA120KDIODE SCHOTTKY 1.2KV 10A TO220-2 |
121 | 3.92 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | 0 ns | - | 1200 V | 10A (DC) | - | 1.5 V @ 10 A | |
|
1N5804DIODE GEN PURP 100V 1A AXIAL |
675 | 4.95 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A | |
|
|
APT60D60BGDIODE GEN PURP 600V 60A TO247 |
2,470 | 2.99 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 130 ns | 250 µA @ 600 V | 600 V | 60A | -55°C ~ 175°C | 1.8 V @ 60 A | |
|
|
APT30DQ60BGDIODE GEN PURP 600V 30A TO247 |
256 | 1.33 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 25 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 2.4 V @ 30 A | |
|
JANTX1N6638DIODE GEN PURP 125V 300MA D5B |
619 | 8.62 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 20 ns | 500 nA @ 125 V | 125 V | 300mA | -65°C ~ 175°C | 1.1 V @ 200 mA |
|
1N4045275A,50V-1400V RECTIFIER IN DO9 |
3,492 | 138.82 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
.jpg)
|
LSM345J/TR13DIODE SCHOTTKY 45V 3A DO214AB |
219 | 1.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1.5 mA @ 45 V | 45 V | 3A | -55°C ~ 150°C | 520 mV @ 3 A | |
|

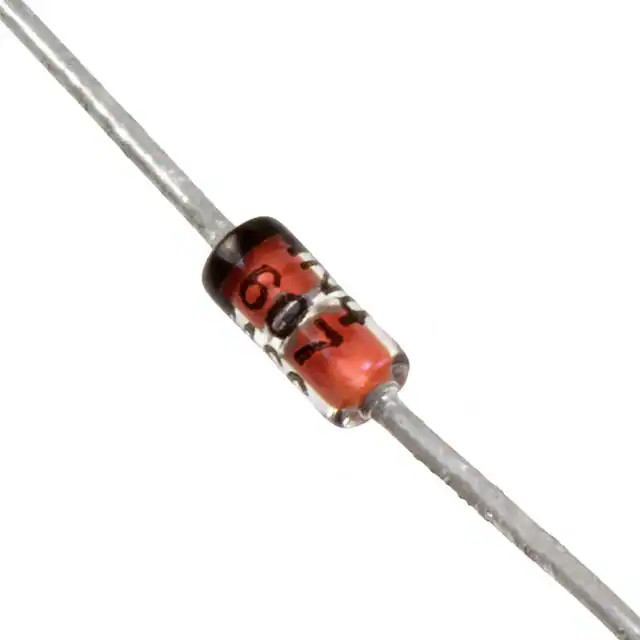

1N4607DIODE GEN PURP 85V 200MA DO35 |
401 | 2.13 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 10 ns | 100 µA @ 50 V | 85 V | 200mA | -65°C ~ 200°C | 1.1 V @ 400 mA | |
|
UPS140E3/TR7DIODE SCHOTTKY 40V 1A POWERMITE1 |
2,641 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 5V, 1MHz | - | 400 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 450 mV @ 1 A | |
|
|
JANTX1N4500DIODE GEN PURP 80V DO35 |
1,235 | 43.98 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/403 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 6 ns | 100 nA @ 75 V | 80 V | - | -65°C ~ 175°C | 1.1 V @ 300 mA |
|
|
JANTX1N4153-1DIODE GEN PURP 50V 150MA DO204AH |
824 | 45.78 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2pF @ 0V, 1MHz | 4 ns | 50 nA @ 50 V | 50 V | 150mA | -65°C ~ 175°C | 880 mV @ 20 mA | |
|
JANS1N5809DIODE GEN PURP 100V 3A AXIAL |
331 | 47.18 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A |
|
|
JANS1N6640DIODE GEN PURP 50V 300MA DO204AH |
474 | 69.62 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/609 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 ns | 100 nA @ 50 V | 50 V | 300mA | -65°C ~ 175°C | 1 V @ 200 mA |
|
JANS1N3595USDIODE GEN PURP 200MA DO35 |
370 | 112.94 |
RFQ |
Datasheet |
Bulk | Military, MIL-S-19500-241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 3 µs | 1 nA @ 125 V | - | 200mA (DC) | -65°C ~ 150°C | 1 V @ 200 mA |
|
|
UPS115UE3/TR7DIODE SCHOTTKY 15V 1A POWERMITE |
3,931 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 5V, 1MHz | - | 10 mA @ 15 V | 15 V | 1A | -55°C ~ 150°C | 220 mV @ 1 A | |
|

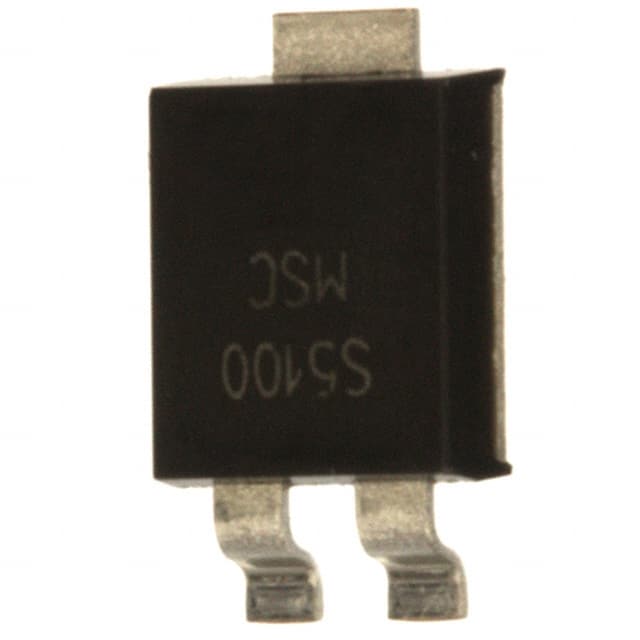

UPS5100E3/TR13DIODE SCHOTTKY 100V 5A POWERMITE |
3,263 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 4V, 1MHz | - | 200 µA @ 100 V | 100 V | 5A | -55°C ~ 125°C | 810 mV @ 5 A | |
|
|
APT40DQ60BGDIODE GEN PURP 600V 40A TO247 |
3,925 | 1.76 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 25 ns | 25 µA @ 600 V | 600 V | 40A | -55°C ~ 175°C | 2.4 V @ 40 A | |
|

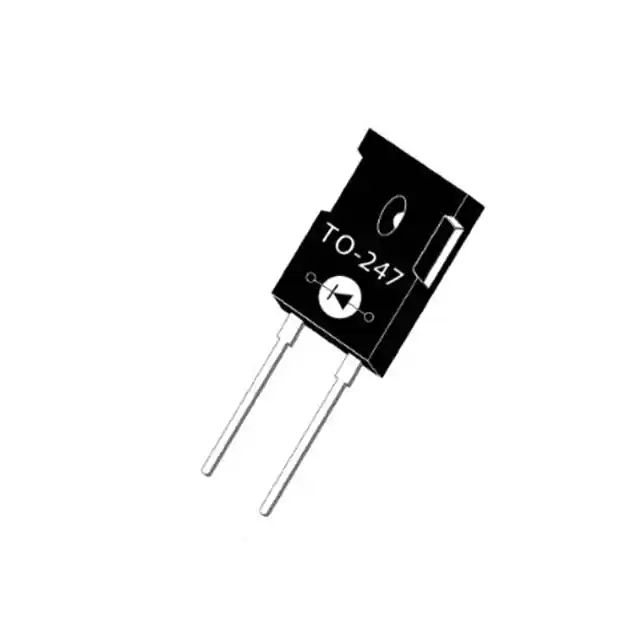

APT75DQ120BGDIODE GEN PURP 1.2KV 75A TO247 |
2,429 | 3.17 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 325 ns | 100 µA @ 1200 V | 1200 V | 75A | -55°C ~ 175°C | 3.1 V @ 75 A |
