| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES5D-F1-0000DIODE GEN PURP 200V 5A DO214AB |
2,399 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 75pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 950 mV @ 5 A | |
|
SL310-F1-3000HFDIODE SCHOTTKY 100V 3A SOD123FL |
3,811 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 nA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 600 mV @ 3 A | |
|
SS810-F1-0000DIODE SCHOTTKY 100V 8A DO214AB |
2,569 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 270pF @ 4V, 1MHz | - | 100 µA @ 5 V | 100 V | 8A | -55°C ~ 150°C | 850 mV @ 8 A | |
|
60EPS16-B1-0000HFDIODE GEN PURP 1600V 60A TO247AC |
2,280 | 2.19 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 1600 V | 1600 V | 60A | -55°C ~ 150°C | 1.3 V @ 60 A | |
|

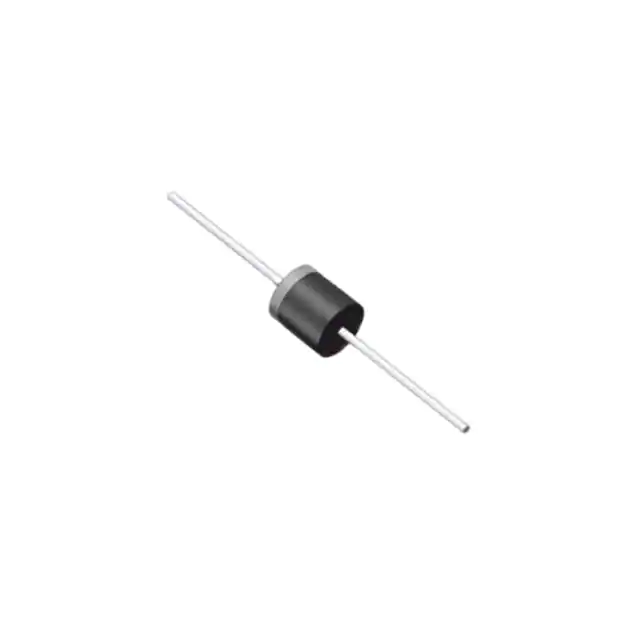

10A10-C1-3000DIODE GEN PURP 1000V 10A R6 |
2,876 | 0.58 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 1000 V | 1000 V | 10A | -55°C ~ 200°C | 1.1 V @ 10 A | |
|
|
S310-F1-0000HFDIODE SCHOTTKY 100V 3A SOD123FL |
2,198 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 165pF @ 4V, 1MHz | - | 100 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 850 mV @ 3 A | |
|
HER208G-D1-0000DIODE GEN PURP 1000V 2A DO15 |
3,898 | 0.47 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 12pF @ 4V, 1MHz | 75 ns | 2.5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.7 V @ 2 A | |
|
GS3J-F1-0000DIODE GEN PURP 600V 3A DO214AB |
3,482 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 3A | -55°C ~ 150°C | 1.1 V @ 3 A | |
|
|
GS3B-F1-0000DIODE GEN PURP 100V 3A DO214AB |
3,459 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 1.1 V @ 3 A | |
|
|
GS3G-F1-0000DIODE GEN PURP 400V 3A DO214AB |
3,619 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | - | 5 µA @ 1700 V | 400 V | 3A | -55°C ~ 150°C | 1.1 V @ 3 A | |
|
|
GS3M-F1-0000DIODE GEN PURP 1000V 3A DO214AB |
2,064 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 3A | -55°C ~ 150°C | 1.1 V @ 3 A | |
|
|
MUR3060P-B1-0000HFDIODE GEN PURP 600V 30A TO247AC |
3,066 | 3.12 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 195pF @ 4V, 1MHz | 50 ns | 10 µA @ 600 V | 600 V | 30A | -55°C ~ 150°C | 1.6 V @ 30 A | |
|
ES1G-F1-0000HFDIODE GEN PURP 400V 1A DO214AC |
3,843 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
|
SS36A-F1-3000HFDIODE SCHOTTKY 60V 3A DO214AC |
3,185 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | 700 mV @ 3 A | |
|
|
HS1J-F1-0000HFDIODE GEN PURP 600V 1A DO214AC |
2,545 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
ES1D-F1-0000HFDIODE GEN PURP 200V 1A DO214AC |
2,203 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 950 mV @ 1 A | |
|
|
ES2JA-F1-3000HFDIODE GEN PURP 600V 2A DO214AC |
3,765 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.7 V @ 2 A | |
|
|
HS2MA-F1-0000HFDIODE GEN PURP 1000V 2A DO214AC |
3,468 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.7 V @ 2 A | |
|
|
HS1M-F1-3000HFDIODE GEN PURP 1000V 1A DO214AC |
3,363 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
SS26A-F1-1100HFDIODE SCHOTTKY 60V 2A DO214AC |
2,550 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 2A | -55°C ~ 150°C | 700 mV @ 2 A |
