| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD103AWS-F2-0000HFDIODE SCHOTTKY 40V 350MA SOD323 |
2,350 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | - | 5 µA @ 30 V | 40 V | 350mA | -55°C ~ 125°C | 600 mV @ 200 mA | |
|
S14-F1-3000HFDIODE SCHOTTKY 40V 1A SOD123FL |
2,088 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 500 mV @ 1 A | |
|
|
1SS355-F2-0000HFDIODE GEN PURP 80V 150MA SOD323 |
3,976 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 6V, 1MHz | 4 ns | 100 nA @ 80 V | 80 V | 150mA | -65°C ~ 150°C | 1.2 V @ 100 mA | |
|
|
B5817WS-F2-0000HFDIODE SCHOTTKY 20V 1A SOD323 |
3,838 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 200 µA @ 20 V | 20 V | 1A | -65°C ~ 125°C | 450 mV @ 1 A | |
|
|
G1M-F1-3000HFDIODE GEN PURP 1000V 1A SOD123FL |
3,449 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
H1G-F1-0000HFDIODE GEN PURP 400V 1A SOD123FL |
3,170 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
|
S110-F1-3000HFDIODE SCHOTTKY 100V 1A SOD123FL |
2,812 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 850 mV @ 1 A | |
|
B5819W-F2-0000HFDIODE SCHOTTKY 40V 1A SOD123 |
3,062 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 40 µA @ 40 V | 40 V | 1A | -65°C ~ 125°C | 600 mV @ 1 A | |
|
|
H1J-F1-0000HFDIODE GEN PURP 600V 1A SOD123FL |
2,757 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
H1KF-F1-0000HFDIODE GEN PURP 800V 1A SMAF |
3,450 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
B5818WS-F2-0000HFDIODE SCHOTTKY 30V 1A SOD323 |
2,034 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 40 µA @ 30 V | 30 V | 1A | -65°C ~ 125°C | 550 mV @ 1 A | |
|

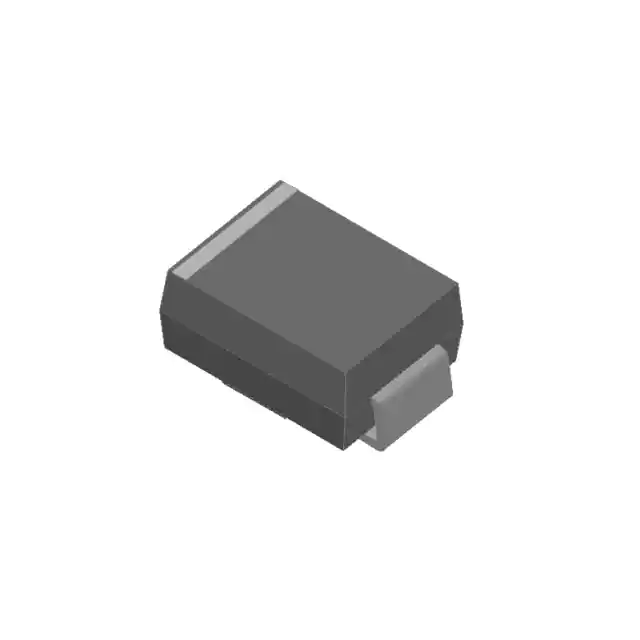

SSL510B-F1-0000HFDIODE SCHOTTKY 100V 5A DO214AA |
3,900 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 5A | -55°C ~ 150°C | 700 mV @ 5 A | |
|
|
SSL54B-F1-0000HFDIODE SCHOTTKY 40V 5A DO214AA |
3,336 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 5A | -55°C ~ 150°C | 450 mV @ 5 A | |
|
GR2MA-F1-0000HFDIODE GEN PURP 1000V 2A DO214AC |
2,310 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 500 ns | 5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.3 V @ 2 A | |
|
HS5M-F1-0000DIODE GEN PURP 1000V 5A DO214AB |
2,991 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 50 ns | 5 µA @ 1000 V | 1000 V | 5A | -55°C ~ 150°C | 1.7 V @ 5 A | |
|
|
GR1G-F1-0000HFDIODE GEN PURP 400V 1A DO214AC |
2,739 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 1700 V | 400 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
|
SSL510-F1-0000DIODE SCHOTTKY 100V 5A DO214AB |
2,354 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 680pF @ 4V, 1MHz | - | 500 µA @ 100 V | 100 V | 5A | -55°C ~ 150°C | 700 mV @ 5 A | |
|
|
GR2JA-F1-3000HFDIODE GEN PURP 600V 2A DO214AC |
2,551 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.3 V @ 2 A | |
|

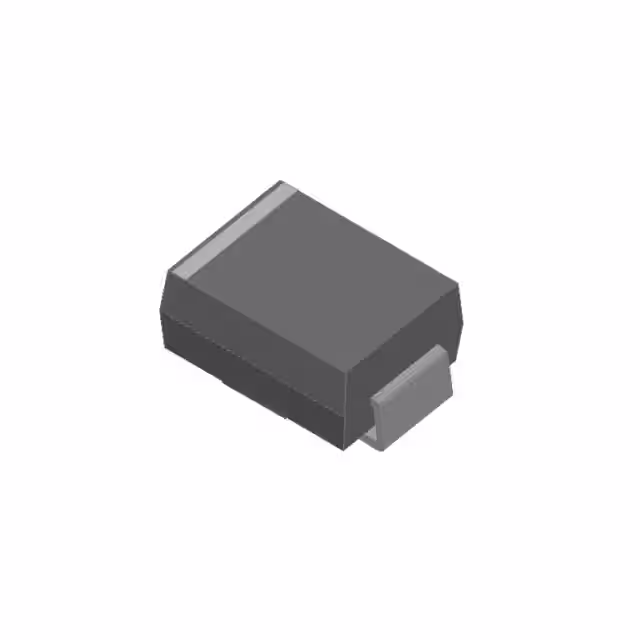

MURS360B-F1-3000HFDIODE GEN PURP 600V 3A DO214AA |
3,669 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 50 ns | 5 µA @ 600 V | 600 V | 3A | -55°C ~ 150°C | 1.25 V @ 3 A | |
|
|
GR1D-F1-0000HFDIODE GEN PURP 200V 1A DO214AC |
2,753 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A |
