| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL206G-D1-3000DIODE GEN PURP 800V 2A DO204AC |
3,341 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 13pF @ 4V, 1MHz | - | 2.5 µA @ 800 V | 800 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
GR2J-F1-0000HFDIODE GEN PURP 600V 2A DO214AA |
2,446 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.3 V @ 2 A | |
|

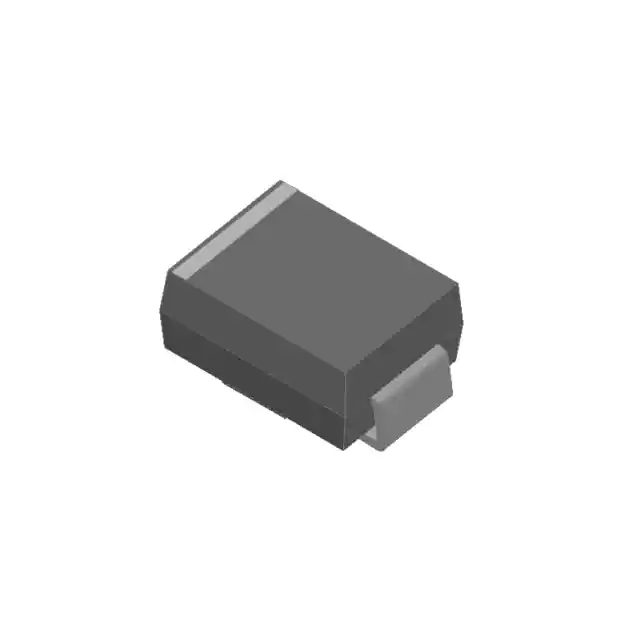

GS2D-F1-0000HFDIODE GEN PURP 200V 2A DO214AC |
3,569 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
|
FR207G-D1-3000DIODE GEN PURP 1000V 2A DO204AC |
2,069 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 12pF @ 4V, 1MHz | 500 ns | 2.5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.3 V @ 2 A | |
|
|
GS2M-F1-0000HFDIODE GEN PURP 1000V 2A DO214AC |
3,578 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
|
1N5399G-D1-0000DIODE GEN PUR 1000V 1.5A DO204AC |
3,757 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 13pF @ 4V, 1MHz | - | 2.5 µA @ 1000 V | 1000 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
SR5100L-D1-0000DIODE SCHOTTKY 100V 5A DO201AD |
2,204 | 0.66 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 190pF @ 4V, 1MHz | - | 100 µA @ 5 V | 100 V | 5A | -55°C ~ 150°C | 700 mV @ 5 A | |
|
GS3GB-F1-0000HFDIODE GEN PURP 400V 3A DO214AA |
3,398 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 3A | -55°C ~ 150°C | 1.1 V @ 3 A | |
|
|
RL207G-D1-0000HFDIODE GEN PURP 1000V 2A DO204AC |
2,873 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 13pF @ 4V, 1MHz | - | 2.5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
SF54G-D1-0000DIODE GEN PURP 200V 5A DO201AD |
2,107 | 0.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 80pF @ 4V, 1MHz | 35 ns | 2.5 µA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 950 mV @ 5 A | |
|
|
HER307G-D1-3000DIODE GEN PURP 800V 3A DO201AD |
2,780 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 4V, 1MHz | 75 ns | 2.5 µA @ 800 V | 800 V | 3A | -55°C ~ 150°C | 1.7 V @ 3 A | |
|
|
HER303G-D1-3000DIODE GEN PURP 200V 3A DO201AD |
3,683 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 65pF @ 4V, 1MHz | 50 ns | 2.5 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
HER308G-D1-0000DIODE GEN PURP 1000V 3A DO201AD |
3,228 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 4V, 1MHz | 75 ns | 2.5 µA @ 1000 V | 1000 V | 3A | -55°C ~ 150°C | 1.7 V @ 3 A | |
|
|
SR560-D1-0000DIODE SCHOTTKY 60V 5A DO201AD |
3,911 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 220pF @ 4V, 1MHz | - | 100 µA @ 60 V | 60 V | 5A | -55°C ~ 150°C | 700 mV @ 5 A | |
|
|
HS1B-F1-0000HFDIODE GEN PURP 100V 1A DO214AC |
3,635 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
ES1B-F1-0000HFDIODE GEN PURP 100V 1A DO214AC |
3,535 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 4V, 1MHz | 35 ns | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 950 mV @ 1 A | |
|
|
MUR420-D1-0000DIODE GEN PURP 200V 4A DO201AD |
2,442 | 0.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 4V, 1MHz | 25 ns | 2.5 µA @ 200 V | 200 V | 4A | -55°C ~ 150°C | 890 mV @ 4 A | |
|
SSL56B-F1-0000HFDIODE SCHOTTKY 60V 5A DO214AA |
3,101 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 5A | -55°C ~ 150°C | 500 mV @ 5 A | |
|
|
SS86-F1-0000DIODE SCHOTTKY 60V 8A DO214AB |
2,131 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 350pF @ 4V, 1MHz | - | 100 µA @ 60 V | 60 V | 8A | -55°C ~ 150°C | 700 mV @ 8 A | |
|
HS5G-F1-0000DIODE GEN PURP 400V 5A DO214AB |
2,468 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 85pF @ 4V, 1MHz | 75 ns | 5 µA @ 400 V | 400 V | 5A | -55°C ~ 150°C | 1.3 V @ 5 A |
