| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS1D-F1-0000HFDIODE GEN PURP 200V 1A DO214AC |
3,450 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
ES1J-F1-0000HFDIODE GEN PURP 600V 1A DO214AC |
2,649 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|

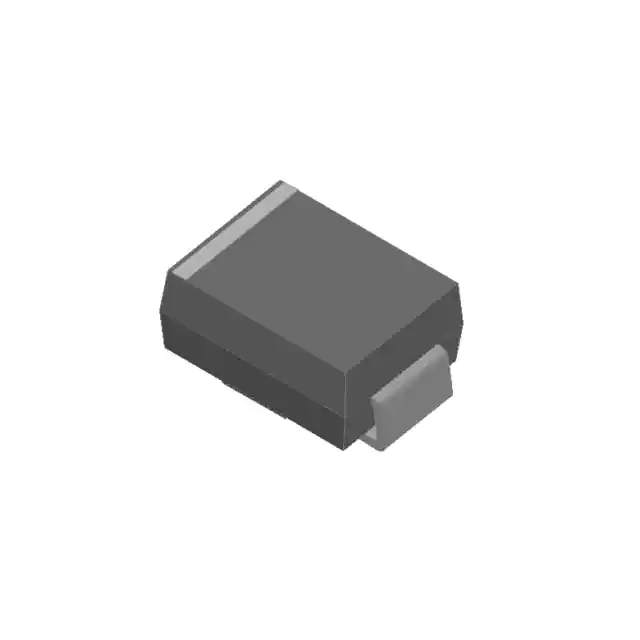

ES3JB-F1-0000HFDIODE GEN PURP 600V 3A DO214AA |
3,962 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 29pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 3A | -55°C ~ 150°C | 1.7 V @ 3 A | |
|
SS36B-F1-0000HFDIODE SCHOTTKY 60V 3A DO214AA |
3,031 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | 700 mV @ 3 A | |
|
|
SS54B-F1-0000HFDIODE SCHOTTKY 40V 5A DO214AA |
3,337 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 5A | -55°C ~ 125°C | 600 mV @ 5 A | |
|
GR5J-F1-0000DIODE GEN PURP 600V 5A DO214AB |
3,117 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 5A | -55°C ~ 150°C | 1.3 V @ 5 A | |
|
|
SS510B-F1-0000HFDIODE SCHOTTKY 100V 5A DO214AA |
2,521 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 5A | -55°C ~ 150°C | 900 mV @ 5 A | |
|
|
ES3FB-F1-0000HFDIODE GEN PURP 300V 3A DO214AA |
3,884 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 35pF @ 4V, 1MHz | 35 ns | 5 µA @ 300 V | 300 V | 3A | -55°C ~ 150°C | 1.3 V @ 3 A | |
|
SR2200-D1-0000DIODE SCHOTTKY 200V 2A DO204AC |
2,132 | 0.38 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 50pF @ 4V, 1MHz | - | 100 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 850 mV @ 2 A | |
|
|
SS310B-F1-0000HFDIODE SCHOTTKY 100V 3A DO214AA |
3,652 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 850 mV @ 3 A | |
|
S34-F1-0000HFDIODE SCHOTTKY 40V 3A SOD123FL |
2,326 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 165pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 500 mV @ 3 A | |
|
|
SS310-F1-0000HFDIODE SCHOTTKY 100V 3A DO214AB |
2,987 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 4V, 1MHz | - | 100 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 850 mV @ 3 A | |
|
|
SS315B-F1-0000HFDIODE SCHOTTKY 150V 3A DO214AA |
3,268 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 150 V | 150 V | 3A | -55°C ~ 150°C | 900 mV @ 3 A | |
|
|
ES3KB-F1-3000HFDIODE GEN PURP 800V 3A DO214AA |
3,044 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 21pF @ 4V, 1MHz | 35 ns | 5 µA @ 800 V | 800 V | 3A | -55°C ~ 150°C | 1.85 V @ 3 A | |
|
|
SS56B-F1-0000HFDIODE SCHOTTKY 60V 5A DO214AA |
3,438 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 5A | -55°C ~ 150°C | 700 mV @ 5 A | |
|
|
ES3GB-F1-0000HFDIODE GEN PURP 400V 3A DO214AA |
3,206 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 35pF @ 4V, 1MHz | 35 ns | 5 µA @ 1700 V | 400 V | 3A | -55°C ~ 150°C | 1.3 V @ 3 A | |
|
|
GR3K-F1-0000DIODE GEN PURP 800V 3A DO214AB |
2,827 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 35pF @ 4V, 1MHz | 500 ns | 5 µA @ 800 V | 800 V | 3A | -55°C ~ 150°C | 1.3 V @ 3 A | |
|
|
SS34B-F1-0000HFDIODE SCHOTTKY 40V 3A DO214AA |
3,204 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 500 mV @ 3 A | |
|
|
SS320B-F1-0000HFDIODE SCHOTTKY 200V 3A DO214AA |
3,038 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 900 mV @ 3 A | |
|
|
ES3DB-F1-0000HFDIODE GEN PURP 200V 3A DO214AA |
3,726 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 950 mV @ 3 A |
