| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SL1M-AQST Rect, 1000V, 1A |
2,639 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
SRL1G-AQST Rect, 400V, 1A |
3,832 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
SA154Fast Rect, 50V, 1.00A, 300ns |
3,744 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 300 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
BAV100SF Rect, 60V, 0.20A, 50ns |
2,554 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 200mA | -50°C ~ 175°C | 1.25 V @ 200 mA | |
|
|
FRL1KFast Rect. 800V, 1.00A, 500ns |
3,875 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 500 ns | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
SRL1J-AQST Rect, 600V, 1A |
2,720 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|

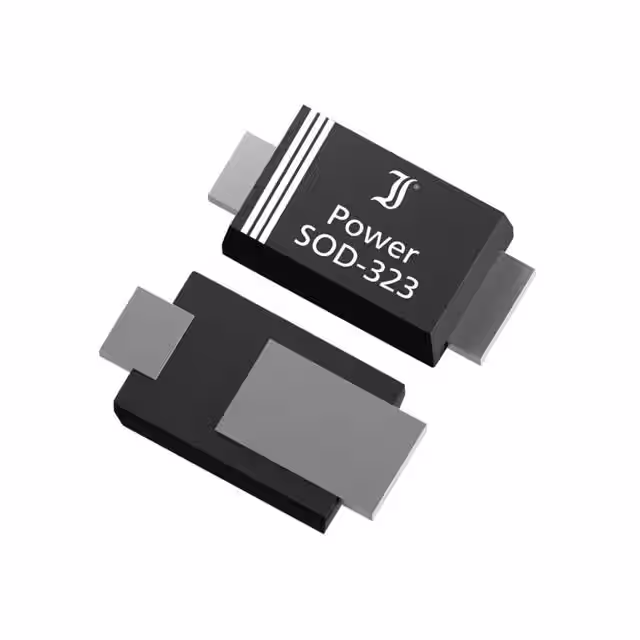

SRL1GST Rect, 400V, 1A |
3,084 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
GL1MR13Std Rect, 1000V, 1A |
3,640 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
SD103CW-AQSchottky, 20V, 0.35A, 0.6V, 2.0A |
3,792 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 10 V | 16 V | 350mA | -55°C ~ 125°C | 600 mV @ 200 mA | |
|
US1AUF Rect, 50V, 1.00A, 50ns |
3,476 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 1 V @ 1 A | |
|
BAT54WSchottkyD, 30V, 0.2A |
3,100 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 0V, 1MHz | 5 ns | 3 µA @ 30 V | 30 V | 200mA | -55°C ~ 150°C | 1 V @ 100 mA | |
|
SB190SSchottkyD, 90V, 1A |
3,669 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 90 V | 90 V | 1A | -50°C ~ 150°C | 850 mV @ 1 A | |
|

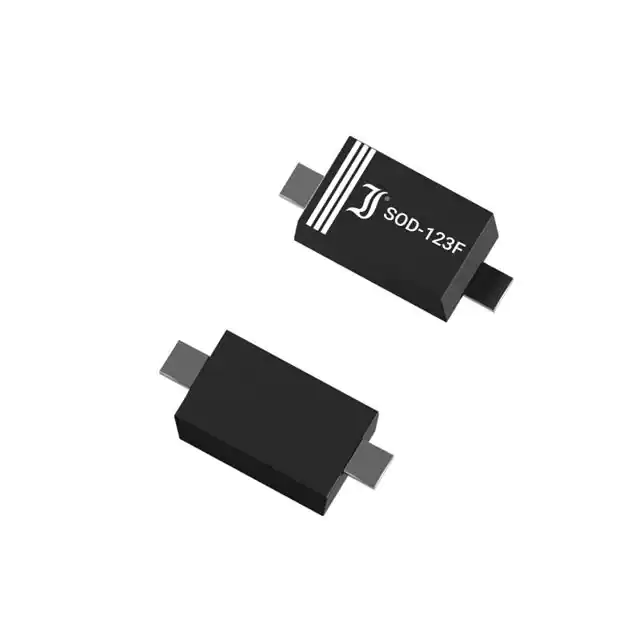

BAT46WSchottkyD, 100V, 0.15A |
3,397 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 20pF @ 0V, 1MHz | - | 5 µA @ 75 V | 100 V | 150mA | -55°C ~ 125°C | 450 mV @ 10 mA | |
|
UF4006UF Rect, 800V, 1.00A, 75ns |
2,246 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 175°C | 1.7 V @ 1 A | |
|
|
RGL34DFast Rect. 200V, 0.50A, 150ns |
2,070 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 150 ns | - | 200 V | 500mA | - | - | |
|
|
SB1100SSchottkyD, 100V, 1A |
2,152 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 850 mV @ 1 A | |
|
|
RAL1BFast Rect. 100V, 1.00A, 150ns |
2,757 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 3 µA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
RAL1AFast Rect. 50V, 1.00A, 150ns |
2,533 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 3 µA @ 50 V | 50 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
US1DUF Rect, 200V, 1.00A, 50ns |
2,395 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 1 V @ 1 A | |
|
|
BAV101SF Rect, 110V, 0.20A, 50ns |
3,412 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 200mA | -50°C ~ 175°C | 1.25 V @ 200 mA |
