| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB140SSchottkyD, 40V, 1A |
2,145 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 40 V | 40 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|
|
SB120SSchottkyD, 20V, 1A |
3,618 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 20 V | 20 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|
|
SB150SSchottkyD, 50V, 1A |
3,157 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 700 mV @ 1 A | |
|
|
SB130SSchottkyD, 30V, 1A |
3,923 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 30 V | 30 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|
GL34MR13Std Rect, 1000V, 0.5A |
2,219 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
1N4004GP-AQST Rect, 400V, 1A |
2,668 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A |
|
|
1N4005GP-AQST Rect, 600V, 1A |
3,262 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
|
1N4002GP-AQST Rect, 100V, 1A |
2,723 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A |
|
|
1N4001GP-AQST Rect, 50V, 1A |
2,736 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A |
|
FRL1BFast Rect. 100V, 1.00A, 150ns |
2,242 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FRL1AFast Rect. 50V, 1.00A, 150ns |
3,986 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FRL1DFast Rect. 200V, 1.00A, 150ns |
2,329 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
BYG10MST Rect, 1000V, 1.5A |
2,804 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1.5A | -50°C ~ 150°C | 1.15 V @ 1.5 A | |
|

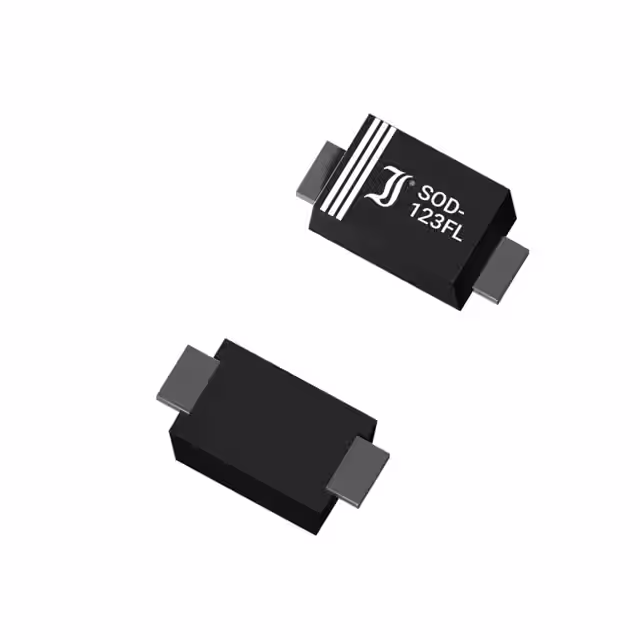

FRL1GFast Rect. 400V, 1.00A, 150ns |
2,069 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
|
FRL1JFast Rect. 600V, 1.00A, 250ns |
3,021 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
1SS405SchottkyD, 25V, 0.05A |
3,164 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 3.9pF @ 0V, 1MHz | - | 500 nA @ 20 V | 20 V | 50mA | -55°C ~ 125°C | 550 mV @ 50 mA | |
|
SK16SchottkyD, 60V, 1A |
3,939 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 1A | -50°C ~ 150°C | 700 mV @ 1 A | |
|
SL1D-AQST Rect, 200V, 1A |
2,452 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SL1G-AQST Rect, 400V, 1A |
2,183 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SL1J-AQST Rect, 600V, 1A |
3,773 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A |
