| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5408KRST Rect, 1000V, 3A |
24,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 3A | -50°C ~ 175°C | 1.1 V @ 3 A | |
|
US2JUF Rect, 600V, 2.00A, 75ns |
18,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 2A | -50°C ~ 150°C | 1.7 V @ 2 A | |
|
UF600KUF Rect, 800V, 6.00A, 100ns |
14,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 10 µA @ 800 V | 800 V | 6A | -50°C ~ 175°C | 1.7 V @ 5 A | |
|
US3AUF Rect, 50V, 3.00A, 50ns |
12,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
USL1JUF Rect, 600V, 1.00A, 75ns |
12,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 1 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
|
USL1GUF Rect, 400V, 1.00A, 50ns |
9,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 1 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.4 V @ 1 A | |
|
|
UF600JUF Rect, 600V, 6.00A, 100ns |
7,500 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 10 µA @ 600 V | 600 V | 6A | -50°C ~ 175°C | 1.7 V @ 5 A | |
|

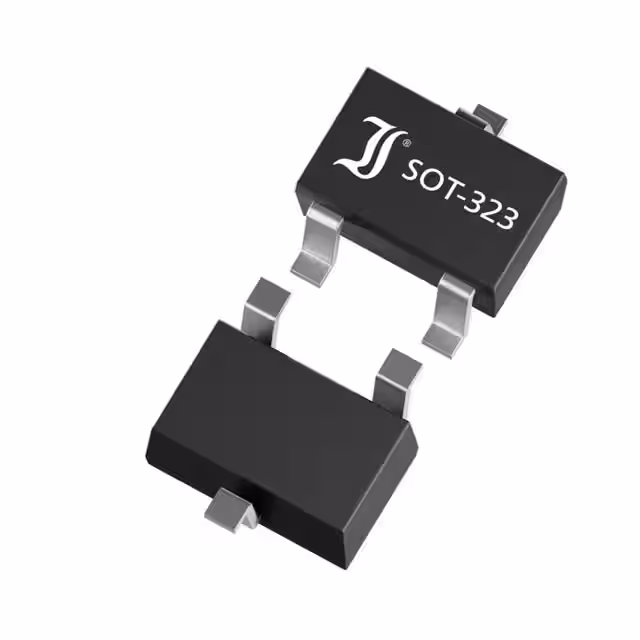

BAS21W-AQSmall SignalD, 250V, 250V, 0.2A |
3,970 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 mA @ 200 V | 200 V | 200mA | -55°C ~ 150°C | 1.25 V @ 200 nA |
|
|
US2BUF Rect, 100V, 2.00A, 50ns |
6,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 2A | -50°C ~ 150°C | 1 V @ 2 A | |
|
BAT54-AQSchottkyD, 30V, 0.2A |
2,008 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 0V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA | -55°C ~ 150°C | 1 V @ 100 mA | |
|
UFT800CUF Rect, 150V, 8.00A, 25ns |
4,000 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 5 µA @ 150 V | 150 V | 8A | -50°C ~ 150°C | 1 V @ 8 A | |
|
BY550-50Std Rect, 50V, 5A |
3,750 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 50 V | 50 V | 5A | -50°C ~ 175°C | 1 V @ 5 A | |
|
S2Y-CTCUT-TAPE VERSION. STANDARD RECO |
2,147 | 2.52 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 2000 V | 2000 V | 2A | -50°C ~ 150°C | 1.15 V @ 2 A | |
|
|
US3KUF Rect, 800V, 3.00A, 75ns |
3,000 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 3A | -50°C ~ 150°C | 1.7 V @ 3 A | |
|
AL1JST Rect, 600V, 1A |
2,500 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 3 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
SBX2540-3GSchottky, 40V, 25A |
2,924 | 2.61 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 40 V | 40 V | 25A | -50°C ~ 150°C | 570 mV @ 25 A | |
|
|
GL34AST Rect, 50V, 0.5A |
2,500 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 50 V | 50 V | 500mA | -50°C ~ 175°C | 1.2 V @ 500 mA | |
|
BY880-800-CTCUT-TAPE VERSION. STANDARD RECO |
3,866 | 2.74 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 800 V | 800 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
|
BAS40-AQSchottkyD, 40V, 0.2A |
3,478 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA | -55°C ~ 150°C | 1 V @ 40 mA | |
|
|
GL1DST Rect, 200V, 1A |
2,500 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 175°C | 1.2 V @ 1 A |
