| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BY2000-CTCUT-TAPE VERSION. STANDARD RECO |
2,241 | 3.31 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 2000 V | 2000 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |
|
P2500YST Rect, 2000V, 25A |
3,326 | 3.44 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 1.5 µs | 10 µA @ 2000 V | 2000 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
BY880-1200-CTCUT-TAPE VERSION. STANDARD RECO |
3,482 | 3.57 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1200 V | 1200 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
PT800M-CTCUT-TAPE VERSION. STANDARD RECO |
3,123 | 3.63 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 1000 V | 1000 V | 8A | -50°C ~ 150°C | 1.1 V @ 8 A | |
|
RA251-CTCUT-TAPE VERSION. STANDARD RECO |
2,161 | 3.67 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 100 V | 100 V | 25A | -50°C ~ 175°C | 1.1 V @ 80 A | |
|
KYZ35A4ST Rect, 400V, 35A |
3,981 | 3.69 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 400 V | 400 V | 35A | -50°C ~ 175°C | 1.1 V @ 35 A | |
|
S3KSMBST Rect, 800V, 3A |
3,220 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 800 V | 800 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |
|
|
BY880-1400-CTCUT-TAPE VERSION. STANDARD RECO |
2,845 | 3.75 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1400 V | 1400 V | 8A | -50°C ~ 175°C | 1.1 V @ 8 A | |
|
|
S3JSMBST Rect, 600V, 3A |
3,815 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |
|

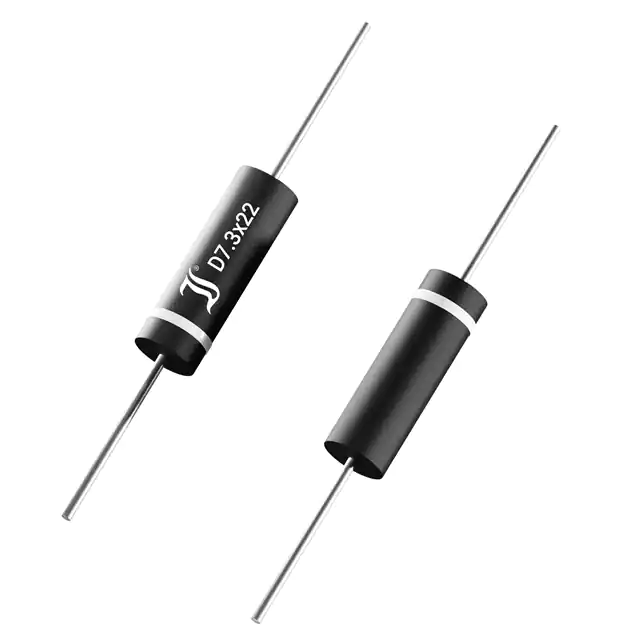

BY8Std Rect, 8000V, 0.5A |
2,439 | 3.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 1 µA @ 8000 V | 8000 V | 500mA | -50°C ~ 150°C | 8 V @ 500 mA | |
|
|
S3GSMBST Rect, 400V, 3A |
2,389 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |
|
RGL1BFast Rect. 100V, 1.00A, 150ns |
3,846 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
RGL1AFast Rect. 50V, 1.00A, 150ns |
2,696 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
SD103AW-AQSchottkyD, 40V, 0.35A |
3,818 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 30 V | 32 V | 350mA | -55°C ~ 125°C | 600 mV @ 200 mA | |
|
EGL34BSF Rect, 100V, 0.50A, 50ns |
2,956 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 100 V | 100 V | 500mA | -50°C ~ 175°C | 1.25 V @ 500 mA | |
|
GL34GR13Std Rect, 400V, 0.5A |
3,691 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 500mA | -50°C ~ 175°C | 1.2 V @ 500 mA | |
|
EM516ST Rect, 1800V, 1A |
2,676 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 1800 V | 1800 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
SM4007Std Rect, 1000V, 1A |
2,247 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
|
GL34JR13Std Rect, 600V, 0.5A |
3,562 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
|
UF4005UF Rect, 600V, 1.00A, 75ns |
3,534 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1.7 V @ 1 A |
