| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT10SCD120BCTDIODE SCHOTTKY 1.2KV 36A TO247 |
3,574 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 36A (DC) | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 150°C | Through Hole |
|

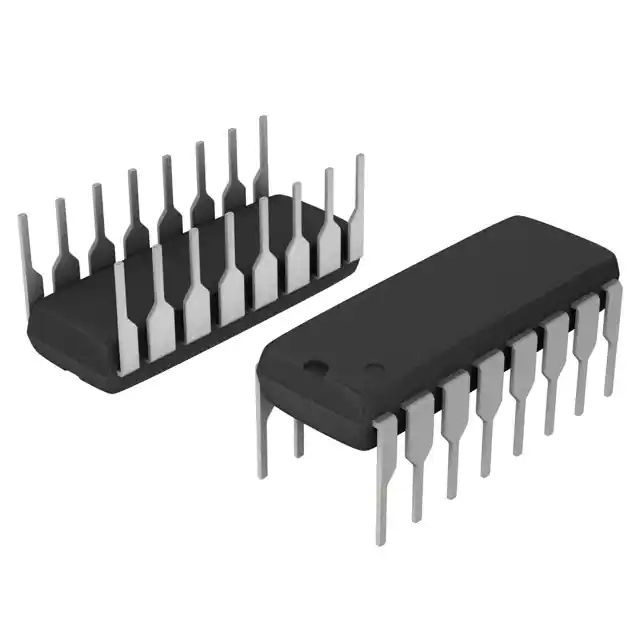

D16-4148E3/TUDIODE ARRAY GP 100V 16DIP |
3,414 | 0.00 |
RFQ |
Tube | - | Obsolete | 8 Independent | Standard | 100 V | - | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 100 µA @ 50 V | -55°C ~ 150°C | Through Hole | |
|
|
D16-4150E3/TUDIODE ARRAY GP 75V 16DIP |
2,785 | 0.00 |
RFQ |
Tube | - | Obsolete | 8 Independent | Standard | 75 V | - | 1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 µA @ 50 V | -55°C ~ 150°C | Through Hole | |
|
MAD1105E3/TUDIODE ARRAY 400MA 90V 14DIP |
3,682 | 0.00 |
RFQ |
Tube | - | Obsolete | - | - | - | - | - | - | - | - | - | Through Hole | |
|
|
MAD1106E3/TUDIODE ARRAY 400MA 90V 14DIP |
2,054 | 0.00 |
RFQ |
Tube | - | Obsolete | - | - | - | - | - | - | - | - | - | Through Hole | |
|
|
MAD1107E3/TUDIODE ARRAY 400MA 90V 14DIP |
3,225 | 0.00 |
RFQ |
Tube | - | Obsolete | - | - | - | - | - | - | - | - | - | Through Hole | |
|
CPT30145ADIODE MODULE 45V TO244AB |
2,675 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Schottky | 45 V | 150A | 620 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 45 V | - | Chassis Mount |
|
|
CPT600100ADIODE MODULE 100V TO244AB |
2,173 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Schottky | 100 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | - | Chassis Mount |
|
|
MSAD60-12DIODE MODULE 1.2KV 60A D1 |
2,843 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 1200 V | 60A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1200 V | - | Chassis Mount |
|
UFT14140ADIODE MODULE 400V 70A TO249 |
3,697 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 400 V | 70A | 1.25 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 400 V | - | Screw Mount |
|
|
UFT7130ADIODE MODULE 300V 35A |
3,954 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 300 V | 35A | 1.2 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 300 V | - | Screw Mount | |
|
|
UFT7130DDIODE MODULE 300V 35A |
2,678 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 300 V | 35A | 1.2 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 300 V | - | Screw Mount | |
|
UFT7150DIODE MODULE 500V 35A |
3,527 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 500 V | 35A | 1.2 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 500 V | - | Screw Mount | |
|
|
UFT7150ADIODE MODULE 500V 35A |
3,602 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 500 V | 35A | 1.2 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 500 V | - | Screw Mount | |
|
|
UFT7150DDIODE MODULE 500V 35A |
3,429 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 500 V | 35A | 1.2 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 500 V | - | Screw Mount | |
|
CPT12050DIODE MODULE 50V 60A TO244AB |
2,338 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 60A | 800 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 50 V | - | Chassis Mount |
|
|
CPT12050ADIODE MODULE 50V 60A TO244AB |
3,406 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Schottky | 50 V | 60A | 800 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 50 V | - | Chassis Mount |
|
|
CPT12050DDIODE MODULE 50V 60A TO244AB |
2,013 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 50 V | 60A | 800 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 50 V | - | Chassis Mount |
|

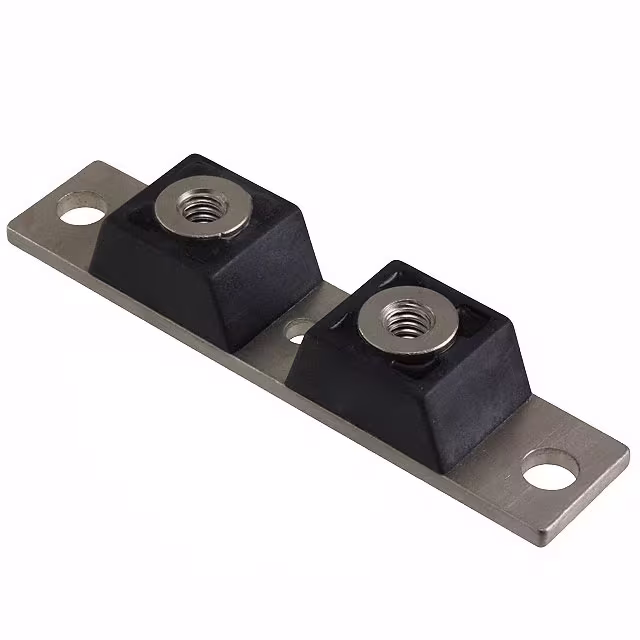

CPT20145DIODE MODULE 45V 100A TO244AB |
3,848 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 100A | 680 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 45 V | - | Chassis Mount |
|
|
CPT20145ADIODE MODULE 45V 100A TO244AB |
3,202 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Schottky | 45 V | 100A | 680 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 45 V | - | Chassis Mount |
