| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

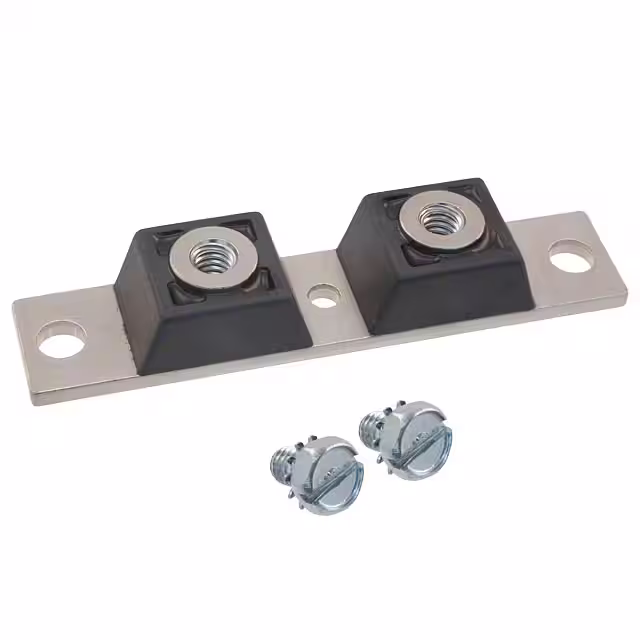

UFT20140DIODE MODULE 400V 100A |
2,794 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 100A | 1.25 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 50 µA @ 400 V | - | Screw Mount |
|
APT2X20DC60JDIODE MODULE 600V 20A SOT227 |
3,117 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Silicon Carbide Schottky | 600 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 600 V | -55°C ~ 175°C | Chassis Mount |
|
|
APT2X21DC120JDIODE MODULE 1.2KV 20A SOT227 |
3,202 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
APT2X41DC60JDIODE MODULE 600V 40A SOT227 |
2,661 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Silicon Carbide Schottky | 600 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 600 V | - | Chassis Mount |
|
|
APT2X41DC120JDIODE MODULE 1.2KV 40A SOT227 |
3,699 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | - | Chassis Mount |
|
APT2X61DC60JDIODE MODULE 600V 60A ISOTOP |
3,383 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Silicon Carbide Schottky | 600 V | 60A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 1.2 mA @ 600 V | - | Chassis Mount |
|

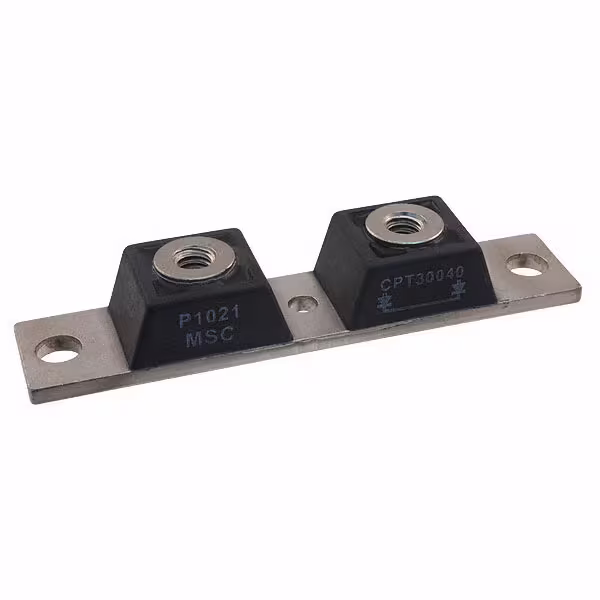

CPT30040DIODE MODULE 40V 150A TO244AB |
2,543 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 40 V | - | Chassis Mount |
|

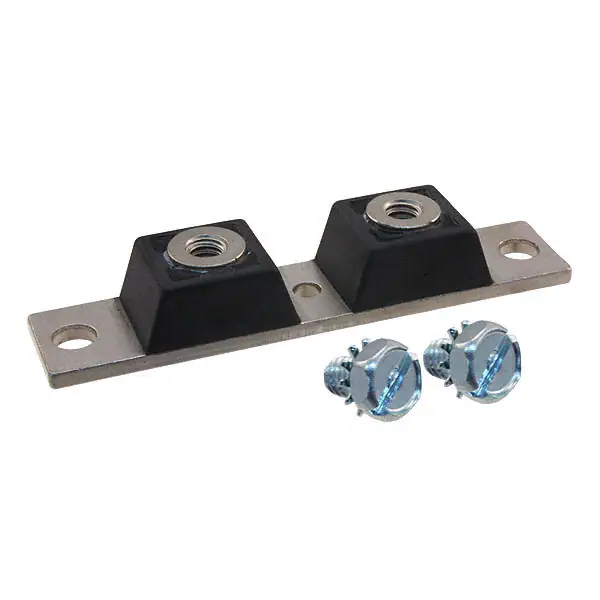

CPT30045DIODE MODULE 45V 150A 2TOWER |
2,569 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 45 V | - | Chassis Mount |
|

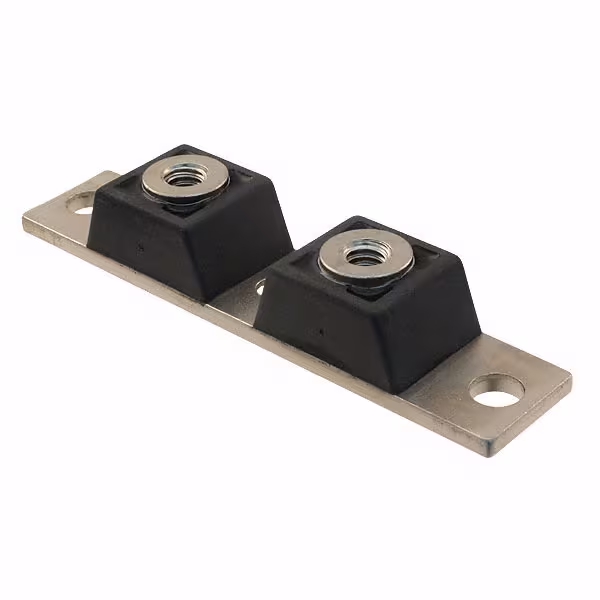

CPT30060DIODE MODULE 60V 150A 2TOWER |
3,213 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 150A | 820 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 60 V | - | Chassis Mount |
|
CPT30145DIODE MODULE 45V 150A 2TOWER |
2,361 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 150A | 620 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 45 V | - | Chassis Mount |
|

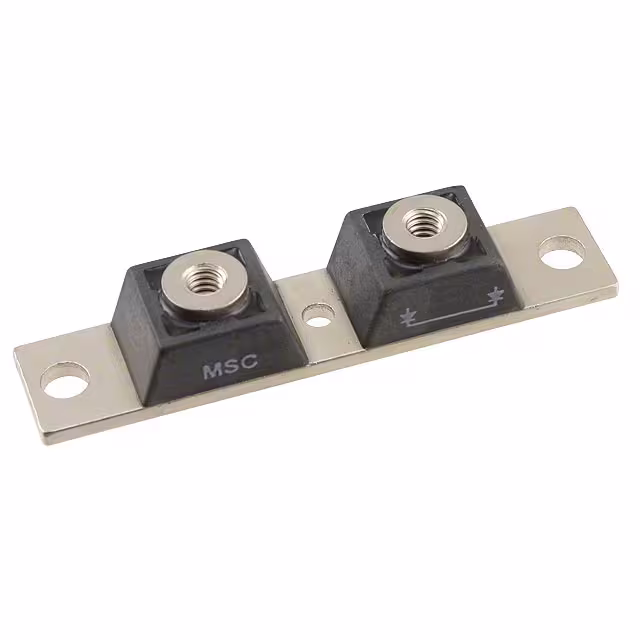

CPT50060DIODE MODULE 60V 250A 2TOWER |
2,164 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 250A | 730 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 60 V | - | Chassis Mount |
|

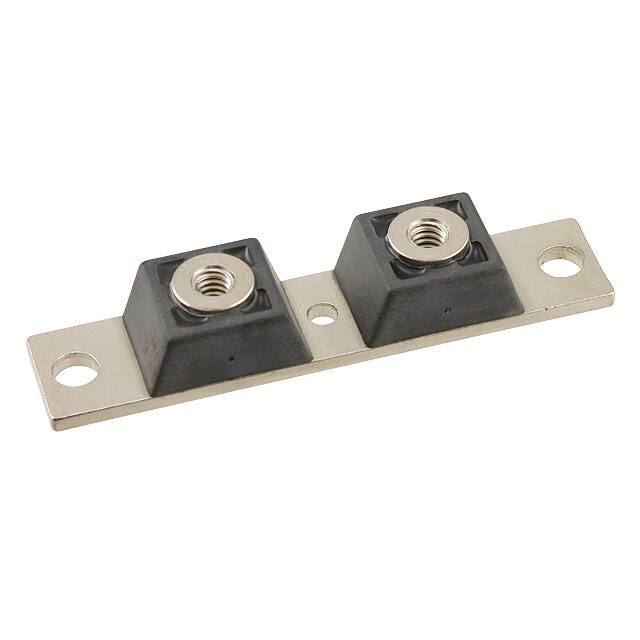

CPT600150DDIODE MODULE 150V 300A 2TOWER |
3,739 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 150 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 7 mA @ 150 V | - | Chassis Mount |
|

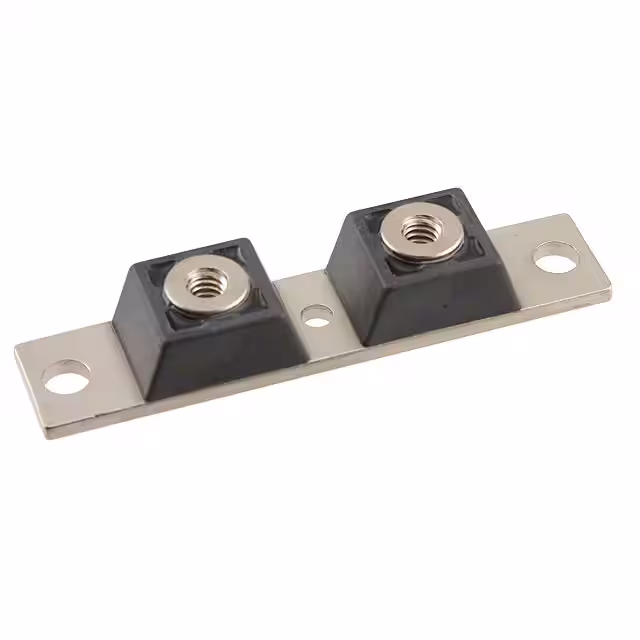

CPT60145DIODE MODULE 45V 300A 2TOWER |
2,202 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 300A | 550 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 21 mA @ 45 V | - | Chassis Mount |
|
FST153100DIODE MODULE 100V 75A TO249 |
3,791 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 75A | 940 mV @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 100 V | - | Screw Mount | |
|
FST16050DIODE MODULE 50V 80A TO249 |
2,349 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 50 V | - | Chassis Mount |
|
FST30050DIODE MODULE 50V 150A TO244 |
2,375 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 50 V | - | Screw Mount |
|
|
FST60100DIODE MODULE 100V 60A TO249 |
2,826 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 60A | 860 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | Chassis Mount |
|
|
FST63100DIODE MODULE 100V 30A 3MINIMOD |
3,005 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 30A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 100 V | - | Chassis Mount |
|

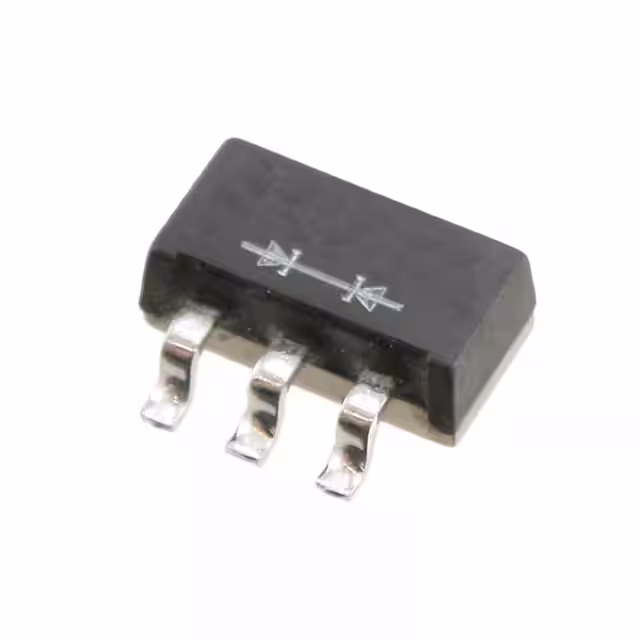

FST80150SM5CDIODE MODULE 150V 40A 3MINIMOD |
2,548 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 40A | 860 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 150 V | - | Surface Mount |
|

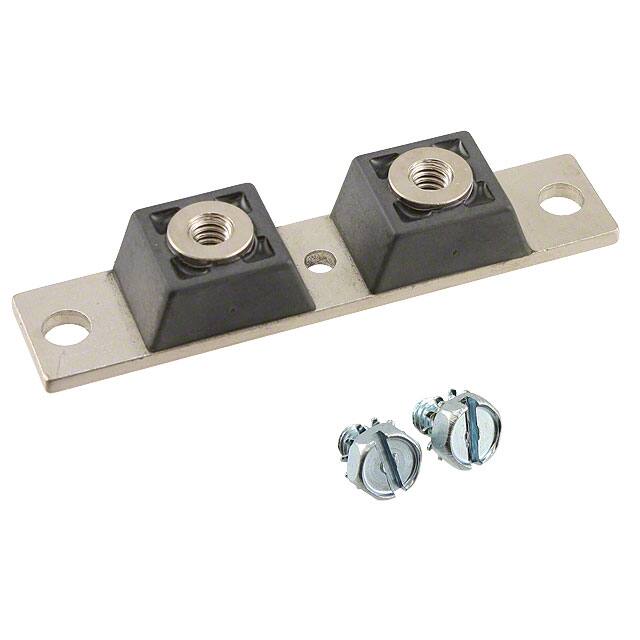

UFT12520DIODE MODULE 200V 60A |
3,724 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 60A | 975 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 30 µA @ 200 V | - | Chassis Mount |
