| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT15S20KCTGDIODE ARRAY SCHOTTKY 200V TO220 |
2,597 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 25A | 830 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 250 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
APT2X100D30JDIODE MODULE 300V 100A ISOTOP |
2,837 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 300 V | 100A | 1.4 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 47 ns | 500 µA @ 300 V | -55°C ~ 175°C | Chassis Mount |
|
|
APT2X60D20JDIODE MODULE 200V 60A ISOTOP |
2,393 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 200 V | 60A | 1.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 31 ns | 250 µA @ 200 V | - | Chassis Mount |
|
|
APT2X60D30JDIODE MODULE 300V 60A ISOTOP |
3,457 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 300 V | 60A | 1.4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 38 ns | 250 µA @ 300 V | - | Chassis Mount |
|
APT30DQ100BCTGDIODE ARRAY GP 1000V 30A TO247 |
2,143 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 1000 V | 30A | 3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 295 ns | 100 µA @ 1000 V | -55°C ~ 175°C | Through Hole |
|
|
APT8DQ60KCTGDIODE ARRAY GP 600V 8A TO220 |
3,612 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 8A | 2.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 19 ns | 25 µA @ 600 V | -55°C ~ 175°C | Through Hole |
|
|
FST20150E3DIODE ARRAY SCHOTTKY 150V TO220 |
2,889 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 10A | 830 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
FST30100E3DIODE ARRAY SCHOTTKY 100V TO247 |
3,617 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 850 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -55°C ~ 175°C | Through Hole |
|
|
FST31180E3DIODE ARRAY SCHOTTKY 180V TO220 |
3,421 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 180 V | 15A | 830 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 180 V | -55°C ~ 175°C | Through Hole |
|
|
FST50100E3DIODE ARRAY SCHOTTKY 100V TO247 |
2,254 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 25A | 850 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -55°C ~ 175°C | Through Hole |
|
|
SPB10045E3DIODE MODULE 45V 100A SOT227 |
3,005 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Schottky | 45 V | 100A | 570 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | - | Chassis Mount |
|
|
SPB160100E3DIODE MODULE 100V 160A SOT227 |
2,265 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Schottky | 100 V | 160A | 920 mV @ 160 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 100 V | - | Chassis Mount |
|

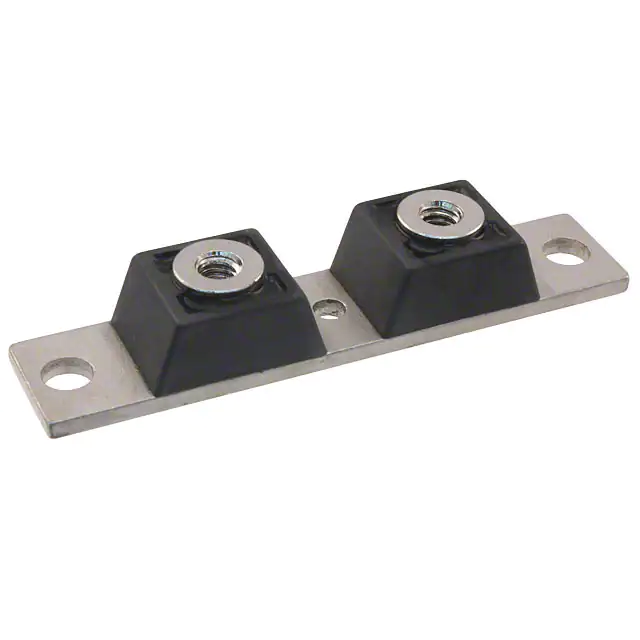

CPT40145DIODE MODULE 45V 200A MD3CC |
3,806 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | - | Chassis Mount |
|
|
APT2X50DC120JDIODE MODULE 1.2KV 50A SOT227 |
3,677 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 1200 V | - | Chassis Mount |
|
|
APT2X50DC60JDIODE MODULE 600V 50A SOT227 |
3,215 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Silicon Carbide Schottky | 600 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 600 V | - | Chassis Mount |
|
MSAD120-16DIODE ARRAY GP 1600V 120A D1 |
3,045 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 1600 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1600 V | - | Chassis Mount |
|
MSKD120-16DIODE MODULE 1.6KV 120A D1 |
3,579 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1600 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1600 V | - | Chassis Mount |
|
MSKD165-16DIODE MODULE 1.6KV 165A SD2 |
2,759 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1600 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | - | Chassis Mount |
|
CPT400100DIODE MODULE 100V 200A 2TOWER |
3,209 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 200A | 890 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 100 V | - | Chassis Mount |
|
|
MSCD200-16DIODE MODULE 1.6KV 200A SD2 |
2,735 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | - | Chassis Mount |
