| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCD60-08DIODE MODULE 800V 60A D1 |
3,028 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 800 V | 60A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 800 V | - | Chassis Mount |
|
|
MSCD70-08DIODE MODULE 800V 70A D1 |
2,982 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 800 V | 70A | 1.48 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 800 V | - | Chassis Mount |
|
|
MSCD70-12DIODE MODULE 1.2KV 70A D1 |
3,826 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 1200 V | 70A | 1.48 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1200 V | - | Chassis Mount |
|
|
MSKD100-08DIODE MODULE 800V 100A D1 |
2,183 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 100A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 800 V | - | Chassis Mount |
|
|
MSKD100-12DIODE MODULE 1.2KV 100A D1 |
3,437 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 100A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1200 V | - | Chassis Mount |
|
|
MSKD120-08DIODE MODULE 800V 120A D1 |
2,634 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 800 V | - | Chassis Mount |
|
|
MSKD120-12DIODE MODULE 1.2KV 120A D1 |
2,861 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | Chassis Mount |
|
MSKD165-08DIODE MODULE 800V 165A SD2 |
2,401 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 800 V | - | Chassis Mount |
|
|
MSKD165-12DIODE MODULE 1.2KV 165A SD2 |
3,422 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1200 V | - | Chassis Mount |
|
|
MSKD200-08DIODE MODULE 800V 200A SD2 |
3,910 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 200A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 800 V | - | Chassis Mount |
|
|
MSKD200-12DIODE MODULE 1.2KV 200A SD2 |
3,281 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 200A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1200 V | - | Chassis Mount |
|
|
MSKD36-08DIODE MODULE 800V 36A D1 |
2,676 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 36A | 1.25 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 800 V | - | Chassis Mount |
|
|
MSKD36-12DIODE MODULE 1.2KV 36A D1 |
3,537 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 36A | 1.25 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1200 V | - | Chassis Mount |
|
|
MSKD60-08DIODE MODULE 800V 60A D1 |
3,659 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 60A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 800 V | - | Chassis Mount |
|
|
MSKD60-12DIODE MODULE 1.2KV 60A D1 |
3,681 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 60A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1200 V | - | Chassis Mount |
|
|
MSKD70-08DIODE MODULE 800V 70A D1 |
3,428 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 70A | 1.48 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 800 V | - | Chassis Mount |
|
|
MSKD70-12DIODE MODULE 1.2KV 70A D1 |
2,100 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 70A | 1.48 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1200 V | - | Chassis Mount |
|
FST16145DIODE MODULE 45V 80A FLATPACK |
2,773 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 80A | 650 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | - | Screw Mount |
|

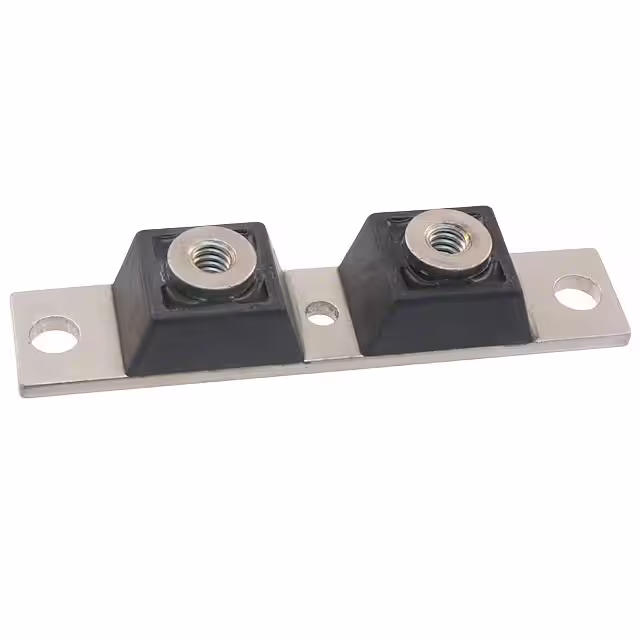

CPT50145DIODE MODULE 45V 250A 2TOWER |
2,654 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 250A | 550 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 12 mA @ 45 V | - | Chassis Mount |
|

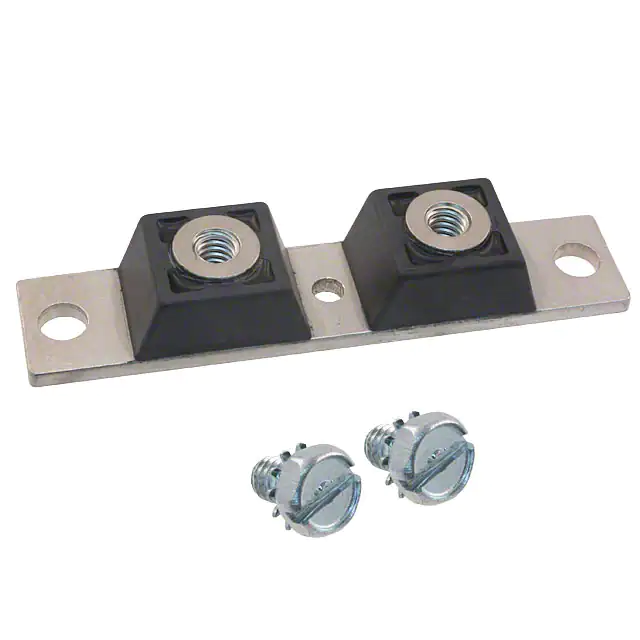

CPT30090DIODE MODULE 90V 150A 2TOWER |
2,951 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 90 V | 150A | 980 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 90 V | - | Chassis Mount |
