| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KBP310G-BPBRIDGE RECT 1PHASE 1KV 3A GBP |
2,183 | 0.72 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 3 A | 1.1 V @ 1 A | 10 µA @ 1000 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBP | ||||||
|

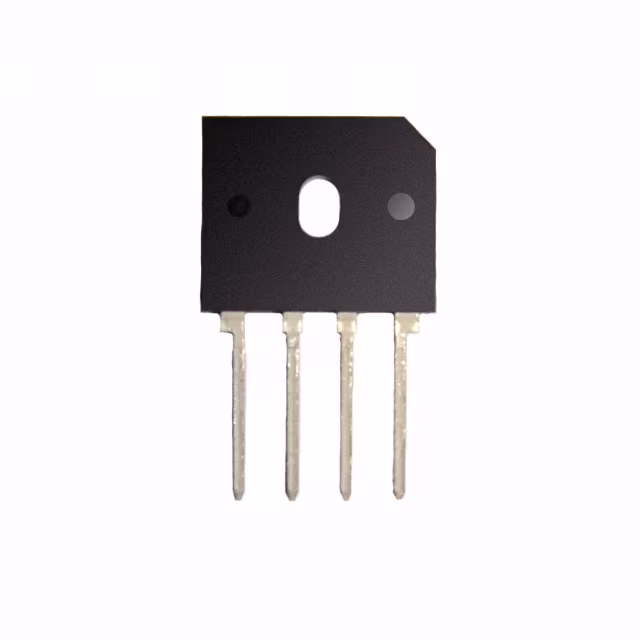

GBU4G-BPBRIDGE RECT 1PHASE 400V 4A GBU |
252 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 4 A | 1 V @ 2 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8G-BPBRIDGE RECT 1PHASE 400V 8A GBU |
2,628 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 8 A | 1 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|

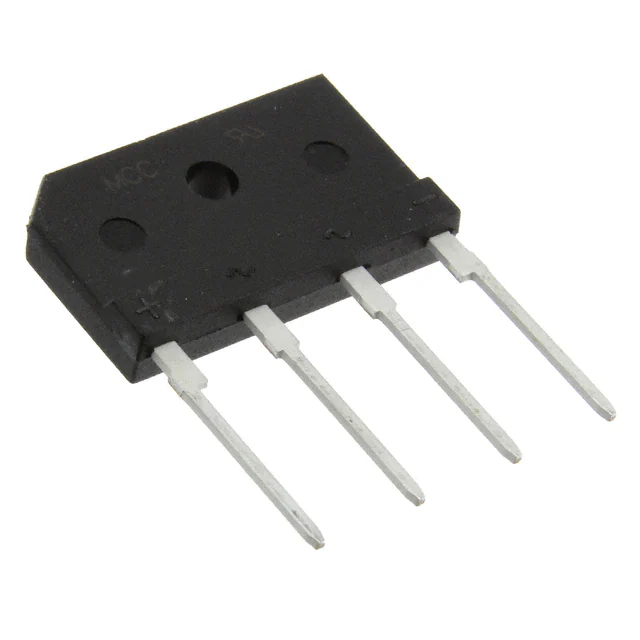

KBJ1010G-BPBRIDGE RECT 1PHASE 1KV 10A KBJ |
2,028 | 1.24 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C | Through Hole | 4-SIP, KBJ | ||||||
|
MD250S16M3-BPBRIDGE RECT 3PHASE 1.6KV 250A M3 |
2,154 | 53.13 |
RFQ |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 250 A | 1.6 V @ 300 A | 500 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | |||||||
|

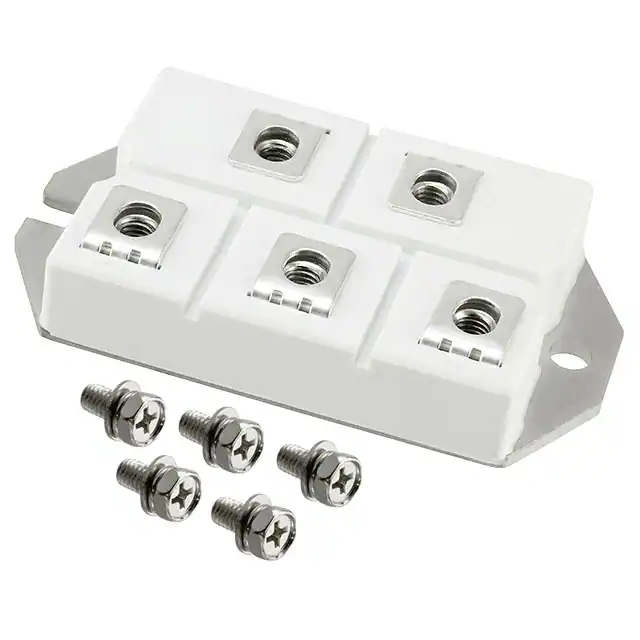

MD200S16M5-BPBRIDGE RECT 3PHASE 1.6KV 200A |
3,124 | 54.76 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 200 A | 1.7 V @ 300 A | 500 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|
PB5010-BP50A, BRIDGE, PB |
2,857 | 2.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.05 V @ 25 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, PB | ||||||
|
MP506W-BPBRIDGE RECT 1P 600V 50A MP-50WW |
2,439 | 4.82 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 50 A | 1.2 V @ 25 A | 10 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-50W | ||||||
|
|
MD160S16M3-BPBRIDGE RECT 3PHASE 1.6KV 160A M3 |
2,652 | 53.13 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 160 A | 1.75 V @ 300 A | 500 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | M3 | ||||||
|
TBS20M-TPBRIDGE RECT 1PHASE 1KV 2A 4TBS |
2,302 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 2 A | 1.1 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | ||||||
|
SDB204-TPBRIDGE RECT 1PHASE 400V 2A SDB-1 |
2,845 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 400 V | 2 A | 1.2 V @ 2 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
MD130S16M5-BPBRIDGE RECT 3PHASE 1.6KV 130A |
3,838 | 46.49 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 130 A | 1.8 V @ 300 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | M5 Module | ||||||
|
|
MD200S16M3-BPBRIDGE RECT 3PHASE 1.6KV 200A M3 |
2,352 | 53.13 |
RFQ |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 200 A | 1.6 V @ 300 A | 500 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | |||||||
|
UD2KB100-BPBRIDGE RECT 1PHASE 1KV 2A D3K |
2,192 | 0.48 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 2 A | 1.05 V @ 1 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
KBP210G-BPBRIDGE RECT 1PHASE 1KV 2A GBP |
3,351 | 0.54 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 2 A | 1.1 V @ 2 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBP | ||||||
|
GBU10KL-BPBRIDGE RECTIFIERS 800V 10A,GBU |
2,652 | 1.38 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBU | Active | Single Phase | Standard | 800 V | 10 A | 0.9 V @ 5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
|

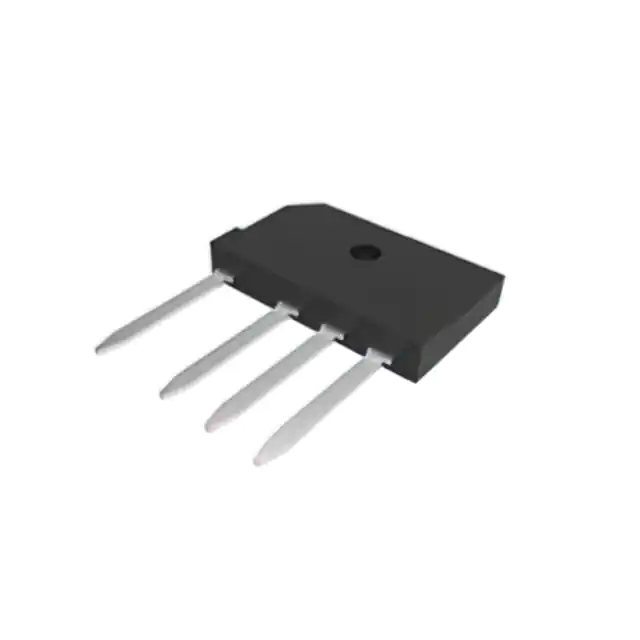

GBJ1508L-BPBRIDGE RECTIFIERS 800V 15A,GBJ |
2,009 | 1.70 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBJ | Active | Single Phase | Standard | 800 V | 15 A | 0.92 V @ 7.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
|
|
GBJ1506L-BPBRIDGE RECTIFIERS 600V 15A,GBJ |
2,865 | 1.70 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBJ | Active | Single Phase | Standard | 600 V | 15 A | 0.92 V @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
|
|
GBJ5006L-BPBRIDGE RECTIFIERS 600V 50A,GBJ |
2,903 | 1.98 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBJ | Active | Single Phase | Standard | 600 V | 50 A | 0.97 V @ 25 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
|
GBJ3508L-BPBRIDGE RECTIFIERS 800V 35A,GBJ |
2,550 | 2.06 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBJ | Active | Single Phase | Standard | 800 V | 35 A | 0.95 V @ 17.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Surface Mount | - |
