| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBPC3508W-BP35ABRIDGE RECTIFIERGBPC-W |
3,488 | 3.54 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|

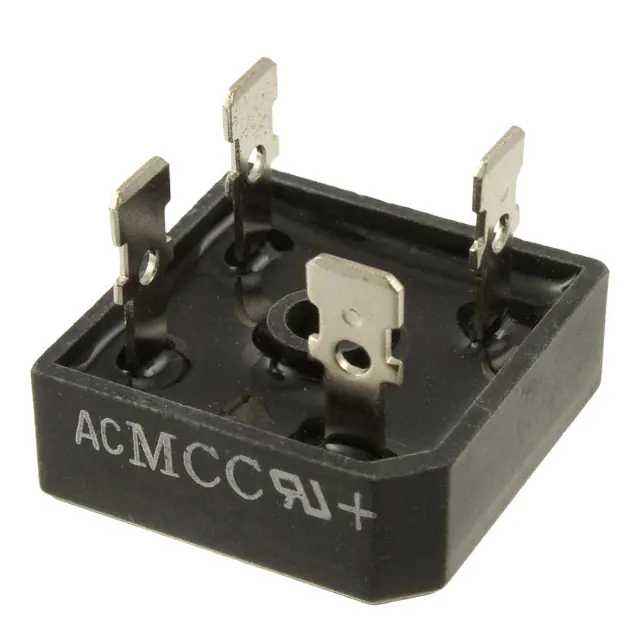

MP506-BPBRIDGE RECT 1P 600V 50A MP-50 |
2,806 | 3.52 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 50 A | 1.2 V @ 25 A | 10 µA @ 600 V | -50°C ~ 150°C (TJ) | QC Terminal | 4-Square, MP-50 | ||||||
|
GBPC5010-BPBRIDGE RECT 1PHASE 1KV 50A GBPC |
3,175 | 4.48 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
MP504W-BPBRIDGE RECT 1P 400V 50A MP-50WW |
3,460 | 4.54 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 50 A | 1.2 V @ 25 A | 10 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-50W | ||||||
|
GBU8D-BPBRIDGE RECT 1PHASE 200V 8A GBU |
3,159 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 8 A | 1 V @ 4 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
RS405GL-BPBRIDGE RECT 1PHASE 600V 4A RS-4L |
2,303 | 1.02 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 4 A | 1.1 V @ 3 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, RS-4L | ||||||
|
KBP410G-BPBRIDGE RECT 1PHASE 1KV 4A GBP |
2,038 | 0.91 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 4 A | 1.05 V @ 2 A | 10 µA @ 1000 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBP | ||||||
|
GBJA1010-BPBRIDGE RECT 1PHASE 1KV 10A JA |
2,290 | 1.09 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 10 µA @ 1000 V | -55°C ~ 150°C | Through Hole | 4-SIP, JA | ||||||
|
GBJ1508-BPBRIDGE RECT 1PHASE 800V 15A GBJ |
3,177 | 1.31 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 15 A | 1.05 V @ 7.5 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
RS402GL-BPBRIDGE RECT 1PHASE 100V 4A RS-4L |
3,058 | 1.38 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 4 A | 1.1 V @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-4L | ||||||
|
|
GBU10D-BPBRIDGE RECT 1PHASE 200V 10A GBU |
3,758 | 1.38 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 10 A | 1.1 V @ 5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|

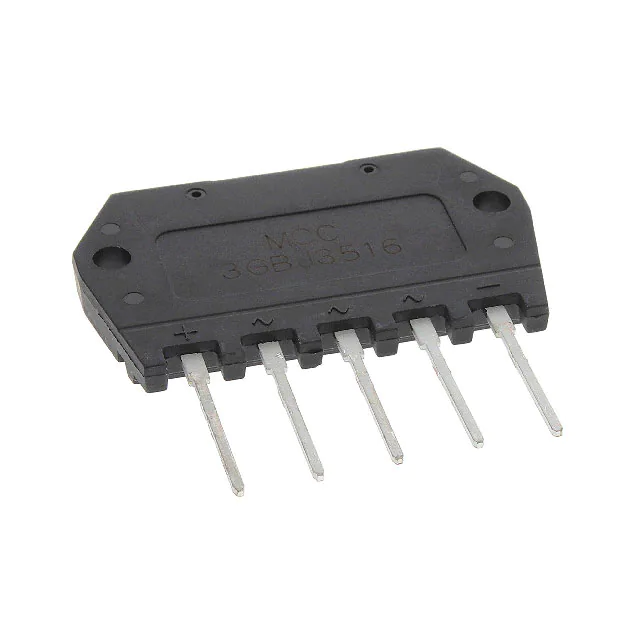

3GBJ3516-BPBRIDGE RECT 3P 1.6KV 35A TSB-5 |
653 | 5.93 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1600 V | -55°C ~ 150°C | Through Hole | 5-SIP, TSB-5 | ||||||
|
MD100S16M2-BPBRIDGE RECT 3P 1.6KV 100A M2 P |
216 | 36.82 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 100 A | 1.9 V @ 150 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | M2 | ||||||
|
TBS30M-TP3AGLASSPASSIVATEDBRIDGERECTIFIER |
2,208 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 3 A | 950 mV @ 1.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | ||||||
|
SDB105-TPBRIDGE RECT 1PHASE 600V 1A SDB-1 |
2,361 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 1 A | 1.1 V @ 1 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
UD3KB100-BPBRIDGE RECT 1PHASE 1KV 3A D3K |
3,023 | 0.52 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 3 A | 1.05 V @ 1.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
GBU6B-BPBRIDGE RECT 1PHASE 100V 6A GBU |
3,875 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 6 A | 1 V @ 3 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBJ1506-BPBRIDGE RECT 1PHASE 600V 15A GBJ |
3,330 | 1.31 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 15 A | 1.05 V @ 7.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
|
GBJ1502-BPBRIDGE RECT 1PHASE 200V 15A GBJ |
2,774 | 1.31 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 15 A | 1.05 V @ 7.5 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
LMB18S-TPBRIDGE RECT 80V 1A LMBS-1 |
3,319 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 80 V | 1 A | 850 mV @ 500 mA | 500 µA @ 80 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing |
