| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD50S16M4-BPBRIDGE RECT 3PHASE 1.6KV 50A |
3,318 | 36.82 |
RFQ |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 50 A | 1.7 V @ 150 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | |||||||
|

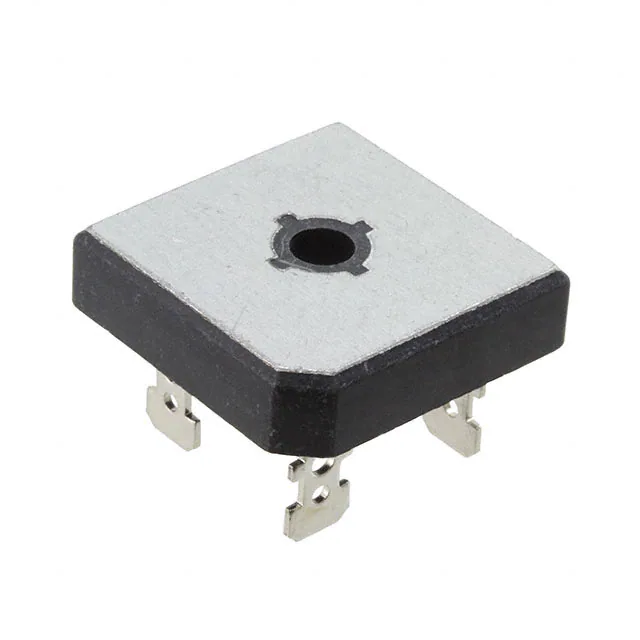

GBPC3501-BPBRIDGE RECT 1PHASE 100V 35A GBPC |
374 | 2.84 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|

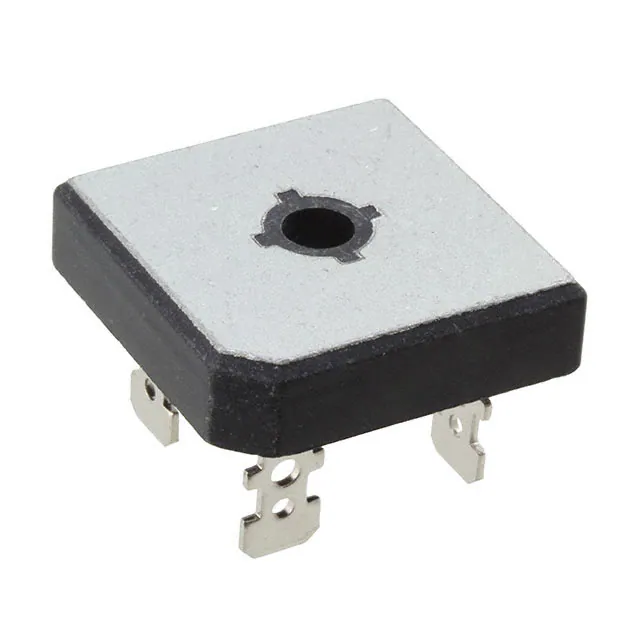

GBPC3506-BPBRIDGE RECT 1PHASE 600V 35A GBPC |
365 | 2.84 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
SDB103-TPBRIDGE RECT 1PHASE 200V 1A SDB-1 |
232 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 200 V | 1 A | 1.1 V @ 1 A | 10 µA @ 200 V | -55°C ~ 150°C | Surface Mount | 4-SMD, Gull Wing | ||||||
|
SDB154-TPBRIDGE RECT 1P 400V 1.5A SDB-1 |
483 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 400 V | 1.5 A | 1.1 V @ 1.5 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
LMB6S-TPBRIDGE RECT 1P 600V 1A LMBS-1 |
580 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 1 A | 950 mV @ 400 mA | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
GBU4JL-BPBRIDGE RECT 1PHASE 600V 4A GBU |
185 | 1.42 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 4 A | 900 mV @ 4 A | 10 µA @ 600 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBU | ||||||
|
PB2510-BP-HF25A, BRIDGE, PB |
745 | 2.14 |
RFQ |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, PB | |||||||
|
|
PB3510-BP-HF35A, BRIDGE, PB |
711 | 2.31 |
RFQ |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 35 A | 1 V @ 17.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, PB | |||||||
|
MB251W-BPBRIDGE RECT 1P 100V 25A MB-35W |
236 | 2.92 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 100 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square, MB-35W | ||||||
|
MD100S16M5-BPBRIDGE RECT 3PHASE 1.6KV 100A |
3,809 | 46.49 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 100 A | 1.9 V @ 300 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | M5 Module | ||||||
|

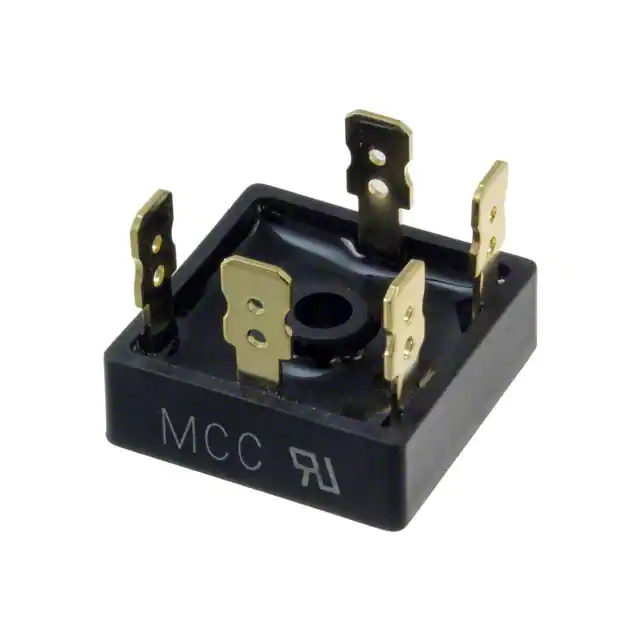

MT3516A-BPBRIDGE RECT 3P 1.6KV 35A MT-35A |
2,196 | 8.83 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 35 A | 1.2 V @ 12 A | - | -40°C ~ 150°C (TJ) | QC Terminal | 4-Square, MT-35A | ||||||
|
|
MT5016A-BPBRIDGE RECT 3P 1.6KV 50A MT-35A |
3,673 | 10.60 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 50 A | 1.2 V @ 12 A | - | -40°C ~ 150°C (TJ) | QC Terminal | 4-Square, MT-35A | ||||||
|
|
GBU8K-BPBRIDGE RECT 1PHASE 800V 8A GBU |
2,865 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 8 A | 1 V @ 4 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBJ1006-BPBRIDGE RECT 1PHASE 600V 10A GBJ |
3,247 | 1.25 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 10 A | 1.05 V @ 5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
GBPC5004-BPBRIDGE RECT 1PHASE 400V 50A GBPC |
3,258 | 4.48 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 50 A | 1.1 V @ 25 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
MP5010W-BPBRIDGE RECT 1P 1KV 50A MP-50WW |
3,639 | 4.82 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.2 V @ 25 A | 10 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-50W | ||||||
|
|
MD250S16M5-BPBRIDGE RECT 3PHASE 1.6KV 250A |
3,567 | 37.44 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 250 A | 1.6 V @ 300 A | 500 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|
SDB157-TPBRIDGE RECT 1P 1KV 1.5A SDB-1 |
2,859 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 1.5 A | 1.1 V @ 1.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
LMB210S-TPBRIDGE RECT 100V 2A LMBS-1 |
3,039 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LMB | Active | Single Phase | Schottky | 100 V | 2 A | 850 mV @ 1 A | 100 µA @ 100 V | -55°C ~ 150°C | Surface Mount | 4-SMD, Gull Wing |
