| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBJ2508L-BPBRIDGE RECTIFIERS 800V 25A,GBJ |
3,158 | 2.39 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBJ | Active | Single Phase | Standard | 800 V | 25 A | 0.92 V @ 12.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
|
GBU15L06-BPBRIDGE RECTIFIERS 600V 15A,GBU |
2,372 | 2.81 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBU | Active | Single Phase | Standard | 600 V | 15 A | 0.92 V @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
|
|
GBJ15L06-BPBRIDGE RECTIFIERS 600V 15A,GBJ |
3,727 | 3.13 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBJ | Active | Single Phase | Standard | 600 V | 15 A | 0.92 V @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
|
|
GBU25L06-BPBRIDGE RECTIFIERS 600V 25A,GBU |
3,094 | 3.54 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | GBU | Active | Single Phase | Standard | 600 V | 25 A | 0.92 V @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
|
TBS20J-TPBRIDGE RECT 1PHASE 600V 2A 4TBS |
3,833 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 2 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | ||||||
|
|
TBS22J-TPBRIDGE RECT 1P 600V 2.2A 4TBS |
2,933 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 2.2 A | 1.1 V @ 2 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | ||||||
|
|
TBS22M-TPBRIDGE RECT 1PHASE 1KV 2.2A 4TBS |
3,583 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 2.2 A | 1.1 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | ||||||
|
MB8S-TPBRIDGE RECT 1P 800V 500MA MBS-1 |
3,504 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 800 V | 500 mA | 1 V @ 400 mA | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
SDB157L-TPBRIDGE RECT 1P 1KV 1.5A SDBL-1 |
3,253 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 1.5 A | 1.1 V @ 1.5 A | 10 µA @ 1000 V | -55°C ~ 150°C | Surface Mount | 4-SMD, Gull Wing | ||||||
|

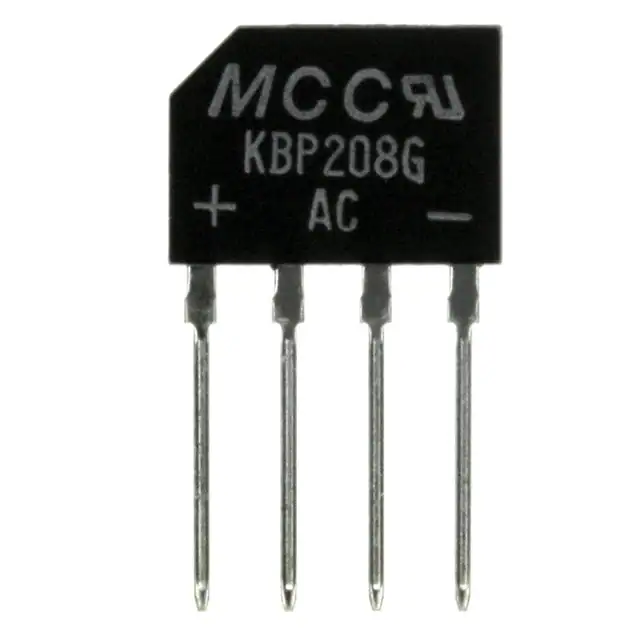

KBP208G-BPBRIDGE RECT 1PHASE 800V 2A GBP |
2,622 | 0.19 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 2 A | 1.1 V @ 2 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBP | ||||||
|
KBP3005G-BPBRIDGE RECT 50V 3A GBP |
3,313 | 0.20 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 50 V | 3 A | 1.1 V @ 1 A | 10 µA @ 50 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBP | ||||||
|
|
KBP301G-BPBRIDGE RECT 100V 3A GBP |
2,899 | 0.20 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 3 A | 1.1 V @ 1 A | 10 µA @ 100 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBP | ||||||
|
|
KBP302G-BPBRIDGE RECT 200V 3A GBP |
2,553 | 0.20 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 3 A | 1.1 V @ 1 A | 10 µA @ 200 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBP | ||||||
|
|
KBP304G-BPBRIDGE RECT 400V 3A GBP |
2,071 | 0.20 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 3 A | 1.1 V @ 1 A | 10 µA @ 400 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBP | ||||||
|
SDB156-TPBRIDGE RECT 1P 800V 1.5A SDB-1 |
2,730 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 800 V | 1.5 A | 1.1 V @ 1.5 A | 10 µA @ 800 V | -55°C ~ 150°C | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
GBL206-BPDIODE GPP SGL PHASE 2A GBL |
2,682 | 0.24 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 2 A | 1.05 V @ 1 A | 10 µA @ 600 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBL | ||||||
|
|
GBL208-BPDIODE GPP SGL PHASE 2A GBL |
2,149 | 0.24 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 2 A | 1.05 V @ 1 A | 10 µA @ 800 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBL | ||||||
|
|
GBL4005-BPC01DIODE GPP SGL PHASE 4A GBL |
2,364 | 0.29 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 50 V | 4 A | 1 V @ 2 A | 5 µA @ 50 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBL | ||||||
|
|
GBL401-BPC01DIODE GPP SGL PHASE 4A GBL |
3,720 | 0.29 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 4 A | 1 V @ 2 A | 5 µA @ 100 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBL | ||||||
|
|
GBL402-BPC01DIODE GPP SGL PHASE 4A GBL |
3,509 | 0.29 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 4 A | 1 V @ 2 A | 5 µA @ 200 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBL |
