| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD9740ACPZRL7IC DAC 10BIT A-OUT 32LFCSP |
1,086 | 16.58 |
RFQ |
Datasheet |
32-VFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | TxDAC® | Active | 10 | 1 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±0.15, ±0.12 | Current Source | -40°C ~ 85°C |
|
AD7224KRZ-18REELIC DAC 8BIT V-OUT 18SOIC |
920 | 14.91 |
RFQ |
Datasheet |
18-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 8 | 1 | 20µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, ±5V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|

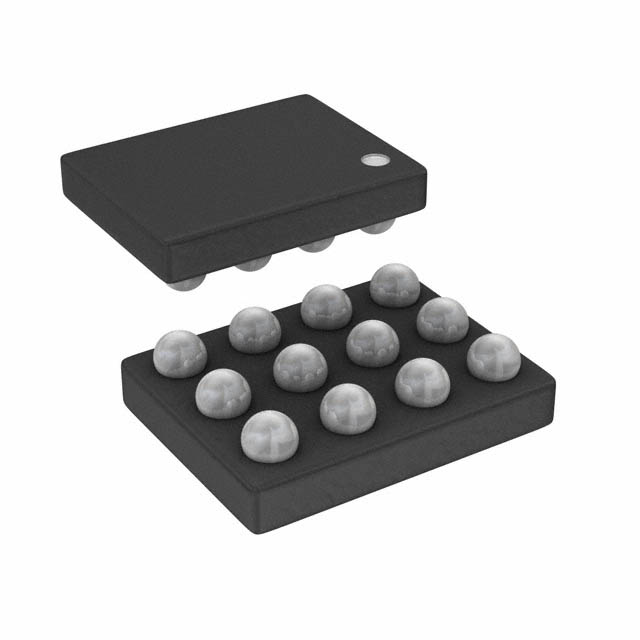

AD5665RBCBZ-1-RL7IC DAC 16BIT V-OUT 12WLCSP |
3,000 | 15.67 |
RFQ |
12-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | nanoDAC® | Active | 16 | 4 | 7µs | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C | |
|
AD5323BRUZ-REEL7IC DAC 12BIT V-OUT 16TSSOP |
243 | 18.19 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 2 | 10µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±2, ±0.2 | String DAC | -40°C ~ 105°C |
|
AD5629RBCBZ-1-RL7IC DAC 12BIT V-OUT 16WLCSP |
3,151 | 16.70 |
RFQ |
Datasheet |
16-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Bulk | denseDAC | Active | 12 | 8 | 7µs | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C |
|
LTC2642IMS-16#TRPBFIC DAC 16BIT V-OUT 10MSOP |
1,308 | 19.81 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 85°C |
|
LTC2620CGN#TRPBFIC DAC 12BIT V-OUT 16SSOP |
174 | 20.46 |
RFQ |
Datasheet |
16-SSOP (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 8 | 7µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.75, ±0.5 (Max) | - | 0°C ~ 70°C |
|
AD5324BCPZ-REEL7IC DAC 12BIT V-OUT 10LFCSP |
1,887 | 20.88 |
RFQ |
Datasheet |
10-VFDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±2, ±0.2 | String DAC | -40°C ~ 105°C |
|
AD5676ARUZ-REEL7IC DAC 16BIT V-OUT 20TSSOP |
225 | 21.46 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | nanoDAC+® | Active | 16 | 8 | 8µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±1.8, ±0.7 | String DAC | -40°C ~ 125°C |
|
AD5628ACPZ-2-RL7IC DAC 12BIT V-OUT 16LFCSP |
1,403 | 21.57 |
RFQ |
Datasheet |
16-WQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | denseDAC | Active | 12 | 8 | 7µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C |
|
|
AD5629RACPZ-2-RL7IC DAC 12BIT V-OUT 16LFCSP |
605 | 21.93 |
RFQ |
Datasheet |
16-WQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | denseDAC | Active | 12 | 8 | 7µs | Voltage - Buffered | No | I²C | External, Internal | 5V | 5V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C |
|
|
AD5628BCPZ-2-RL7IC DAC 12BIT V-OUT 16LFCSP |
126 | 20.74 |
RFQ |
Datasheet |
16-WQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | denseDAC | Active | 12 | 8 | 7µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C |
|
AD5675BCPZ-REEL7IC DAC 16BIT V-OUT 20LFCSP |
3,383 | 22.83 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC+® | Active | 16 | 8 | 8µs | Voltage - Buffered | No | I²C | External | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±1.8, ±0.7 | String DAC | -40°C ~ 125°C |
|
|
AD5669RACPZ-3-RL7IC DAC 16BIT V-OUT 16LFCSP |
11,575 | 23.74 |
RFQ |
Datasheet |
16-WQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | denseDAC | Active | 16 | 8 | 7µs | Voltage - Buffered | No | I²C | External, Internal | 5V | 5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C |
|
AD9754ARUZRL7IC DAC 14BIT A-OUT 28TSSOP |
692 | 27.07 |
RFQ |
Datasheet |
28-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | TxDAC® | Active | 14 | 1 | 35ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 5V | 2.7V ~ 5.5V | ±1.5, ±0.75 | Current Source | -40°C ~ 85°C |
|
|
AD9744ARUZRL7IC DAC 14BIT A-OUT 28TSSOP |
865 | 27.43 |
RFQ |
Datasheet |
28-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | TxDAC® | Active | 14 | 1 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±0.8, ±0.5 | Current Source | -40°C ~ 85°C |
|
|

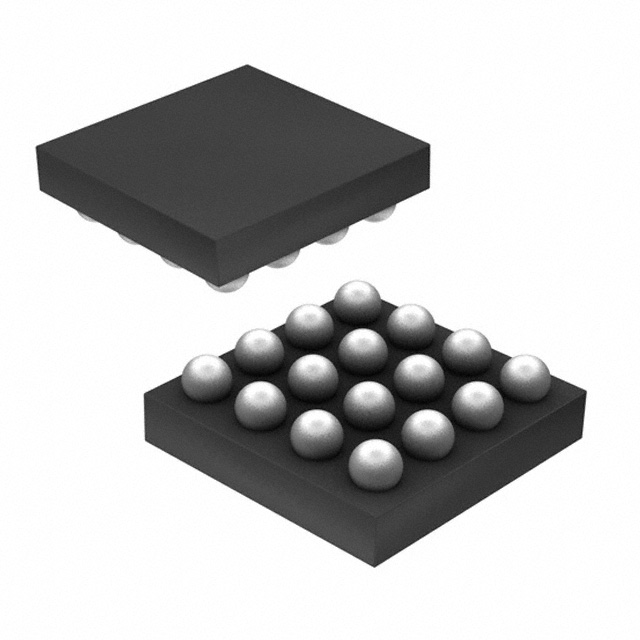

AD5669RBCBZ-1-R5IC DAC 16BIT V-OUT 16WLCSP |
7,757 | 31.18 |
RFQ |
Datasheet |
16-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT),Bulk | denseDAC | Active | 16 | 8 | 7µs | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C |
|
|
AD5668BCPZ-1500RL7IC DAC 16BIT V-OUT 16LFCSP |
228 | 32.32 |
RFQ |
Datasheet |
16-WQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | denseDAC | Active | 16 | 8 | 7µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C |
|
AD9106BCPZRL7IC DAC 12BIT A-OUT 32LFCSP |
1,250 | 29.64 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | TxDAC® | Active | 12 | 4 | 31.2ns (Typ) | Current - Unbuffered | Yes | SPI | External, Internal | 1.7V ~ 3.6V | 1.7V ~ 3.6V | ±0.5, ±0.4 | Segmented DAC | -40°C ~ 85°C |
|
LTC1668IG#TRPBFIC DAC 16BIT A-OUT 28SSOP |
1,694 | 37.89 |
RFQ |
Datasheet |
28-SSOP (0.209, 5.30mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 1 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | ±5V | - | ±8 (Max), ±1 | Current Steering | -40°C ~ 85°C |
