| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7524JPZD/A CONVERTER, 8-BIT, 1 FUNC, CM |
36,811 | 6.87 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Bulk | - | Active | 8 | 1 | 250ns | Current - Unbuffered | Yes | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max) | Multiplying DAC, R-2R | -40°C ~ 85°C |
|
AD5323BRUAD5323 - DUAL 12-BIT VOLTAGE OUT |
7,455 | 9.26 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD7804BNZAD7804 - QUAD 10-BIT SERIAL DAC |
186 | 12.90 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|

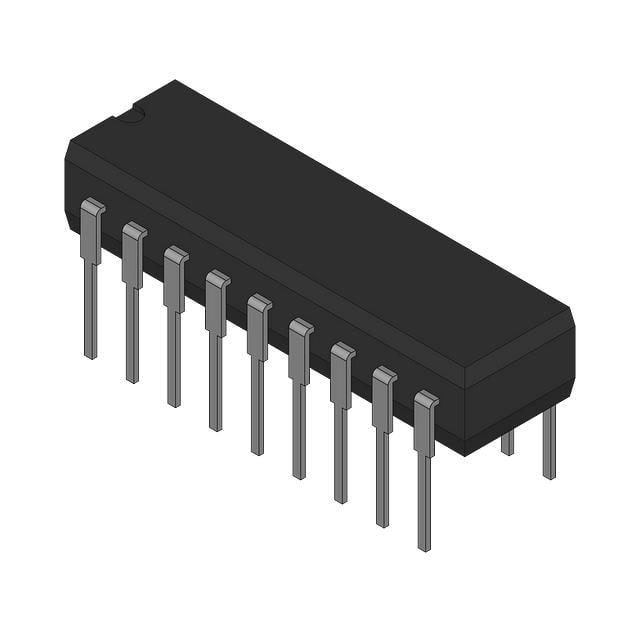

DAC10FXDAC10 - 10-BIT HIGH-SPEED MULTIP |
271 | 28.38 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|

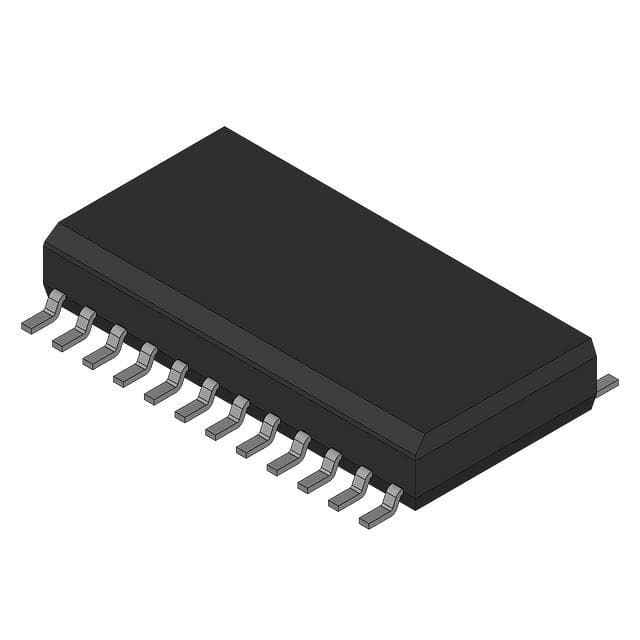

DAC8221FSZD/A CONVERTER, 2 FUNC, PARALLEL |
231 | 231.00 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | |
|
5962-8770201RA12-BIT BUFFERED, MULTIPLYING DAC |
1,558 | 63.87 |
RFQ |
Datasheet |
20-CDIP (0.300, 7.62mm) | Bulk | - | Active | 12 | 1 | 2µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±2 (Max), ±4 (Max) | Multiplying DAC, R-2R | -55°C ~ 125°C |
|
|
AD7534SQD/A CONVERTER, 1 FUNC, PARALLEL |
1,010 | 1010.00 |
RFQ |
Datasheet |
-55°C ~ 125°C | Bulk | AD7534 | Active | 14 | 1 | 800ns (Typ) | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1, ±1 | Multiplying DAC, R-2R | |
|
5962-8770103RADUAL 8-BIT BUFFERED MULTIPLYING |
205 | 116.34 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD5666BRUZ-1IC DAC 16BIT V-OUT 14TSSOP |
2,468 | 23.08 |
RFQ |
Datasheet |
14-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±16 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C |
|
AD558JPZIC DAC 8BIT V-OUT 20PLCC |
3,476 | 32.28 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Tube | DACPORT® | Active | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.5 (Max), - | R-2R | 0°C ~ 70°C |
|
AD9767ASTZIC DAC 14BIT A-OUT 48LQFP |
278 | 40.34 |
RFQ |
48-LQFP | Bulk,Tray | TxDAC+® | Active | 14 | 2 | 35ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 5.5V | 2.7V ~ 5.5V | ±1.5, ±1.0 | Current Source | -40°C ~ 85°C | |
|
LTC2657BIFE-L16#PBFIC DAC 16BIT V-OUT 20TSSOP |
3,162 | 46.24 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) Exposed Pad | Tube | - | Active | 16 | 8 | 9.1µs (Typ) | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.3 | - | -40°C ~ 85°C |
|
AD669BRZIC DAC 16BIT V-OUT 28SOIC |
3,799 | 69.37 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tube | DACPORT® | Active | 16 | 1 | 13µs | Voltage - Buffered | No | Parallel | External, Internal | ±13.5V ~ 16.5V | 5V | ±2 (Max), ±2 (Max) | R-2R | -40°C ~ 85°C |
|
AD9779ABSVZIC DAC 16BIT A-OUT 100TQFP |
2,987 | 70.81 |
RFQ |
Datasheet |
100-TQFP Exposed Pad | Tray | - | Active | 16 | 2 | - | Current - Unbuffered | Yes | Parallel | Internal | 3.13V ~ 3.47V | 1.7V ~ 2.05V, 3.13V ~ 3.47V | ±6, ±2.1 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
AD9736BBCZIC DAC 14BIT A-OUT 160CSPBGA |
3,145 | 82.82 |
RFQ |
160-LFBGA, CSPBGA | Tray | - | Active | 14 | 1 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±1, ±0.6 | Oversampling Interpolating DAC | -40°C ~ 85°C | |
|
AD569JPZIC DAC 16BIT V-OUT 28PLCC |
2,376 | 100.65 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tube | - | Active | 16 | 1 | 6µs | Voltage - Buffered | No | Parallel | External | ±10.8V ~ 13.2V | - | ±0.02, ±0.5 | Segmented DAC | 0°C ~ 70°C |
|

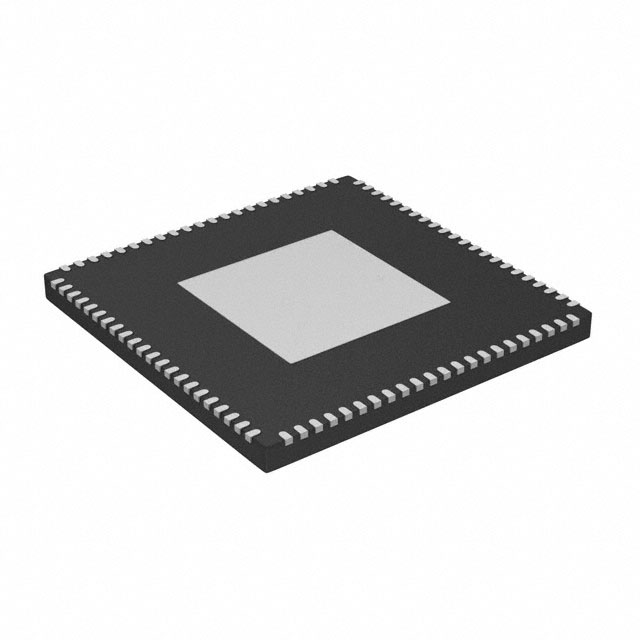

AD9144BCPZIC DAC 16BIT A-OUT 88LFCSP |
3,547 | 166.58 |
RFQ |
Datasheet |
88-VFQFN Exposed Pad, CSP | Tray | TxDAC+® | Active | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±2, ±1 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
AD5302ARMZIC DAC 8BIT V-OUT 10MSOP |
3,948 | 5.51 |
RFQ |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tube | - | Active | 8 | 2 | 8µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.15, ±0.02 | String DAC | -40°C ~ 105°C | |
|
AD5626BRMZIC DAC 12BIT V-OUT 8MSOP |
3,499 | 6.12 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | nanoDAC® | Active | 12 | 1 | 16µs (Typ) | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±0.25, ±0.75 | R-2R | -40°C ~ 85°C |
|
LTC2634IMSE-LMI8#PBFIC DAC 8BIT V-OUT 10MSOP |
2,008 | 6.81 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad | Tube | - | Active | 8 | 4 | 3.3µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.5 (Max) | - | -40°C ~ 85°C |
