| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD562AD/BCD12-BIT D/A CONVERTER |
1,728 | 98.64 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD562 | Active | 12 | 1 | 1.5µs (Typ) | Current - Unbuffered | No | - | External, Internal | 4.75V ~ 15.8V | 4.75V ~ 15.8V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC | -25°C ~ 85°C |
|
|
AD563JD/BIN12-BIT D/A CONVERTER |
403 | 99.51 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD563 | Active | 12 | 1 | 1.5µs (Typ) | Current - Unbuffered | No | - | Internal | 4.75V ~ 15.8V | 4.75V ~ 15.8V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC | 0°C ~ 70°C |
|
AD7543SEDAC, SERIAL INPUT LOADING |
441 | 100.92 |
RFQ |
Datasheet |
20-CLCC | Bulk | AD7543 | Active | 12 | 1 | 2µs | Current - Unbuffered | Yes | Serial | External | 5V | 5V | ±1 (Max), ±2 (Max) | R-2R | -55°C ~ 125°C |
|
|
AD7847SQDAC, 2 CH, PARALLEL, WORD INPUT |
506 | 105.71 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD7847 | Active | 12 | 2 | 5µs | Voltage - Buffered | Yes | Parallel | External | ±14.25V ~ 15.75V | ±14.25V ~ 15.75V | ±0.5, ±1 | R-2R, Segmented DAC | -55°C ~ 125°C |
|
AD7535SQDAC, PARALLEL, WORD INPUT |
1,657 | 107.60 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Bulk | AD7535 | Active | 14 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1, ±1 | R-2R | -55°C ~ 125°C |
|
AD9712BTE/883BDAC, PARALLEL, WORD INPUT |
225 | 110.50 |
RFQ |
Datasheet |
28-CLCC | Bulk | AD9712B | Active | 12 | 1 | 27ns | Current - Buffered | No | - | External, Internal | - | - | ±1, ±1.25LSB | Current Source, R-2R | -55°C ~ 125°C |
|
|
AD9712BTQ/883BDAC, PARALLEL, WORD INPUT |
113 | 110.50 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Bulk | AD9712B | Active | 12 | 1 | 27ns | Current - Buffered | No | - | External, Internal | - | - | ±1, ±0.5 | Current Source, R-2R | -55°C ~ 125°C |
|
AD7228LPZIC DAC 8BIT V-OUT 28PLCC |
2,397 | 123.12 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Bulk,Tube | - | Active | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | 13.5V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD7520UQ/883BDAC, PARALLEL, WORD INPUT |
108 | 115.46 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | AD7520 | Active | 10 | 1 | 500ns | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±2 | Multiplying DAC | - |
|
ADV7150LS170TRIPLE 10-BIT VIDEO RAM-DAC |
241 | 120.99 |
RFQ |
Datasheet |
160-BQFP | Bulk | ADV7150 | Active | 10 | 3 | - | Current - Unbuffered | Yes | Parallel | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±1 (Max), ±1 (Max) | - | 0°C ~ 70°C |
|
AD558SD/883BIC DAC 8BIT V-OUT 16CDIP |
3,434 | 131.70 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk,Tube | DACPORT® | Active | 8 | 1 | 1.5µs | Voltage - Unbuffered | No | I²L | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±2.5, ±2 | R-2R | -55°C ~ 125°C |
|
|
AD562KD/BIN12-BIT D/A CONVERTER |
651 | 124.90 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD562 | Active | 12 | 1 | 1.5µs (Typ) | Current - Unbuffered | No | - | External, Internal | 4.75V ~ 15.8V | 4.75V ~ 15.8V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC | 0°C ~ 70°C |
|

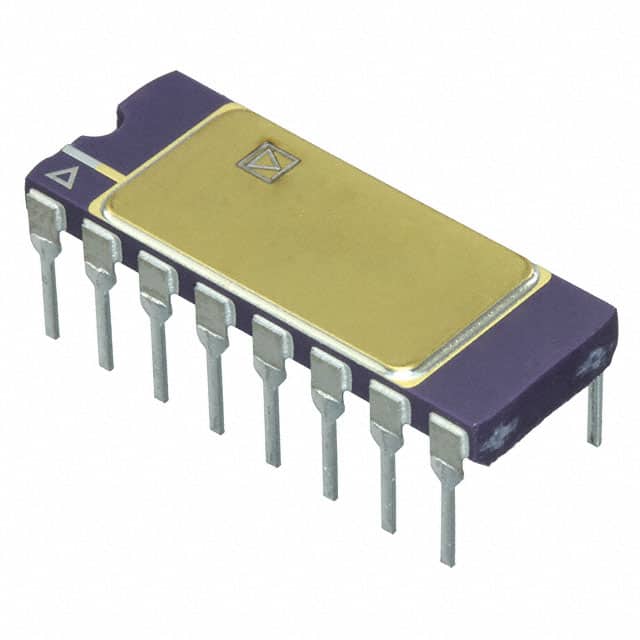

5962-8778901EAIC DAC 8BIT V-OUT 16CERDIP |
2,224 | 1.00 |
RFQ |
16-CDIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.75 (Max), - | R-2R | -55°C ~ 125°C | |
|
LTC2000ACY-16#PBFIC DAC 16BIT A-OUT 170BGA |
106 | 152.69 |
RFQ |
Datasheet |
170-LFBGA | Tray | - | Active | 16 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±1, ±0.5 | Current Steering | 0°C ~ 70°C |
|
|
AD563JD/BCD12-BIT D/A CONVERTER |
374 | 145.89 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD563 | Active | 12 | 1 | 1.5µs (Typ) | Current - Unbuffered | No | - | Internal | 4.75V ~ 15.8V | 4.75V ~ 15.8V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC | 0°C ~ 70°C |
|
HDS-1250AKMDAC 1-CH RESISTOR-STRING 12 BIT |
2,273 | 152.21 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
5962-9091104M3AD/A CONVERTER, 1 FUNC, PARALLEL |
206 | 155.99 |
RFQ |
Datasheet |
28-CLCC | Bulk | AD9713B | Active | 12 | 1 | 27ns | Current - Unbuffered | No | - | External, Internal | -5.2V | -5.2V | ±1, ±0.5 | Current Source, R-2R | -55°C ~ 125°C |
|
|
AD563TD/BIN12-BIT D/A CONVERTER |
398 | 157.26 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD563 | Obsolete | 12 | 1 | 1.5µs (Typ) | Current - Unbuffered | No | - | Internal | 4.75V ~ 15.8V | 4.75V ~ 15.8V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC | -55°C ~ 125°C |
|
|
AD395KDDAC, PARALLEL, WORD INPUT |
413 | 164.88 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Bulk | AD395 | Active | 12 | 4 | - | Voltage - Buffered | No | Parallel | External | ±13.5V ~ 16.5V | ±13.5V ~ 16.5V | - | Multiplying DAC | 0°C ~ 70°C |
|
|
5962-8965703LADUAL 12-BIT DAC |
370 | 165.12 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | - | Obsolete | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±1 (Max) | Multiplying DAC, R-2R | -55°C ~ 125°C |
