| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

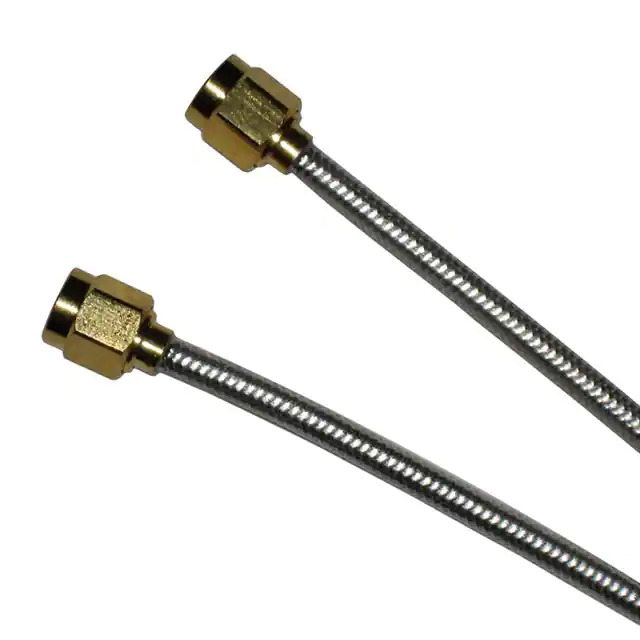

135101-R2-36.00CBL ASSY SMA PLUG-PLUG .141 36 |
103 | 46.27 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Copper | - | - |
|

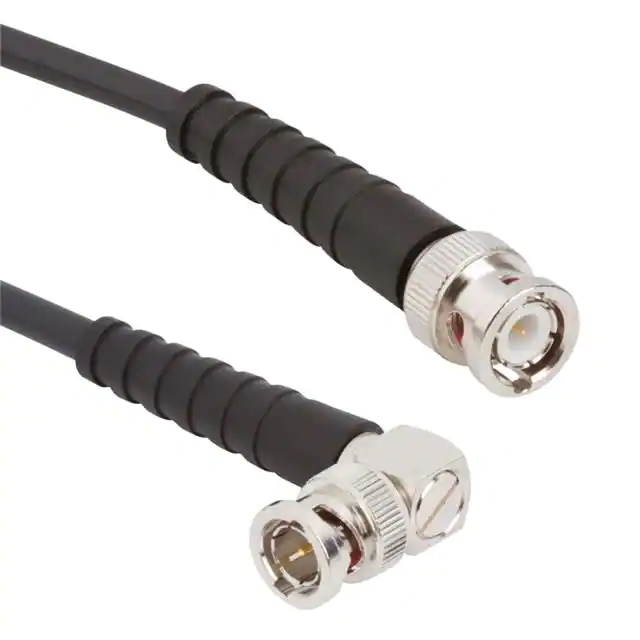

115103-04-12.00BNC RIGHT ANGLE PLUG TO BNC STRA |
3,394 | 19.32 |
RFQ |
Datasheet |
Bag | BNC | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-58 | 50 Ohms | - | - | - | Black | - | - |
|

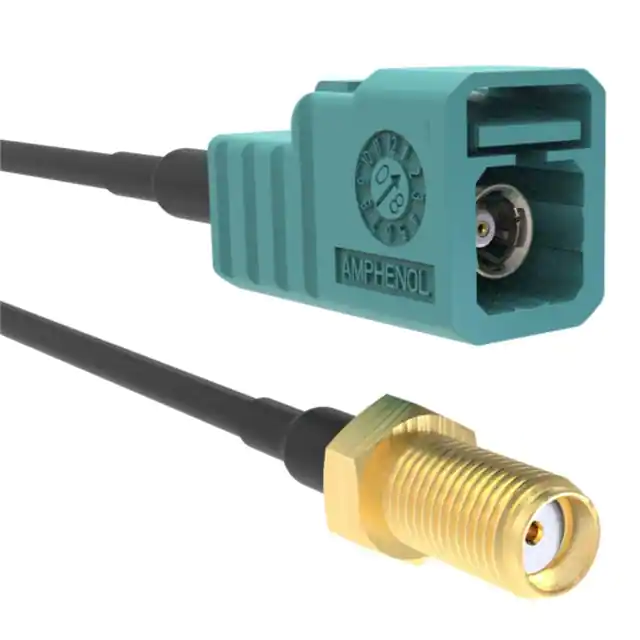

095Z820-159-012FAKRA STRAIGHT JACK TO SMA STRAI |
105 | 20.43 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra III | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|

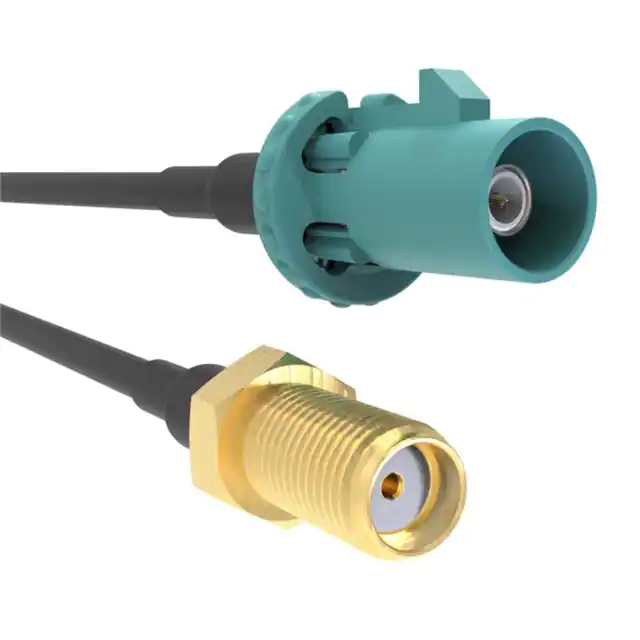

095Z820-160-012FAKRA STRAIGHT PLUG TO SMA STRAI |
105 | 20.49 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra II | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
|
115103-04-48.00BNC RIGHT ANGLE PLUG TO BNC STRA |
2,791 | 20.74 |
RFQ |
Datasheet |
Bag | BNC | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-58 | 50 Ohms | - | - | - | Black | - | - |
|
135103-02-12.00CBL ASSY SMA PLUG RG174 12 |
1,803 | 20.85 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Shielded | - |
|
095-850-269-072CBL ASSY BNC JACK TO PLG RG58 6' |
117 | 24.50 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C |
|
095FPZFPZSHM500RF CABLE ASSEMBLY FAKRA STRAIGHT |
250 | 28.12 |
RFQ |
Datasheet |
Bag | - | Active | Fakra to Fakra | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 196.9 (5.0m) 16.4' | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded, Z Code | -40°C ~ 85°C |
|
095-902-530-018SMA STRAIGHT PLUG TO N STRAIGHT |
115 | 37.11 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

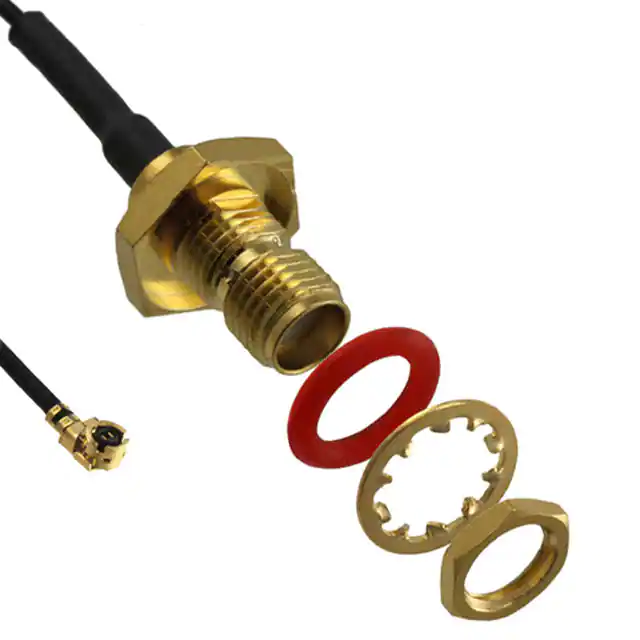

336309-12-0050CBL ASSY SMA-UMC 1.969 |
117 | 27.73 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
336309-12-0300CBL ASSY SMA-UMC 11.811 |
114 | 28.92 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
A-1PA-113-040B2A-1PA-113-040B2 |
4,395 | 3.12 |
RFQ |
Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
245103-02-72.00CBL ASSY BNC-SMB PLUG RG174 6' |
253 | 41.20 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
095-902-459-012CBL ASSY SMA-SMP TFLEX-405 12 |
278 | 47.54 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - |
|
|
095-902-459-018CBL ASSY SMA-SMP TFLEX-405 18 |
2,204 | 52.13 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - |
|
336314-12-0050CBL ASSY RP-SMA-UMC 1.969 |
484 | 9.08 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
135101-02-24.00CBL ASSY SMA PLUG RG174 24 |
2,534 | 19.64 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|
245102-08-06.00SMA RP BULKHEAD JACK TO MMCX RIG |
3,493 | 19.66 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

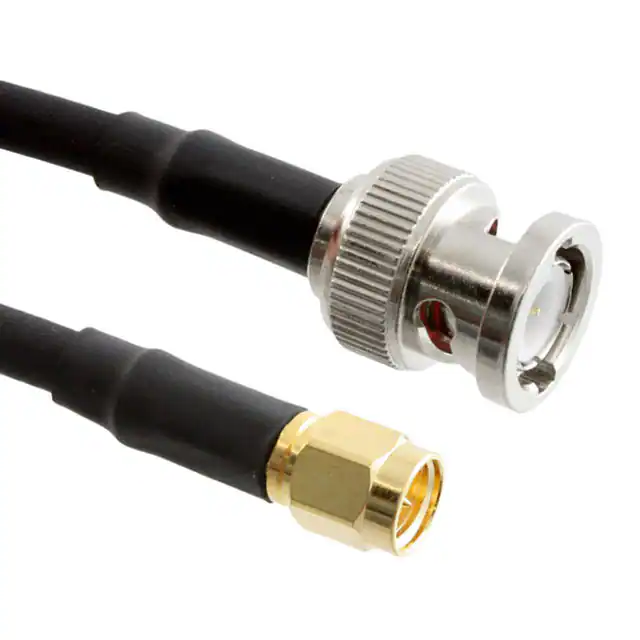

245101-04-M1.00CBL ASSY SMA-BNC PLUG RG58 3.3' |
3,512 | 19.68 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|

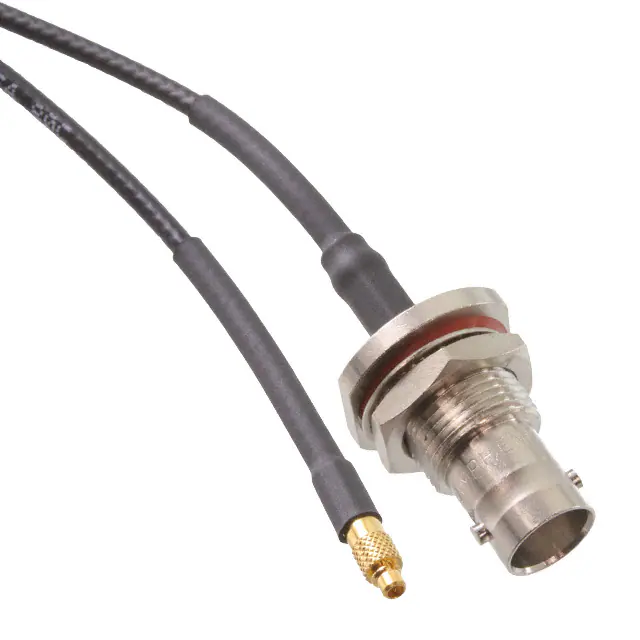

095-850-206-048BNC BULKHEAD JACK TO MMCX PLUG O |
2,033 | 19.79 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | - |
