| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

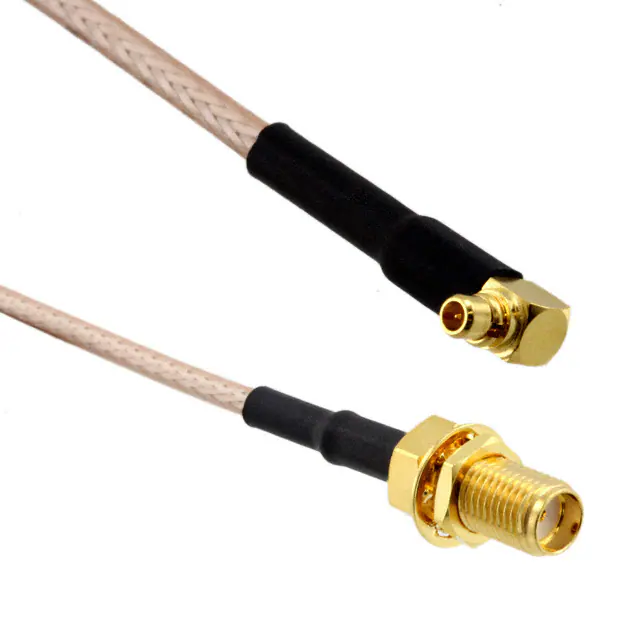

245106-01-06.00CBL ASSY SMA-MMCX RG316 6 |
200 | 19.53 |
RFQ |
Datasheet |
Bag | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|

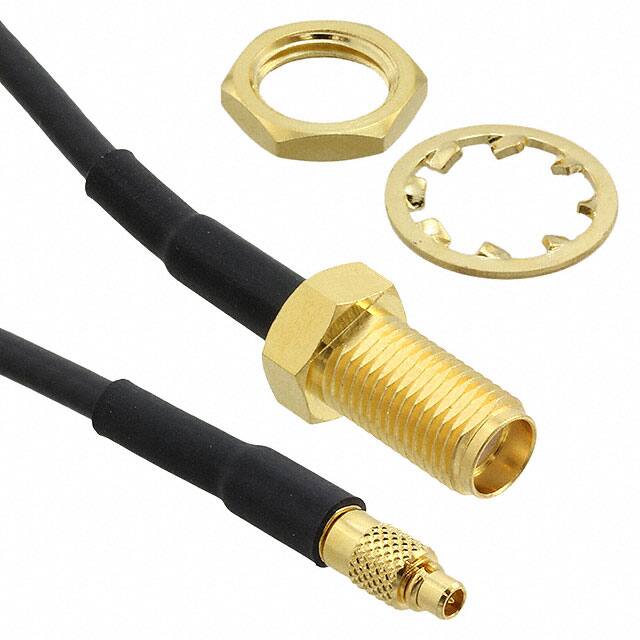

245107-02-24.00SMA BULKHEAD JACK TO MMCX STRAIG |
3,903 | 19.86 |
RFQ |
Datasheet |
Bag | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
115101-05-24.00CBL ASSY BNC PLUG RG179 24 |
2,854 | 20.06 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Copper | Shielded | - |
|

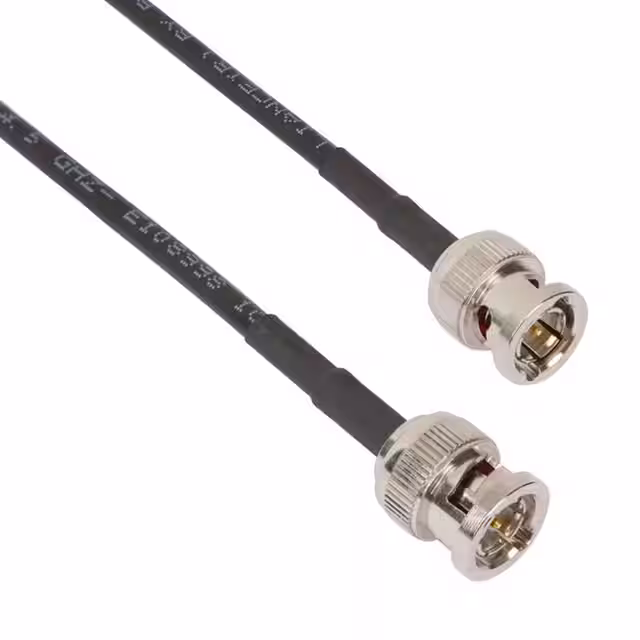

095-850-164-012CBL ASSY BNC PLUG-PLUG 12 |
139 | 20.21 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
095-902-514-036SMA STRAIGHT PLUG TO SMA STRAIGH |
249 | 20.24 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
145104-01-M0.25CBL ASSY SMB PLUG RG316 9.843 |
656 | 20.27 |
RFQ |
Datasheet |
Bag | - | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|

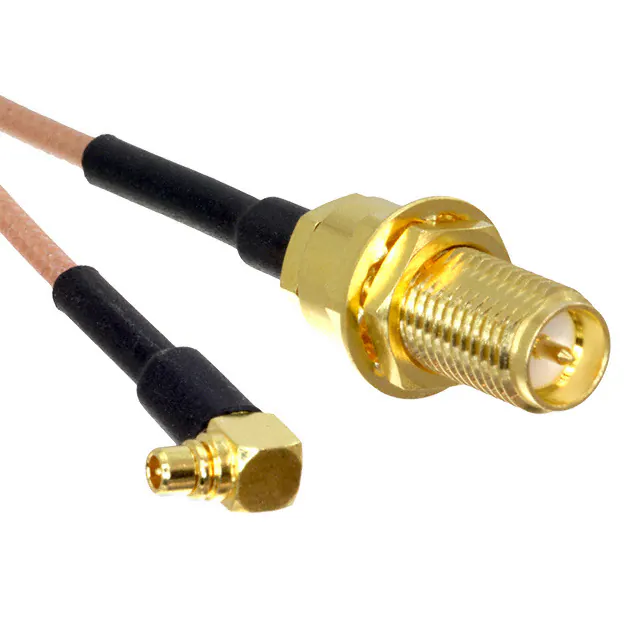

245102-08-12.00SMA RP BULKHEAD JACK TO MMCX RIG |
2,480 | 20.46 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

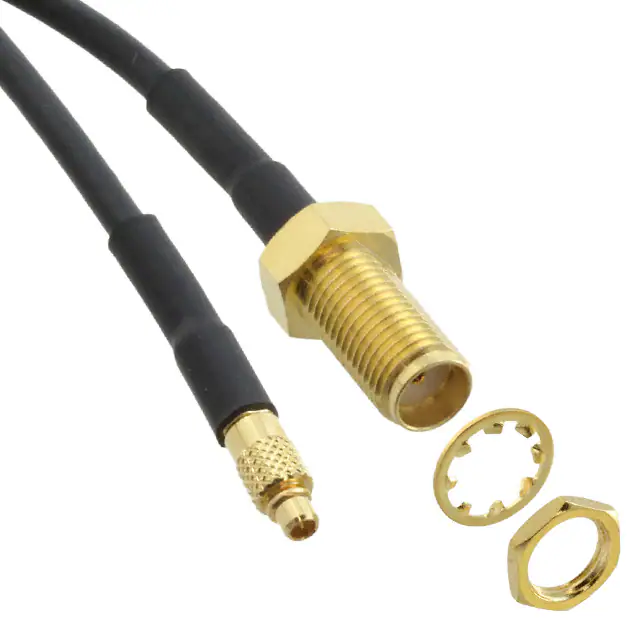

245107-02-06.00CBL ASSY SMA-MMCX RG174 6 |
202 | 20.53 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
135110-04-24.00CBL ASSY SMA JACK-PLUG RG58 24 |
124 | 20.91 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
115101-20-M2.00CBL ASSY BNC PLUG RG59 6.6' |
161 | 21.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - |
|
255104-03-06.00CBL ASSY MCX PLUG RG316 DS 6 |
381 | 21.06 |
RFQ |
Datasheet |
Bag | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
255110-01-24.00CBL ASSY MCX PLUG-SCKT RG316 24 |
135 | 21.11 |
RFQ |
Datasheet |
Box | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
336206-14-0200CBL ASSY UMCC-RPTNC 7.874 |
268 | 21.92 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
336503-12-0300CBL ASSY UMCC-MCX 11.811 |
140 | 22.03 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Copper | - | - |
|
095-820-109-05ZCABLE FAKRA-RA AMC PLUG 50MM |
112 | 22.83 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 1.969 (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C |
|
245130-01-24.00CBL ASSY SMA-MCX RG316 24 |
154 | 23.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
135104-02-M0.75CBL ASSY SMA PLUG RG174 29.53 |
176 | 23.04 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-902-517-250SMA RIGHT ANGLE BULKHEAD JACK TO |
116 | 23.21 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
135111-02-06.00CBL ASSY SMA JACK-PLUG RG174 6 |
248 | 23.64 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
|
135110-04-48.00CBL ASSY SMA JACK-PLUG RG58 4' |
2,689 | 23.82 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
